200-14MX90-6050 Powerhouse® MX Timing Pulley, 2 Teeth, 14MX Pitch


Price:
$ 3,754.94

Description

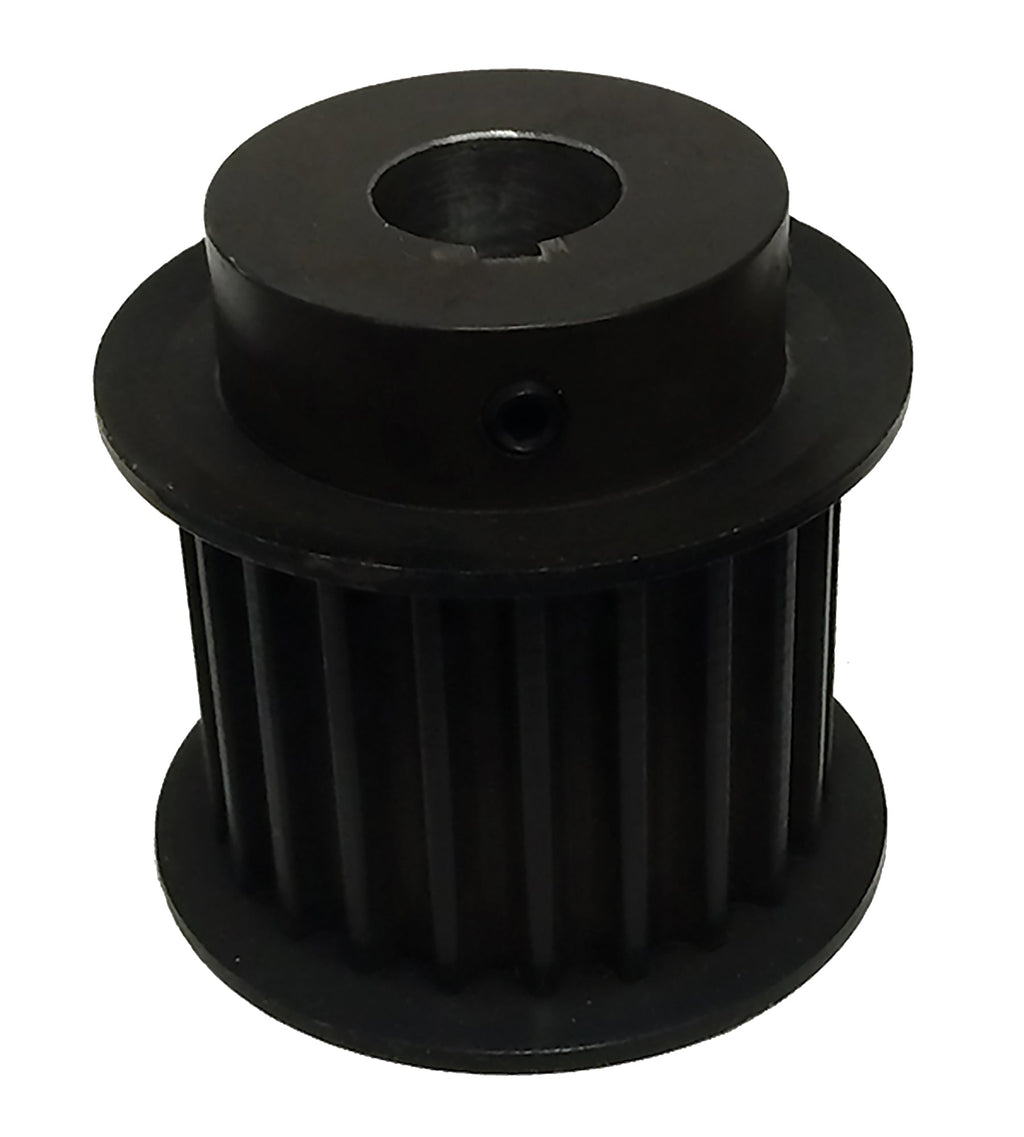

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

200-14MX90-6050 Powerhouse® MX Timing Pulley, 2 Teeth, 14MX Pitch

The 200-14MX90-6050 is a 2-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type C3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 200-14MX90-6050
Teeth 2
Pitch 14 mm MX high torque
For Belt Width 9mm
Pitch Diameter 35.0893 in
Outside Diameter 34.9793 in
Bore Accepts 6050 bushing (not included)
Face Width 4.203 in
Overall Length 4.203 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 493 lb
Country of Origin China

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 200-14MX90-6050 runs 14 mm MX high torque belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 200-14MX90-6050 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-200S-90-6050
Martin 14MX200S90-6050
Gates® 14MX-200S-90
TB Woods® 14MPC200S90
Regal Rexnord (Browning®) B14MCS-200-90
Mitsuboshi 200-14MX90-6050
Powerdrive 200-14MX90-6050
Continental (ContiTech) 200G-14M-90-6050

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 200-14MX90-6050 pulley?

14 mm MX high torque timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 200-14MX90-6050 replace the Dodge 14MX-200S-90-6050?

Yes. Published interchange data crosses the 200-14MX90-6050 directly to the Dodge 14MX-200S-90-6050, as well as Martin 14MX200S90-6050, Gates 14MX-200S-90, TB Woods 14MPC200S90. Verify dimensions and bore before ordering.

Does the 200-14MX90-6050 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 200-14MX90-6050?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
