20H150-6FS8 Timing Pulley, 2 Teeth, H Pitch


Price:
$ 74.11

Description

20H150-6FS8 Timing Pulley, 2 Teeth, H Pitch

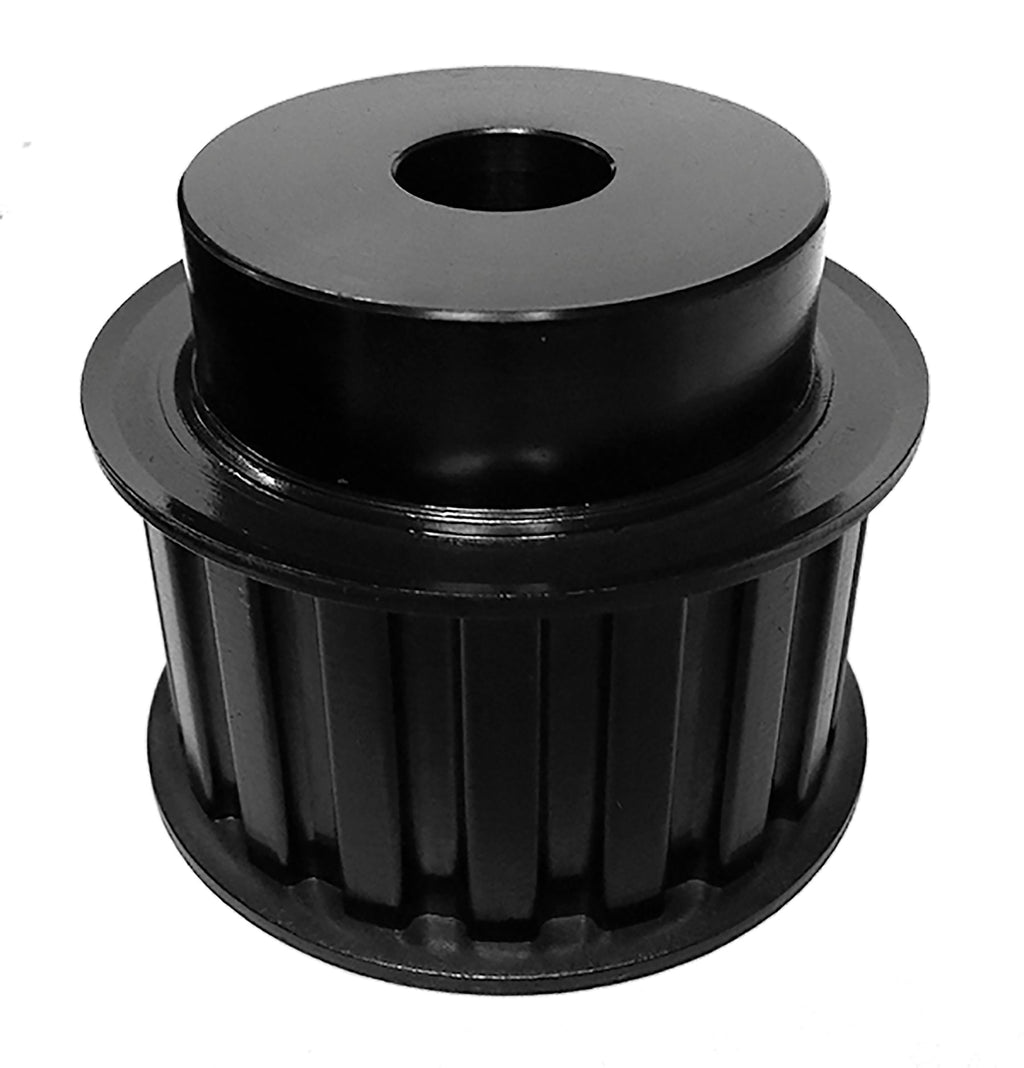

The 20H150-6FS8 is a 2-tooth H (0.500 in trapezoidal) timing pulley with a 3/4 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 20H150-6FS8
Teeth 2
Pitch H (0.500 in trapezoidal)
For Belt Width 1.5 in
Pitch Diameter 3.1831 in
Outside Diameter 3.1291 in
Flange Diameter 3.42 in
Bore 3/4 in minimum plain bore
Face Width 1.812 in
Overall Length 2.625 in
Hub Diameter 2.5 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 4.268 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 20H150-6FS8 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 20H150-6FS8 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 20H150-MPB
Martin 20H150
Regal Rexnord (Browning®) 20HB150
Mitsuboshi 20H150-6FS8
McMaster-Carr 6495K98
Grainger 809V59
Powerdrive 20H150-6FS8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 20H150-6FS8 pulley?

H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 20H150-6FS8 replace the Dodge 20H150-MPB?

Yes. Published interchange data crosses the 20H150-6FS8 directly to the Dodge 20H150-MPB, as well as Martin 20H150, Regal Rexnord 20HB150, Mitsuboshi 20H150-6FS8. Verify dimensions and bore before ordering.

Does the 20H150-6FS8 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 20H150-6FS8?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
