Description

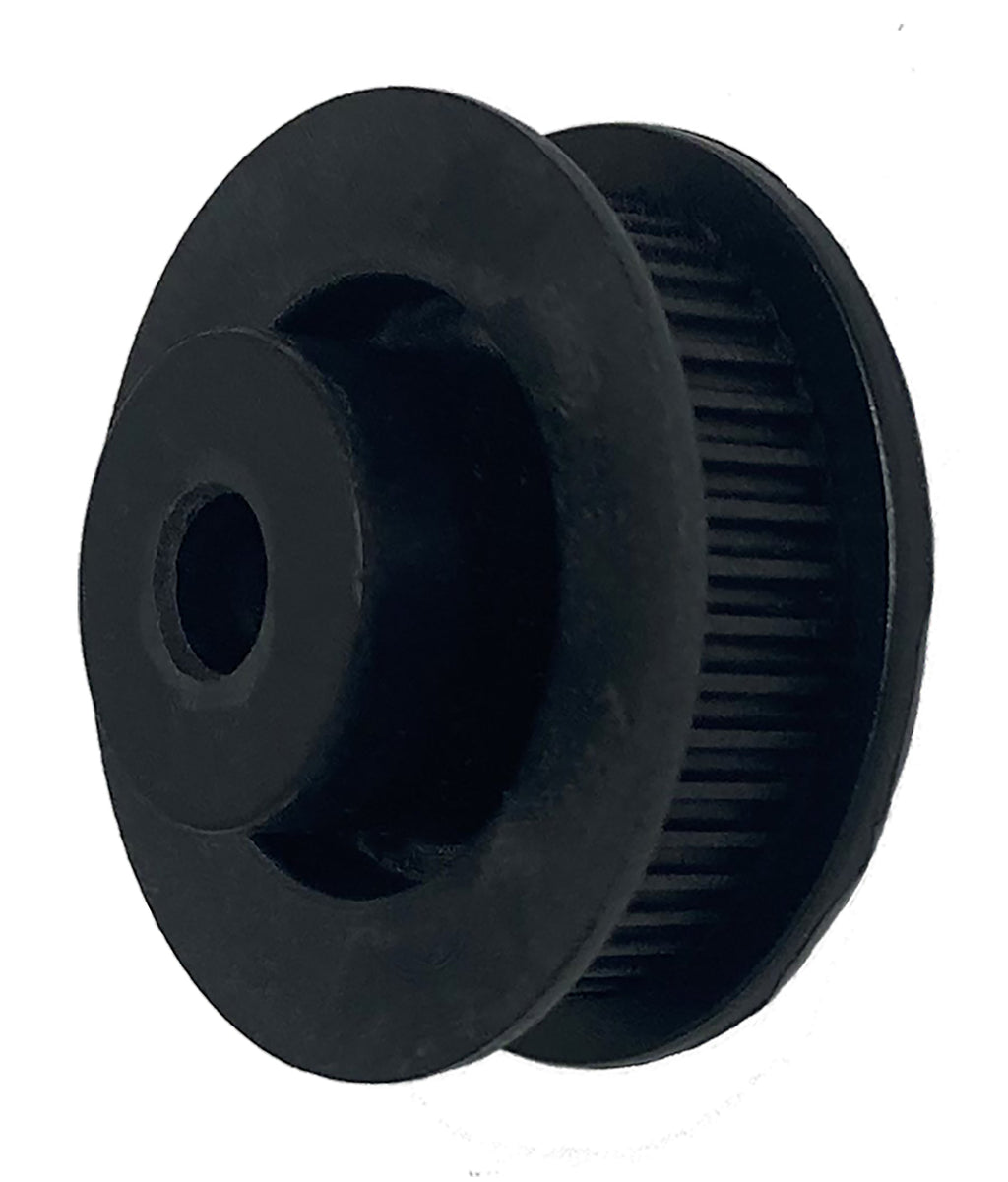

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.
216-14P170-6050 Powerhouse® Timing Pulley, 216 Teeth, 14P Pitch
The 216-14P170-6050 is a 216-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 216-14P170-6050 |
| Teeth | 216 |
| Pitch | 14 mm Powerhouse® curvilinear |
| For Belt Width | 17mm |
| Pitch Diameter | 37.8964 in |
| Outside Diameter | 37.7864 in |
| Bore | Accepts 6050 bushing (not included) |
| Face Width | 7.38 in |
| Overall Length | 7.38 in |
| Construction | Taper Lock Hub |
| Material | Cast Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 3 lb |
| Country of Origin | China |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 216-14P170-6050 runs 14 mm Powerhouse® curvilinear belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 216-14P170-6050 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P216-14M-170-6050 |
| Martin | P21614M170-6050 |
| Gates® | P216-14MGT-170 |
| Regal Rexnord (Browning®) | B21614M170TL |
| Ametric | 14M216TL170.5050 |
| Powerdrive | 216-14P170-6050 |
| Continental (ContiTech) | P216-14M-170-6050 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 216-14P170-6050 pulley?
14 mm Powerhouse® curvilinear timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 216-14P170-6050 replace the Dodge P216-14M-170-6050?
Yes. Published interchange data crosses the 216-14P170-6050 directly to the Dodge P216-14M-170-6050, as well as Martin P21614M170-6050, Gates P216-14MGT-170, Regal Rexnord B21614M170TL. Verify dimensions and bore before ordering.
Does the 216-14P170-6050 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
