Description

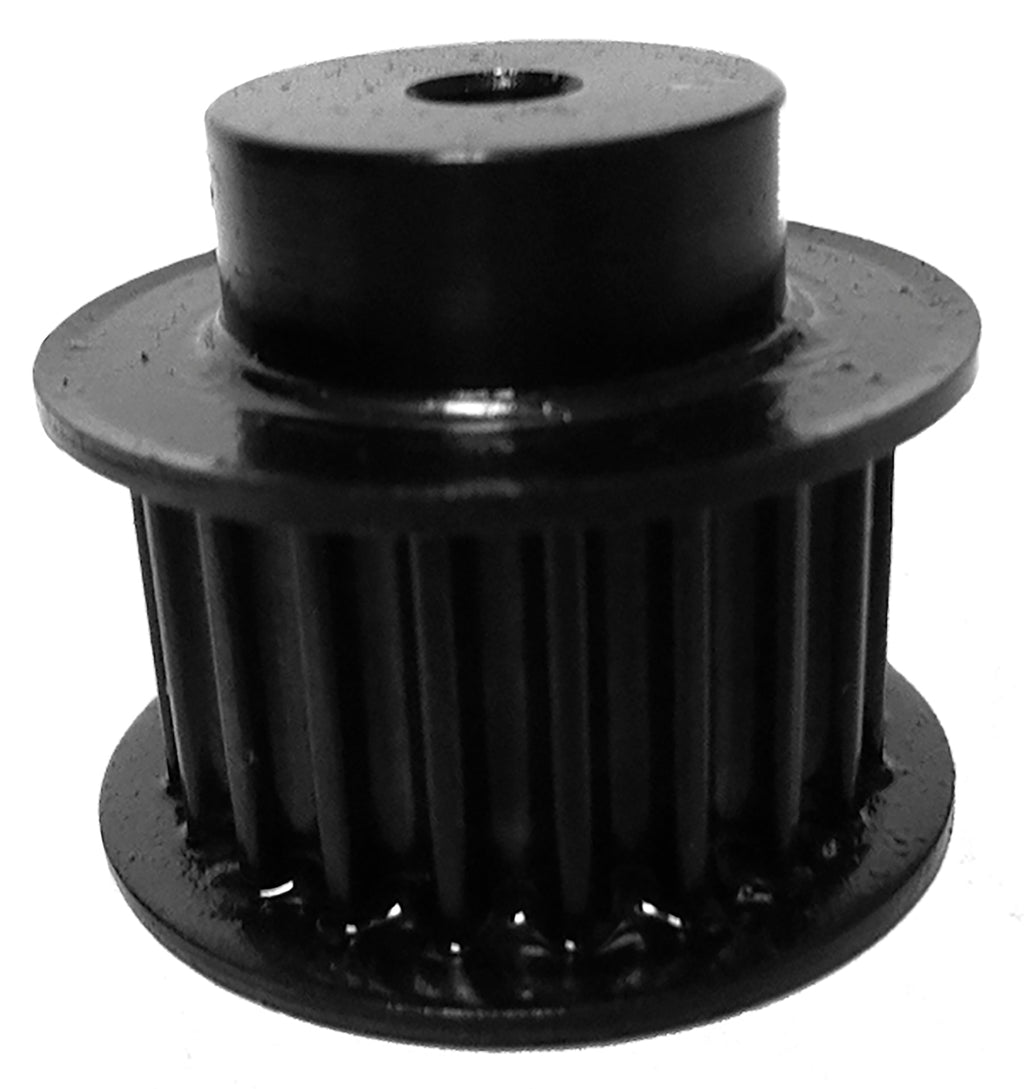

22-5MX15-6FS5 Timing Pulley, 22 Teeth, 5MX Pitch
The 22-5MX15-6FS5 is a 22-tooth 5 mm MX high torque timing pulley with a 3/8 in minimum plain bore, machined from steel with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 22-5MX15-6FS5 |
| Teeth | 22 |
| Pitch | 5 mm MX high torque |
| For Belt Width | 15mm |
| Pitch Diameter | 1.3785 in |
| Outside Diameter | 1.3335 in |
| Flange Diameter | 1.656 in |
| Bore | 3/8 in minimum plain bore |
| Face Width | 0.89 in |
| Overall Length | 1.28 in |
| Hub Diameter | 0.94 in |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 0.759 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 22-5MX15-6FS5 runs 5 mm MX high torque belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
Match the specifications above, including size, pitch or section, and bore, to cross-reference this part against other manufacturers.
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 22-5MX15-6FS5 pulley?
5 mm MX high torque timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 22-5MX15-6FS5 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
