22-8M30-6FS6 Powerhouse® HTD Timing Pulley, 22 Teeth, 8M Pitch


Price:
$ 65.13

Description

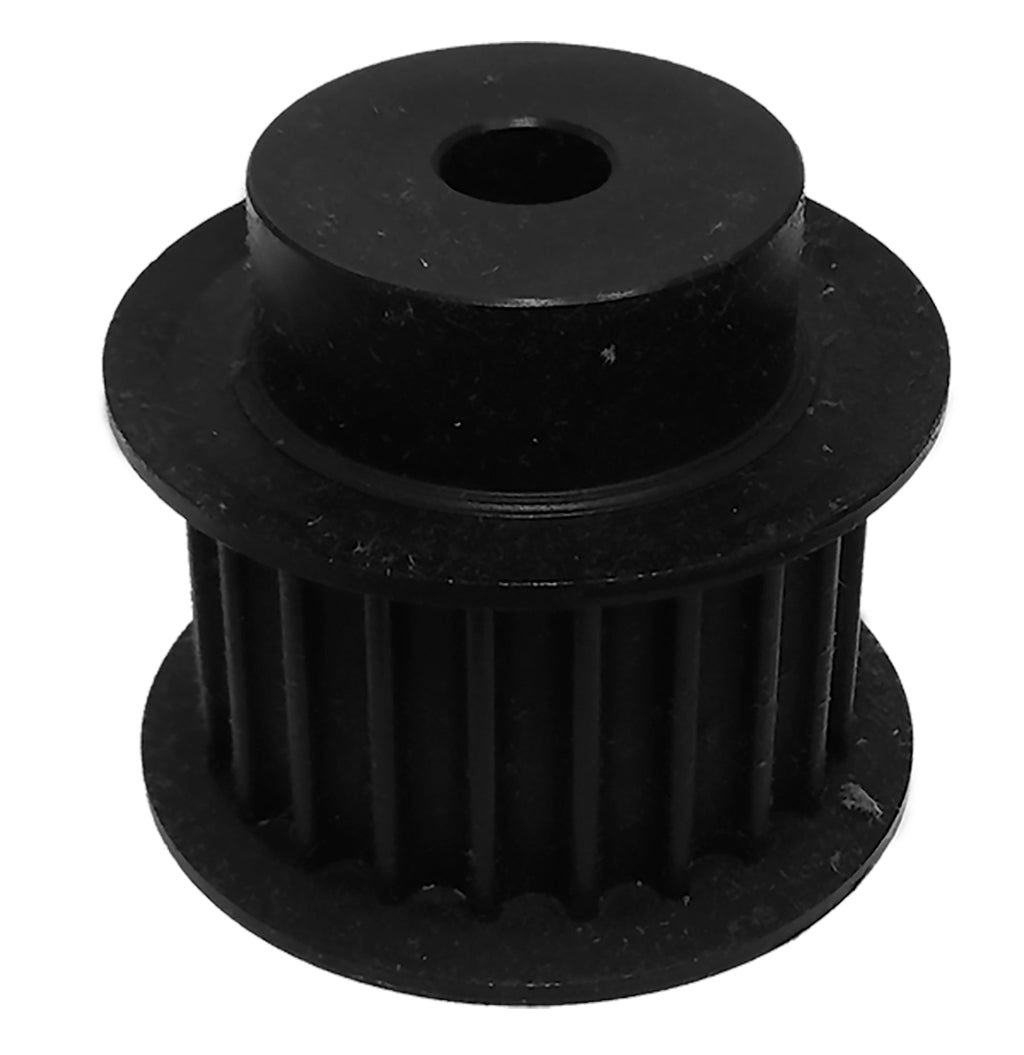

22-8M30-6FS6 Powerhouse® HTD Timing Pulley, 22 Teeth, 8M Pitch

The 22-8M30-6FS6 is a 22-tooth 8 mm HTD® compatible timing pulley with a 1/2 in minimum plain bore, machined from steel with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22-8M30-6FS6
Teeth 22
Pitch 8 mm HTD® compatible
For Belt Width 3mm
Pitch Diameter 2.2056 in
Outside Diameter 2.1536 in
Flange Diameter 2.559 in
Bore 1/2 in minimum plain bore
Face Width 1.5 in
Overall Length 2.125 in
Hub Diameter 1.625 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.7 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 22-8M30-6FS6 runs 8 mm HTD® compatible belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22-8M30-6FS6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P22-8M-30-MPB
Martin P228M30-MPB
TB Woods® P228M30
Regal Rexnord (Browning®) B228M30MPB
Jason Industrial P228M30MPB
Masterdrive P22-8M-30-PB
Ametric 8M22X30
McMaster-Carr 6497K211
Grainger 809PZ6
Powerdrive 22-8M30-6FS6

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 22-8M30-6FS6 pulley?

8 mm HTD® compatible timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 22-8M30-6FS6 replace the Dodge P22-8M-30-MPB?

Yes. Published interchange data crosses the 22-8M30-6FS6 directly to the Dodge P22-8M-30-MPB, as well as Martin P228M30-MPB, TB Woods P228M30, Regal Rexnord B228M30MPB. Verify dimensions and bore before ordering.

Does the 22-8M30-6FS6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 22-8M30-6FS6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
