22-8MXF36X1 Powerhouse® MX Timing Pulley, 22 Teeth, 8MX Pitch, 1 in Bore


Price:
$ 176.68

Description

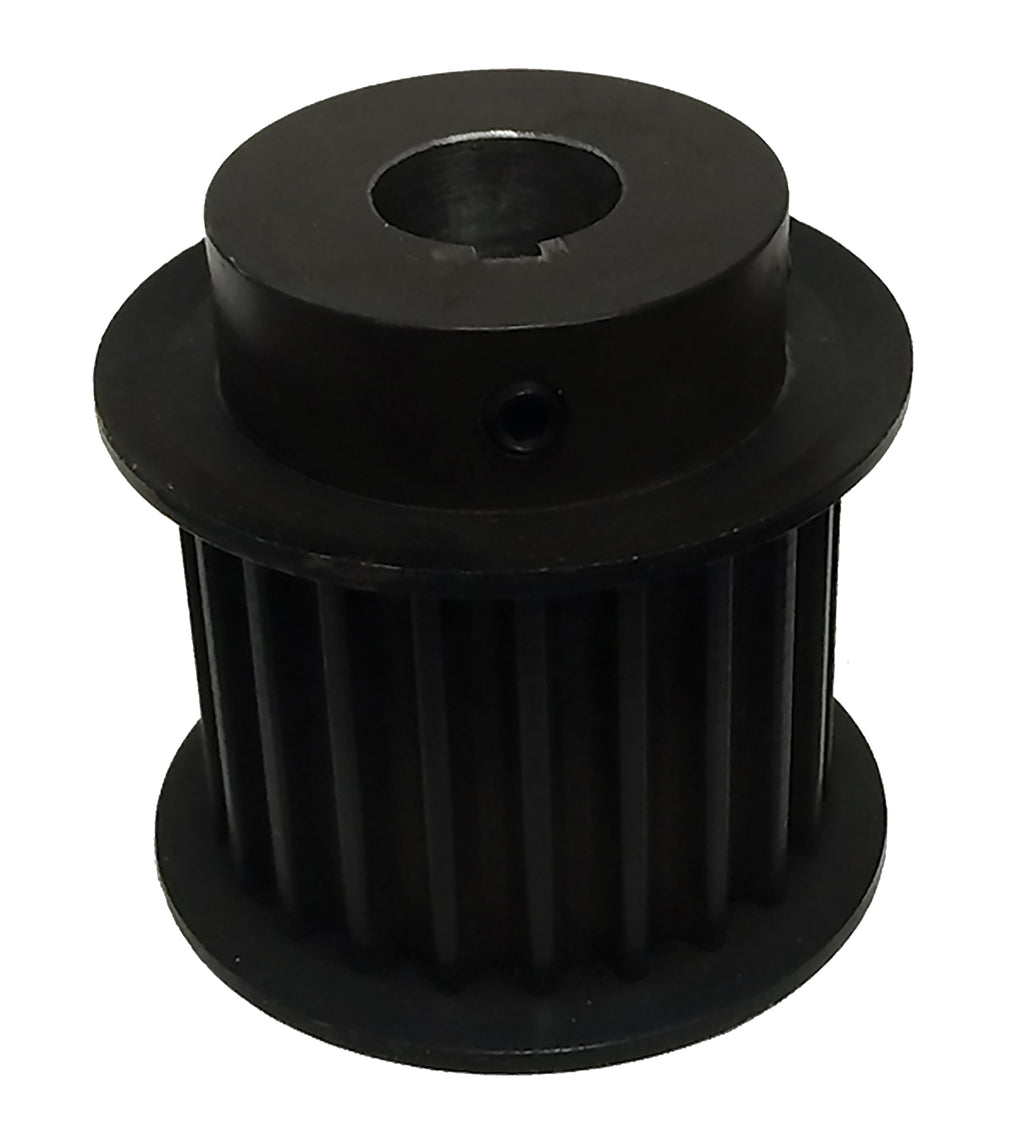

22-8MXF36X1 Powerhouse® MX Timing Pulley, 22 Teeth, 8MX Pitch, 1 in Bore

The 22-8MXF36X1 is a 22-tooth 8 mm MX high torque timing pulley with a 1 in finished bore, machined from steel with a black oxide finish, built for 36mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22-8MXF36X1
Teeth 22
Pitch 8 mm MX high torque
For Belt Width 36mm
Pitch Diameter 2.2056 in
Outside Diameter 2.1426 in
Flange Diameter 2.56 in
Bore 1 in finished bore
Face Width 1.859 in
Overall Length 2.438 in
Construction Standard Hub
Set Screws 2 x 5/16-18
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.974 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 22-8MXF36X1 runs 8 mm MX high torque belts in 36mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22-8MXF36X1 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Powerdrive 22-8MXF36X1

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 22-8MXF36X1 pulley?

8 mm MX high torque timing belts in 36mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 22-8MXF36X1 replace the Powerdrive 22-8MXF36X1?

Yes. Published interchange data crosses the 22-8MXF36X1 directly to the Powerdrive 22-8MXF36X1. Verify dimensions and bore before ordering.

Does the 22-8MXF36X1 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 22-8MXF36X1?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
