22H200-6FS10 Timing Pulley, 22 Teeth, H Pitch


Price:
$ 104.66

Description

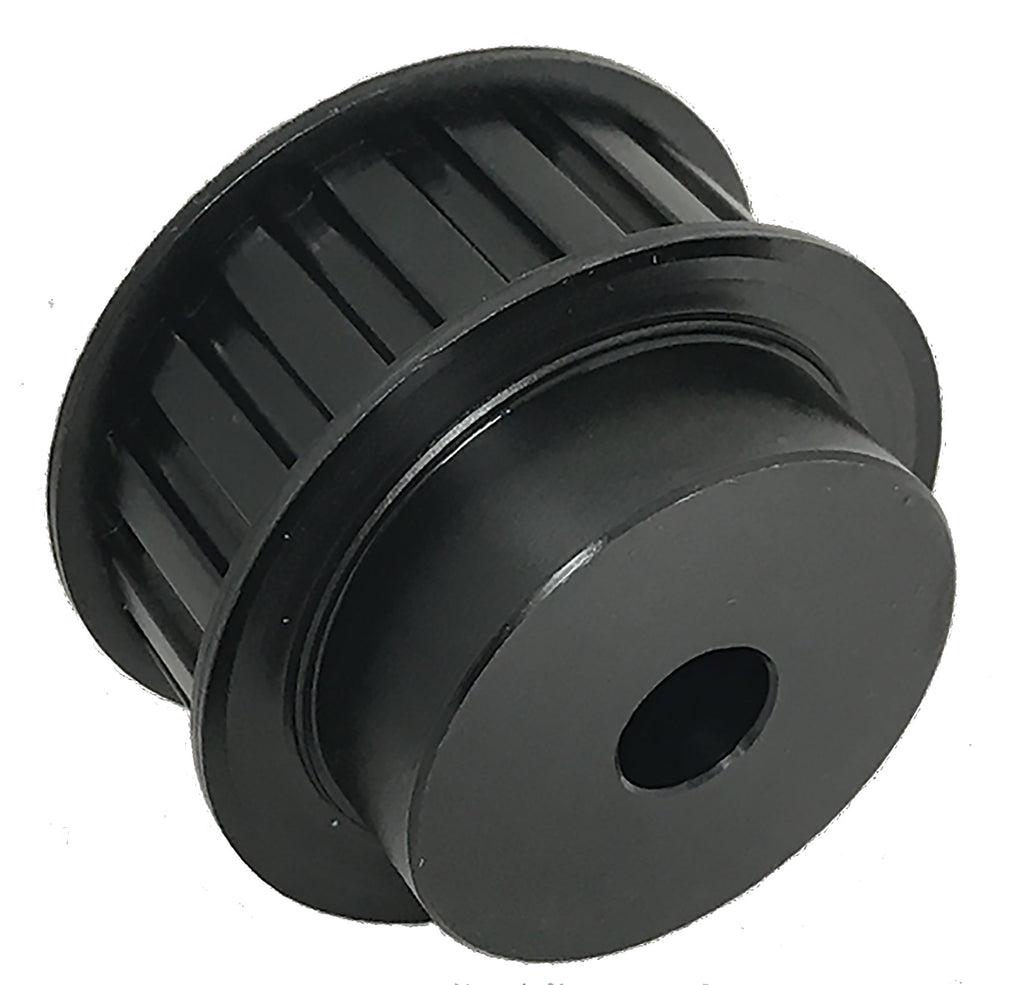

22H200-6FS10 Timing Pulley, 22 Teeth, H Pitch

The 22H200-6FS10 is a 22-tooth H (0.500 in trapezoidal) timing pulley with a 1 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22H200-6FS10
Teeth 22
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 3.5014 in
Outside Diameter 3.4474 in
Flange Diameter 3.735 in
Bore 1 in minimum plain bore
Face Width 2.344 in
Overall Length 3.281 in
Hub Diameter 2.75 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 6.27 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 22H200-6FS10 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22H200-6FS10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 22H200-MPB
Martin 22H200
Regal Rexnord (Browning®) 22HB200
Mitsuboshi 22H200-6FS10
McMaster-Carr 6495L169
Grainger 809V74
Powerdrive 22H200-6FS10

Always verify dimensions and bore size before substituting part numbers across manufacturers.
