22LG050 Timing Pulley, 22 Teeth, L Pitch


Price:
$ 46.97

Description

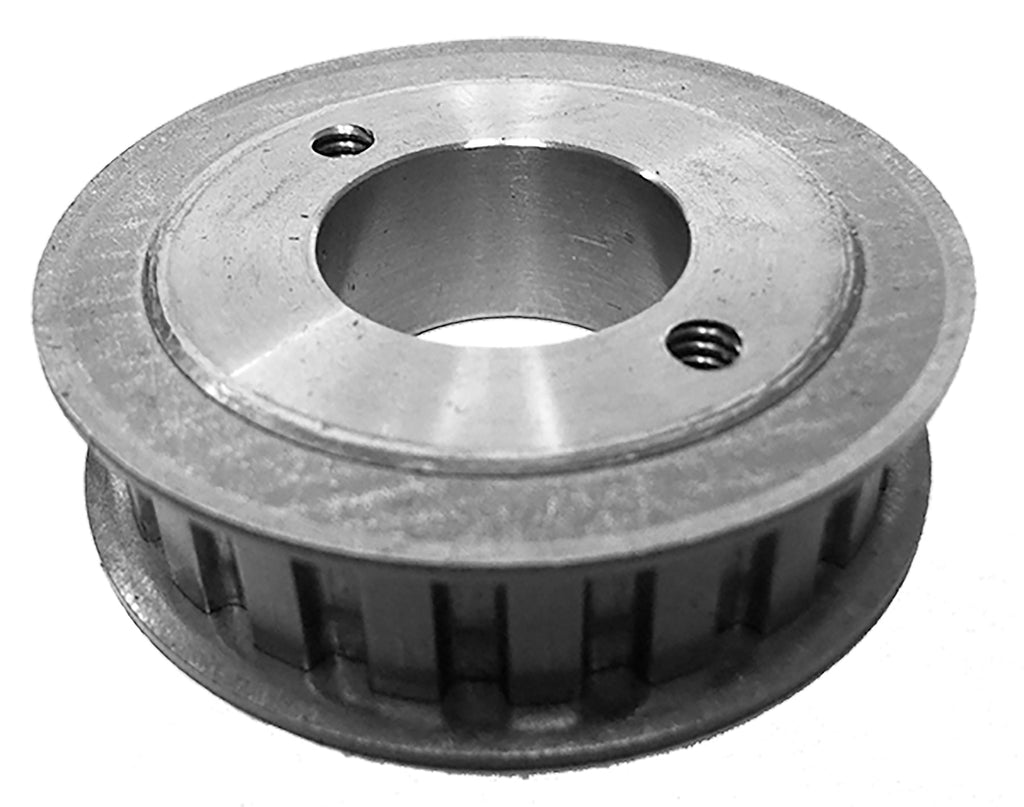

22LG050 Timing Pulley, 22 Teeth, L Pitch

The 22LG050 is a 22-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel, built for 0.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 4 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22LG050
Teeth 22
Pitch L (0.375 in trapezoidal)
For Belt Width 0.5 in
Pitch Diameter 2.6261 in
Outside Diameter 2.5961 in
Flange Diameter 2.875 in
Bore Accepts G bushing (not included)
Face Width 0.75 in
Overall Length 1.375 in
Construction Split Taper Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Weight 0.908 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 22LG050 runs L (0.375 in trapezoidal) belts in 0.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22LG050 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 22LG050
Grainger 809U45
Grainger 6FFV8
Powerdrive 22LG050

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 22LG050 pulley?

L (0.375 in trapezoidal) timing belts in 0.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 22LG050 replace the Regal Rexnord 22LG050?

Yes. Published interchange data crosses the 22LG050 directly to the Regal Rexnord 22LG050, as well as Grainger 809U45, Grainger 6FFV8, Powerdrive 22LG050. Verify dimensions and bore before ordering.

Does the 22LG050 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 22LG050?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
