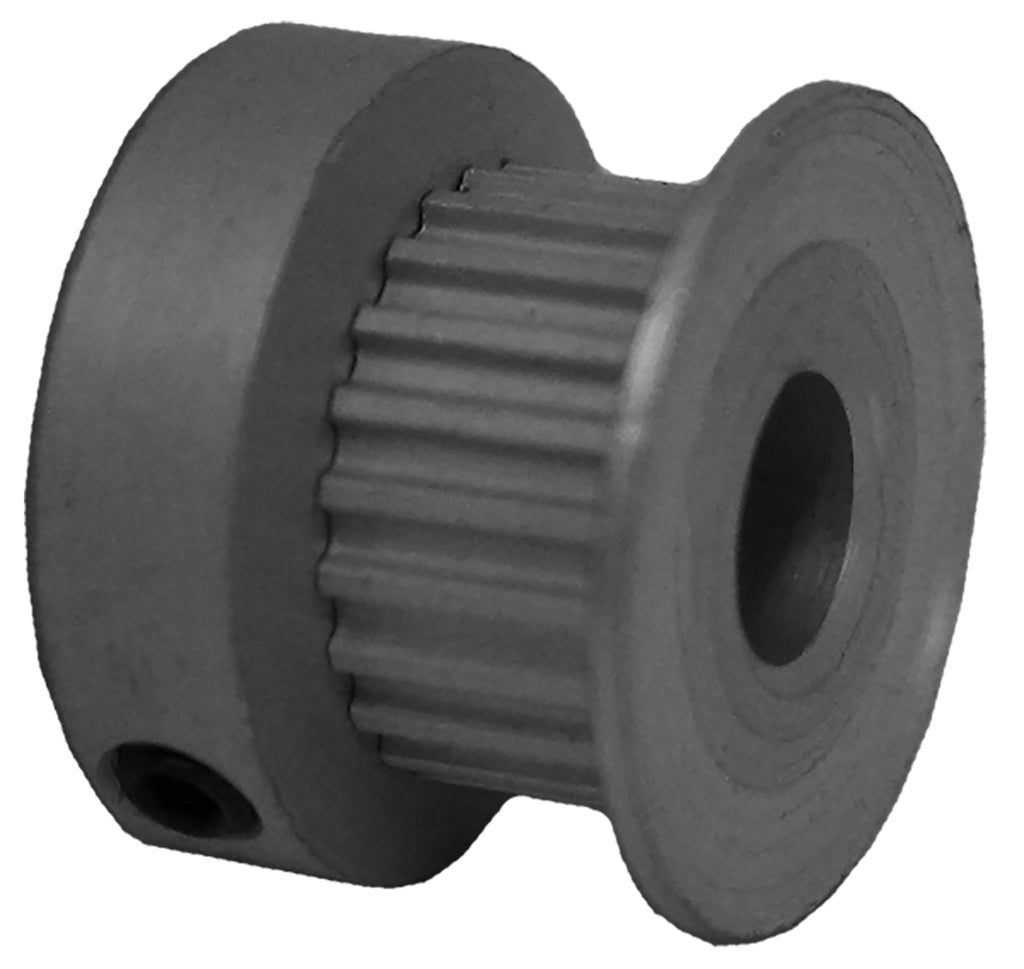

22MP025-6CA3 Timing Pulley, 22 Teeth, MXL Pitch, 1/4 in Bore


Price:
$ 12.74

Description

22MP025-6CA3 Timing Pulley, 22 Teeth, MXL Pitch, 1/4 in Bore

The 22MP025-6CA3 is a 22-tooth MXL (0.080 in trapezoidal) timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 0.25 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6C pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22MP025-6CA3
Teeth 22
Pitch MXL (0.080 in trapezoidal)
For Belt Width 0.25 in
Pitch Diameter 0.5602 in
Outside Diameter 0.5402 in
Flange Diameter 0.74 in
Bore 1/4 in finished bore
Face Width 0.337 in
Overall Length 0.563 in
Hub Diameter 0.74 in
Construction Standard Hub Serves as 2nd Flange
Set Screws 2 x 6-40
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0165 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 22MP025-6CA3 runs MXL (0.080 in trapezoidal) belts in 0.25 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22MP025-6CA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 22-MP025-6CA3
Stock Drive Products (SDP/SI) A 6A16-022DF2508
Neuman 22MP-025-1/4-6FCA
York 22MXL025-6A X 1/4
McMaster-Carr 1375K44
Grainger 809V76
Powerdrive 22MP025-6CA3

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 22MP025-6CA3 pulley?

MXL (0.080 in trapezoidal) timing belts in 0.25 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 22MP025-6CA3 replace the Mitsuboshi 22-MP025-6CA3?

Yes. Published interchange data crosses the 22MP025-6CA3 directly to the Mitsuboshi 22-MP025-6CA3, as well as Stock Drive Products A 6A16-022DF2508, Neuman 22MP-025-1/4-6FCA, York 22MXL025-6A X 1/4. Verify dimensions and bore before ordering.

Does the 22MP025-6CA3 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 22MP025-6CA3?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
