22XL025-6FA3 Timing Pulley, 22 Teeth, XL Pitch, 1/4 in Bore


Price:
$ 15.55

Description

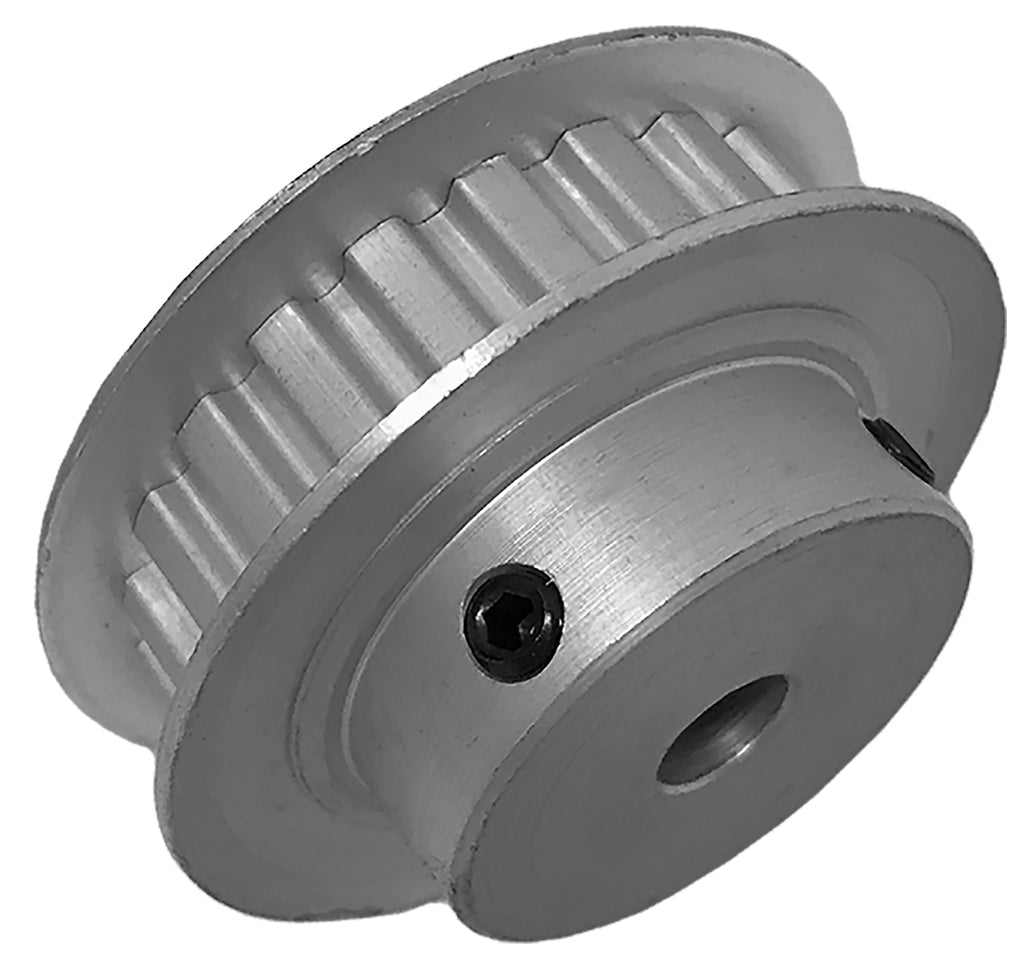

22XL025-6FA3 Timing Pulley, 22 Teeth, XL Pitch, 1/4 in Bore

The 22XL025-6FA3 is a 22-tooth XL (0.200 in trapezoidal) timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 0.25 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22XL025-6FA3
Teeth 22
Pitch XL (0.200 in trapezoidal)
For Belt Width 0.25 in
Pitch Diameter 1.4006 in
Outside Diameter 1.3806 in
Flange Diameter 1.625 in
Bore 1/4 in finished bore
Face Width 0.438 in
Overall Length 0.75 in
Hub Diameter 1 in
Construction Standard Hub
Set Screws 2 x 8-32
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0913 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 22XL025-6FA3 runs XL (0.200 in trapezoidal) belts in 0.25 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22XL025-6FA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Gates® PB22XL025
Mitsuboshi 22XL025-6FA3
Stock Drive Products (SDP/SI) A 6A 3-22DF02508
Neuman 22XL025 X 1/4 6F
York 22XL025-1A X 1/4
On Drives 6495K721
W.M. Berg TP20A4W4-22
Powerdrive 22XL025-6FA3

Always verify dimensions and bore size before substituting part numbers across manufacturers.
