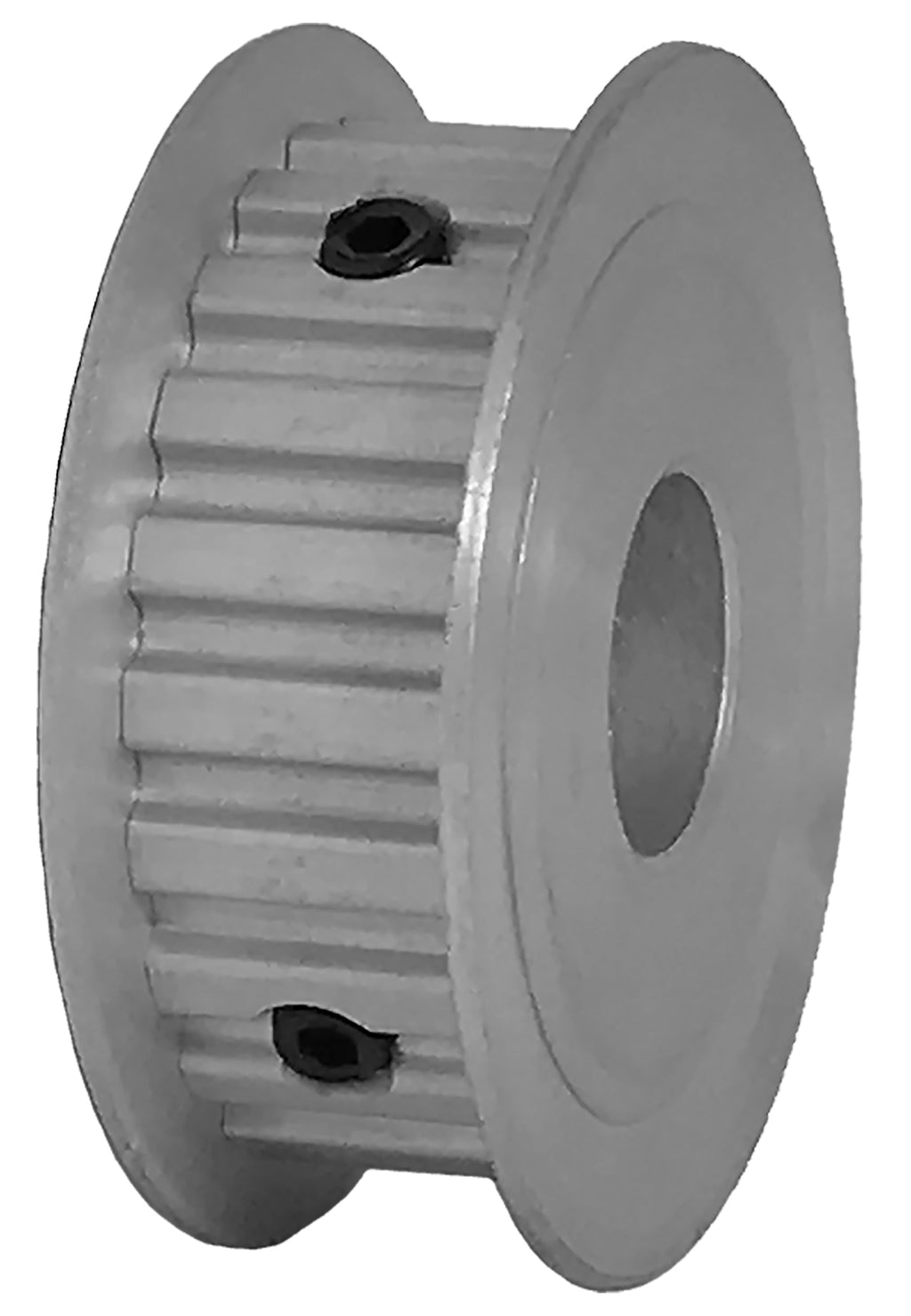

22XL037-3FA6 Timing Pulley, 22 Teeth, XL Pitch, 1/2 in Bore


Price:
$ 23.75

Description

22XL037-3FA6 Timing Pulley, 22 Teeth, XL Pitch, 1/2 in Bore

The 22XL037-3FA6 is a 22-tooth XL (0.200 in trapezoidal) timing pulley with a 1/2 in finished bore, machined from aluminum with a clear anodized finish, built for 0.375 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 22XL037-3FA6
Teeth 22
Pitch XL (0.200 in trapezoidal)
For Belt Width 0.375 in
Pitch Diameter 1.4006 in
Outside Diameter 1.3806 in
Flange Diameter 1.625 in
Bore 1/2 in finished bore
Face Width 0.563 in
Overall Length 0.563 in
Construction No Hub
Set Screws 2 x 8-32
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0751 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 22XL037-3FA6 runs XL (0.200 in trapezoidal) belts in 0.375 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 22XL037-3FA6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 22XL037-3FA6
York 22XL037-5A X 1/2
Powerdrive 22XL037-3FA6

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 22XL037-3FA6 pulley?

XL (0.200 in trapezoidal) timing belts in 0.375 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 22XL037-3FA6 replace the Mitsuboshi 22XL037-3FA6?

Yes. Published interchange data crosses the 22XL037-3FA6 directly to the Mitsuboshi 22XL037-3FA6, as well as York 22XL037-5A X 1/2, Powerdrive 22XL037-3FA6. Verify dimensions and bore before ordering.

Does the 22XL037-3FA6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 22XL037-3FA6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
