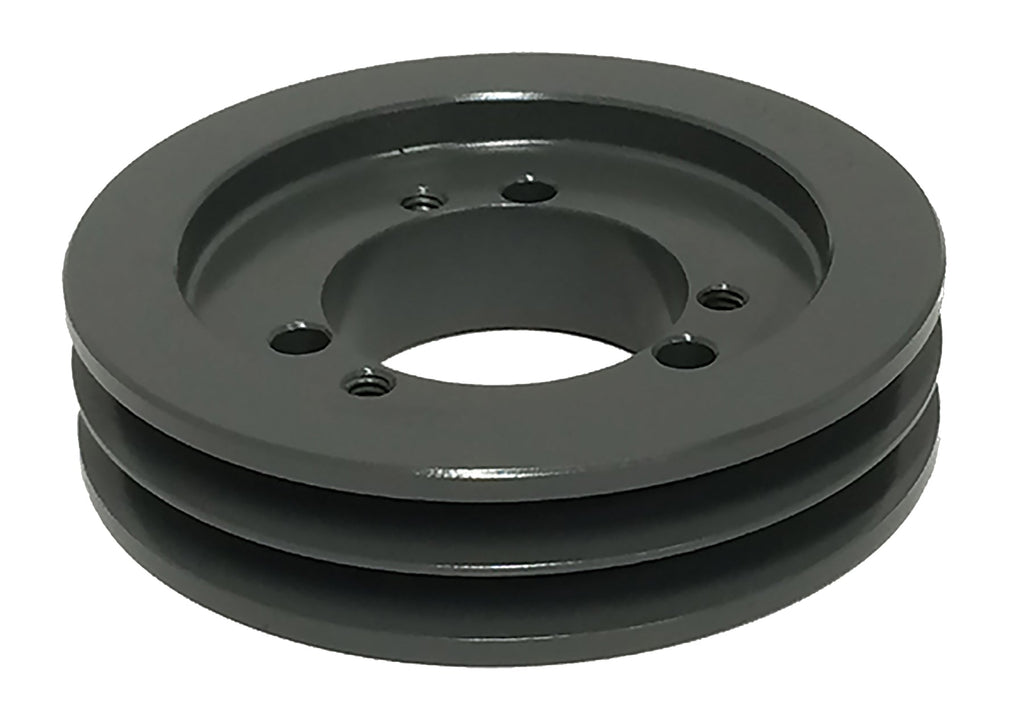

23V220JA V-Belt Sheave, 2 Grooves, 3V Section, 2.2 in OD, JA Bushing


Price:
$ 37.67

Description

23V220JA V-Belt Sheave, 2 Grooves, 3V Section, 2.2 in OD, JA Bushing

The 23V220JA is a 2-groove 3V section narrow wedge V-belt sheave with a 2.2 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard JA QD® style bushing, sold separately, sized to your shaft. It runs 3V and 3VX narrow wedge V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 23V220JA
Belt Section 3V
Grooves 2
Outside Diameter 2.2 in
Pitch Diameter 2.15 in
Face Width 1.094 in
Bushing JA series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 0.6 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 23V220JA interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D2-3V22
Martin 2 3V 220 JA
Gates® QD2/3V2.20
TB Woods® 3V222
Regal Rexnord (Browning®) 23V220JA
Carlisle 2-3V-220-JA
Masterdrive 2/3V220JA
Maurey 23V2.2-JA
Jason Industrial 2/3V220JA
Optibelt QD 3V220/2 JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 23V220JA?

3V and 3VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 23V220JA replace the Dodge D2-3V22 sheave?

Yes. Published interchange data crosses the 23V220JA directly to the Dodge D2-3V22, as well as Martin 2 3V 220 JA, Gates QD2/3V2.20, TB Woods 3V222. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 23V220JA use?

A JA series QD style bushing, sold separately. JA is an industry-standard bushing size, so any manufacturer's standard JA bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 23V220JA ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 23V220JA?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
