24-3M09M6FA6 Powerhouse® HTD Timing Pulley, 24 Teeth, 3M Pitch, 6 mm Bore


Price:
$ 14.63

Description

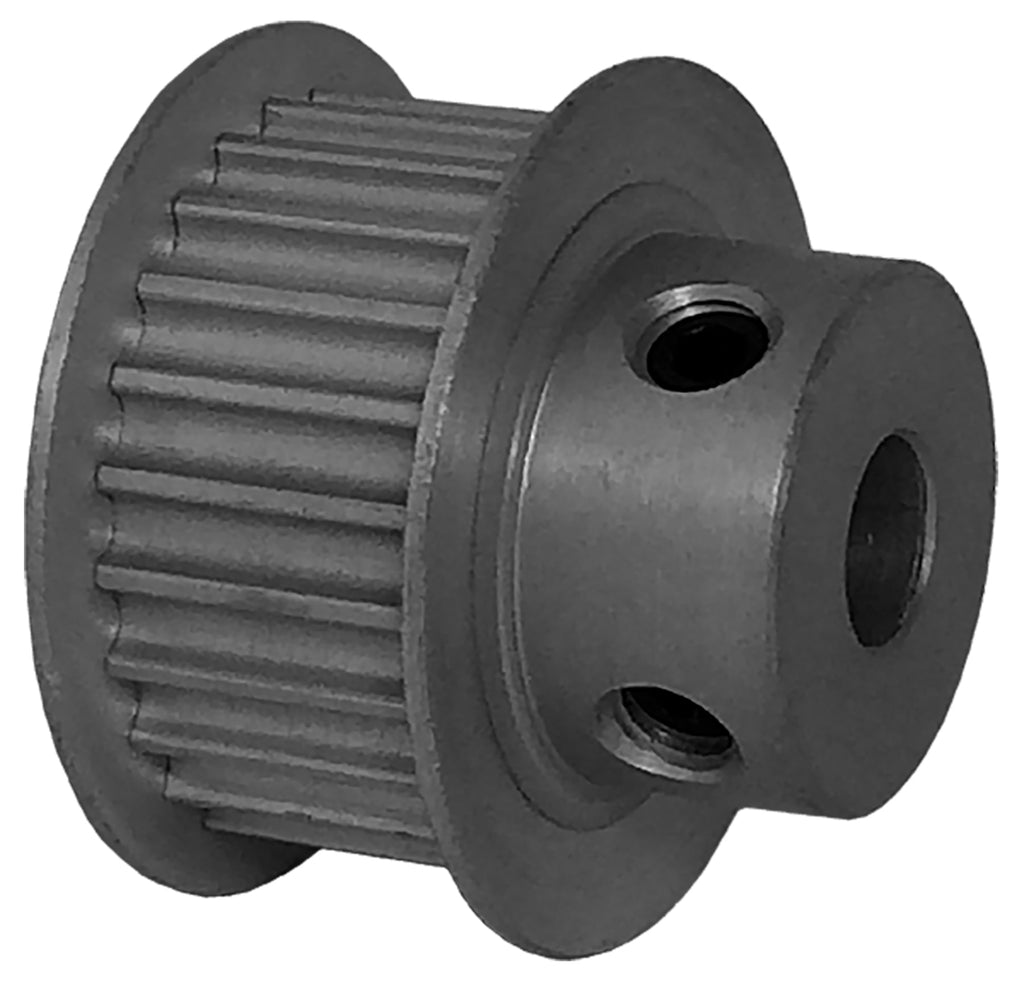

24-3M09M6FA6 Powerhouse® HTD Timing Pulley, 24 Teeth, 3M Pitch, 6 mm Bore

The 24-3M09M6FA6 is a 24-tooth 3 mm HTD® compatible timing pulley with a 6 mm finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 24-3M09M6FA6
Teeth 24
Pitch 3 mm HTD® compatible
For Belt Width 9mm
Pitch Diameter 0.9023 in
Outside Diameter 0.8723 in
Bore 6 mm finished bore
Construction Standard Hub
Set Screws 2 x M4
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0366 lb
Country of Origin India

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 24-3M09M6FA6 runs 3 mm HTD® compatible belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 24-3M09M6FA6 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A23M024DF0906
W.M. Berg TP3A6W9M-24
Powerdrive 24-3M09M6FA6
Continental (ContiTech) 24-3M09M6FA6 AL HTD SPROCKET QTE

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 24-3M09M6FA6 pulley?

3 mm HTD® compatible timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 24-3M09M6FA6 replace the Stock Drive Products A 6A23M024DF0906?

Yes. Published interchange data crosses the 24-3M09M6FA6 directly to the Stock Drive Products A 6A23M024DF0906, as well as W.M. Berg TP3A6W9M-24, Powerdrive 24-3M09M6FA6, Continental 24-3M09M6FA6 AL HTD SPROCKET QTE. Verify dimensions and bore before ordering.

Does the 24-3M09M6FA6 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 24-3M09M6FA6?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
