Description

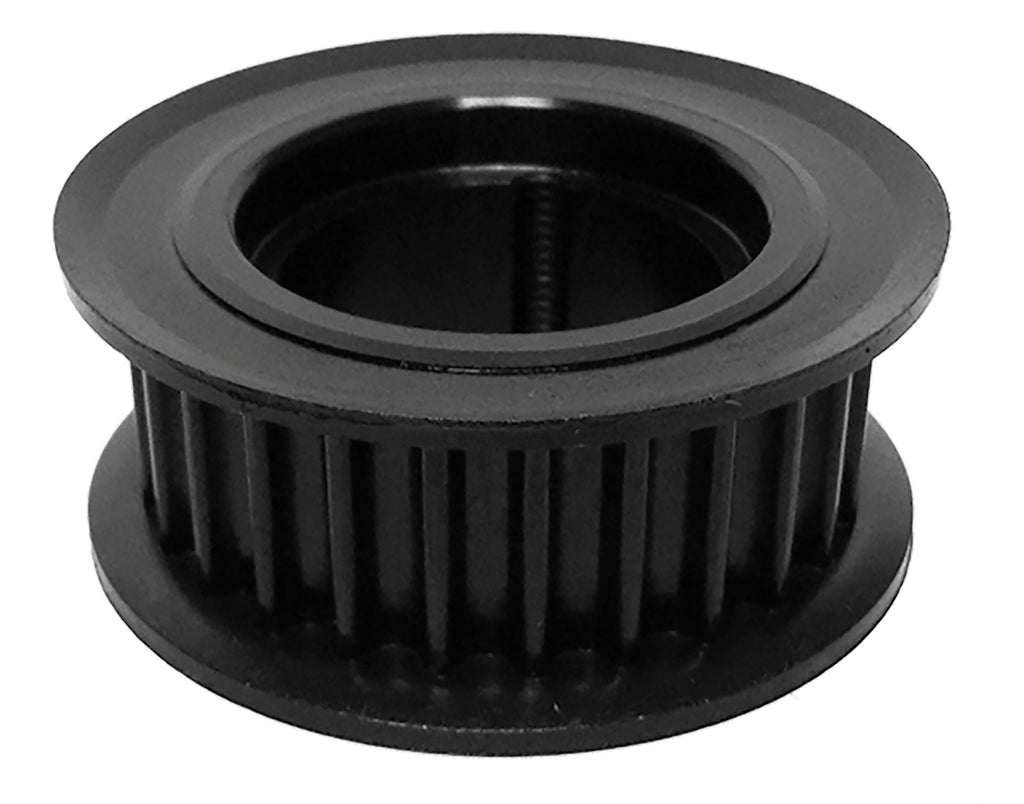

24-8P20-1108 Powerhouse® Timing Pulley, 24 Teeth, 8P Pitch
The 24-8P20-1108 is a 24-tooth 8 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 24-8P20-1108 |
| Teeth | 24 |
| Pitch | 8 mm Powerhouse® curvilinear |
| For Belt Width | 2mm |
| Pitch Diameter | 2.4061 in |
| Outside Diameter | 2.3521 in |
| Flange Diameter | 2.756 in |
| Bore | Accepts 1108 bushing (not included) |
| Face Width | 1.13 in |
| Overall Length | 1.13 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 0.75 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 24-8P20-1108 runs 8 mm Powerhouse® curvilinear belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 24-8P20-1108 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P24-8M-20-1108 |
| Martin | P248M20-1108 |
| Gates® | P24-8MGT-20 |
| TB Woods® | P248M20TL |
| Regal Rexnord (Browning®) | B248M20TL |
| Ametric | 8M24TL20.1108 |
| Grainger | 809TD6 |
| Powerdrive | 24-8P20-1108 |
| Continental (ContiTech) | P24-8M-20-1108 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 24-8P20-1108 pulley?
8 mm Powerhouse® curvilinear timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 24-8P20-1108 replace the Dodge P24-8M-20-1108?
Yes. Published interchange data crosses the 24-8P20-1108 directly to the Dodge P24-8M-20-1108, as well as Martin P248M20-1108, Gates P24-8MGT-20, TB Woods P248M20TL. Verify dimensions and bore before ordering.
Does the 24-8P20-1108 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
