Description

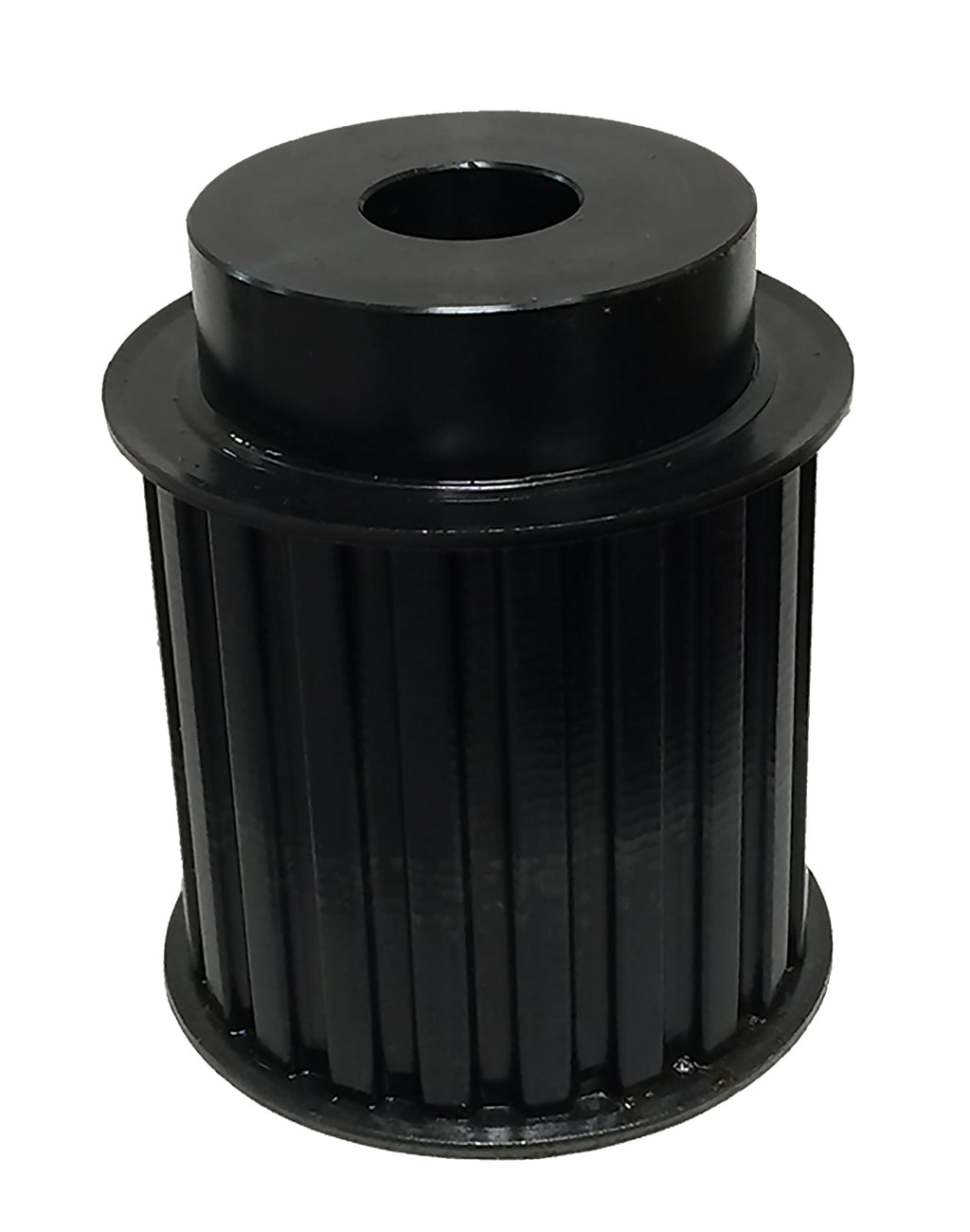

24H300-6FS11 Timing Pulley, 24 Teeth, H Pitch
The 24H300-6FS11 is a 24-tooth H (0.500 in trapezoidal) timing pulley with a 1-1/8 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 24H300-6FS11 |
| Teeth | 24 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 3 in |
| Pitch Diameter | 3.8197 in |
| Outside Diameter | 3.7657 in |
| Flange Diameter | 4.05 in |
| Bore | 1-1/8 in minimum plain bore |
| Face Width | 3.375 in |
| Overall Length | 4.312 in |
| Hub Diameter | 3 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 10.033 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 24H300-6FS11 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 24H300-6FS11 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 24H300-MPB |
| Martin | 24H300 |
| Regal Rexnord (Browning®) | 24HB300 |
| Mitsuboshi | 24H300-6FS11 |
| Grainger | 809V82 |
| Powerdrive | 24H300-6FS11 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 24H300-6FS11 pulley?
H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 24H300-6FS11 replace the Dodge 24H300-MPB?
Yes. Published interchange data crosses the 24H300-6FS11 directly to the Dodge 24H300-MPB, as well as Martin 24H300, Regal Rexnord 24HB300, Mitsuboshi 24H300-6FS11. Verify dimensions and bore before ordering.
Does the 24H300-6FS11 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
