24MP-PS5A Timing Pulley Bar Stock, 24 Teeth, MXL Pitch


Price:
$ 29.01

Description

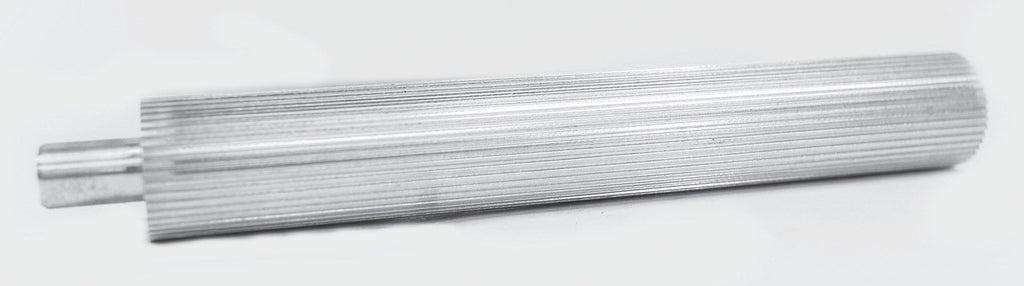

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

24MP-PS5A Timing Pulley Bar Stock, 24 Teeth, MXL Pitch

The 24MP-PS5A is machine-ready timing pulley bar stock with 24 teeth in MXL (0.080 in trapezoidal) pitch, aluminum. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 24MP-PS5A
Teeth 24
Pitch MXL (0.080 in trapezoidal)
Maximum Usable Length 5 in
Shank Length 0.75 in
Material Aluminum (no sintered or powdered metal)
Weight 0.15 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 24MP-PS5A interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A15-024MXL05
Neuman 24MP-PS-5A
York 24MXL-P-4A
On Drives MXL-5PA-024
Ametric MXL 24
Powerdrive 24MP-PS5A

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 24MP-PS5A used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 24MP-PS5A replace the Stock Drive Products A 6A15-024MXL05?

Yes. Published interchange data crosses the 24MP-PS5A directly to the Stock Drive Products A 6A15-024MXL05, as well as Neuman 24MP-PS-5A, York 24MXL-P-4A, On Drives MXL-5PA-024. Verify dimensions and bore before ordering.

Does the 24MP-PS5A ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 24MP-PS5A?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
