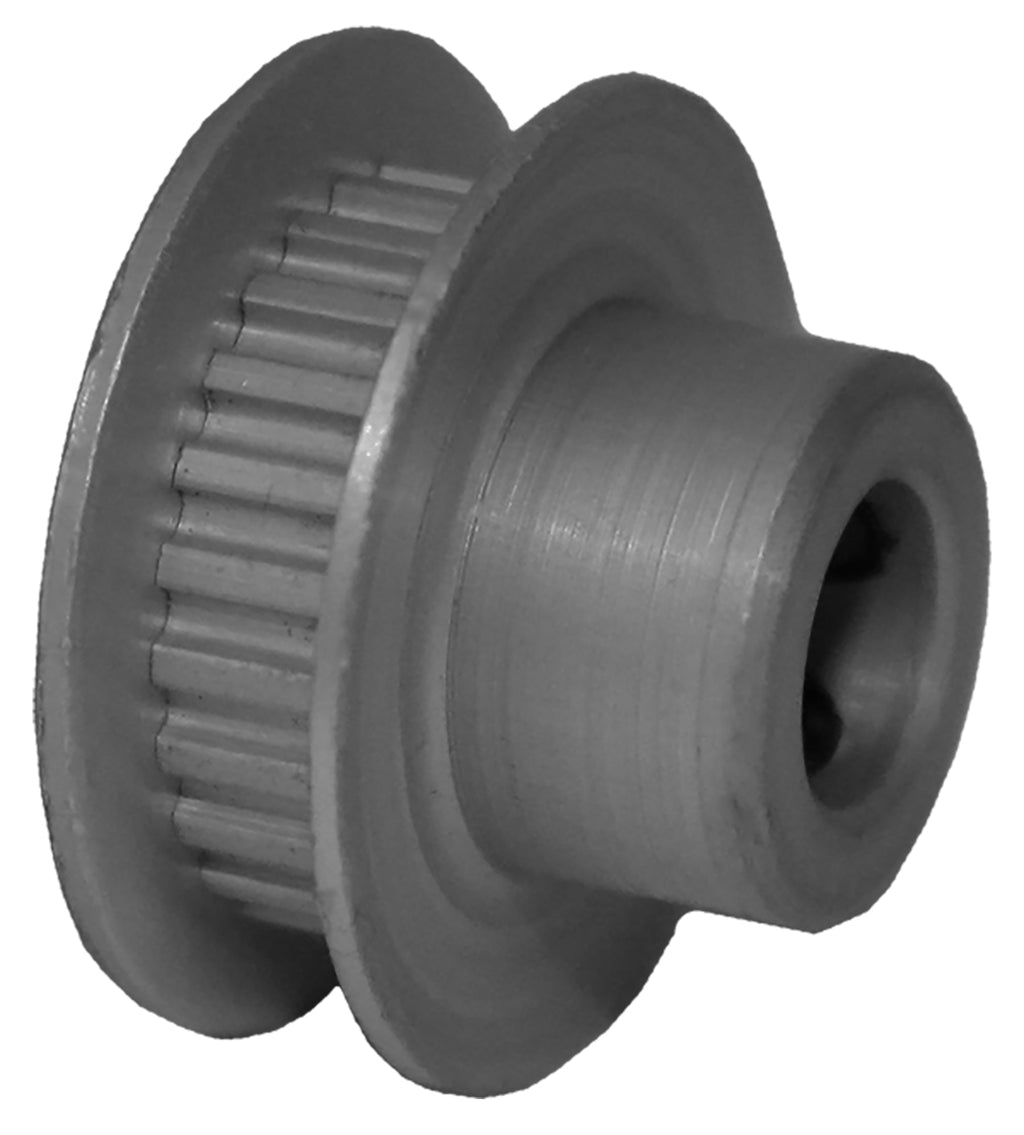

24MP012-6FA3 Timing Pulley, 24 Teeth, MXL Pitch, 1/4 in Bore


Price:
$ 11.40

Description

24MP012-6FA3 Timing Pulley, 24 Teeth, MXL Pitch, 1/4 in Bore

The 24MP012-6FA3 is a 24-tooth MXL (0.080 in trapezoidal) timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 0.125 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 24MP012-6FA3
Teeth 24
Pitch MXL (0.080 in trapezoidal)
For Belt Width 0.125 in
Pitch Diameter 0.6112 in
Outside Diameter 0.5912 in
Flange Diameter 0.79 in
Bore 1/4 in finished bore
Face Width 0.26 in
Overall Length 0.516 in
Hub Diameter 0.442 in
Construction Standard Hub
Set Screws 2 x 6-40
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0108 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 24MP012-6FA3 runs MXL (0.080 in trapezoidal) belts in 0.125 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 24MP012-6FA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Gates® PB24MXL012
Mitsuboshi 24-MP012-6FA3
Stock Drive Products (SDP/SI) A 6N16-024DF1208
Neuman 24MP-012-1/4- 6FA
W.M. Berg TP7A4W2-24
McMaster-Carr 1375K26
Powerdrive 24MP012-6FA3

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 24MP012-6FA3 pulley?

MXL (0.080 in trapezoidal) timing belts in 0.125 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 24MP012-6FA3 replace the Gates PB24MXL012?

Yes. Published interchange data crosses the 24MP012-6FA3 directly to the Gates PB24MXL012, as well as Mitsuboshi 24-MP012-6FA3, Stock Drive Products A 6N16-024DF1208, Neuman 24MP-012-1/4- 6FA. Verify dimensions and bore before ordering.

Does the 24MP012-6FA3 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 24MP012-6FA3?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
