24XHQ300 Timing Pulley, 24 Teeth, XH Pitch


Price:
$ 464.13

Description

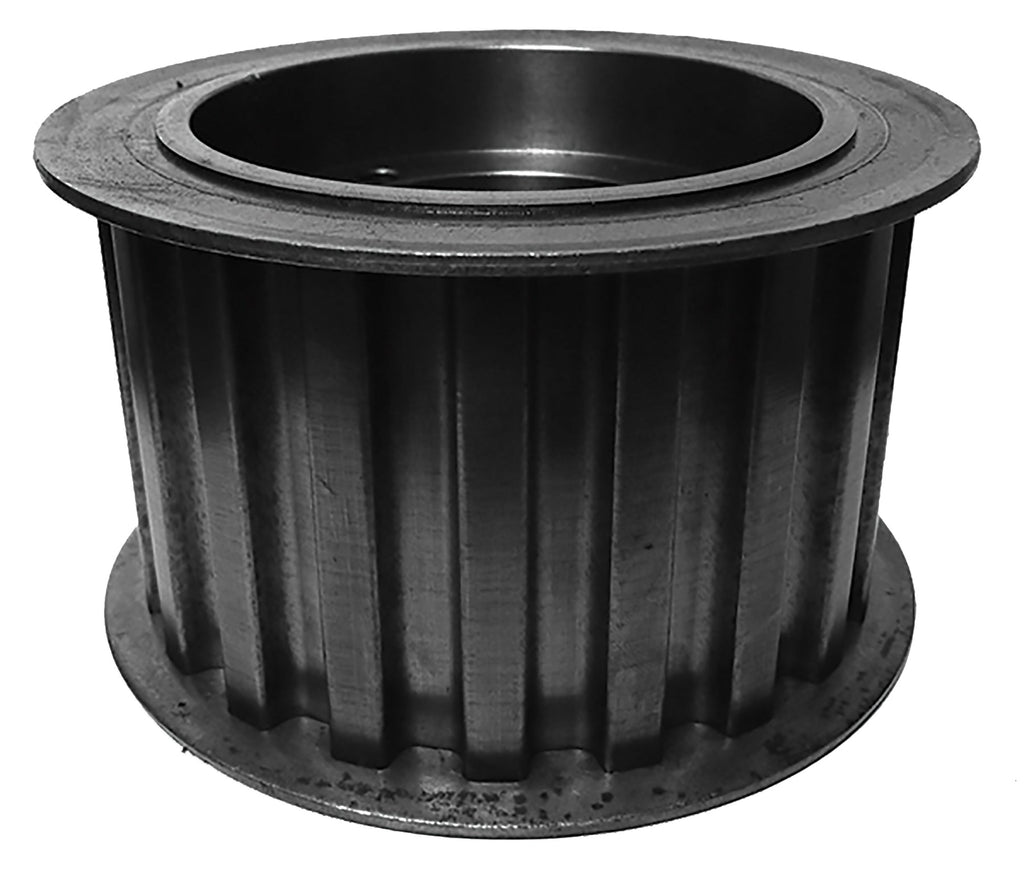

24XHQ300 Timing Pulley, 24 Teeth, XH Pitch

The 24XHQ300 is a 24-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 10 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 24XHQ300
Teeth 24
Pitch XH (0.875 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 6.6845 in
Outside Diameter 6.5745 in
Flange Diameter 7.25 in
Bore Accepts Q2 bushing (not included)
Face Width 3.625 in
Overall Length 3.781 in
Construction Split Taper Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Weight 22.298 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 24XHQ300 runs XH (0.875 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 24XHQ300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 24XHQ300
Powerdrive 24XHQ300

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 24XHQ300 pulley?

XH (0.875 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 24XHQ300 replace the Regal Rexnord 24XHQ300?

Yes. Published interchange data crosses the 24XHQ300 directly to the Regal Rexnord 24XHQ300, as well as Powerdrive 24XHQ300. Verify dimensions and bore before ordering.

Does the 24XHQ300 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 24XHQ300?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
