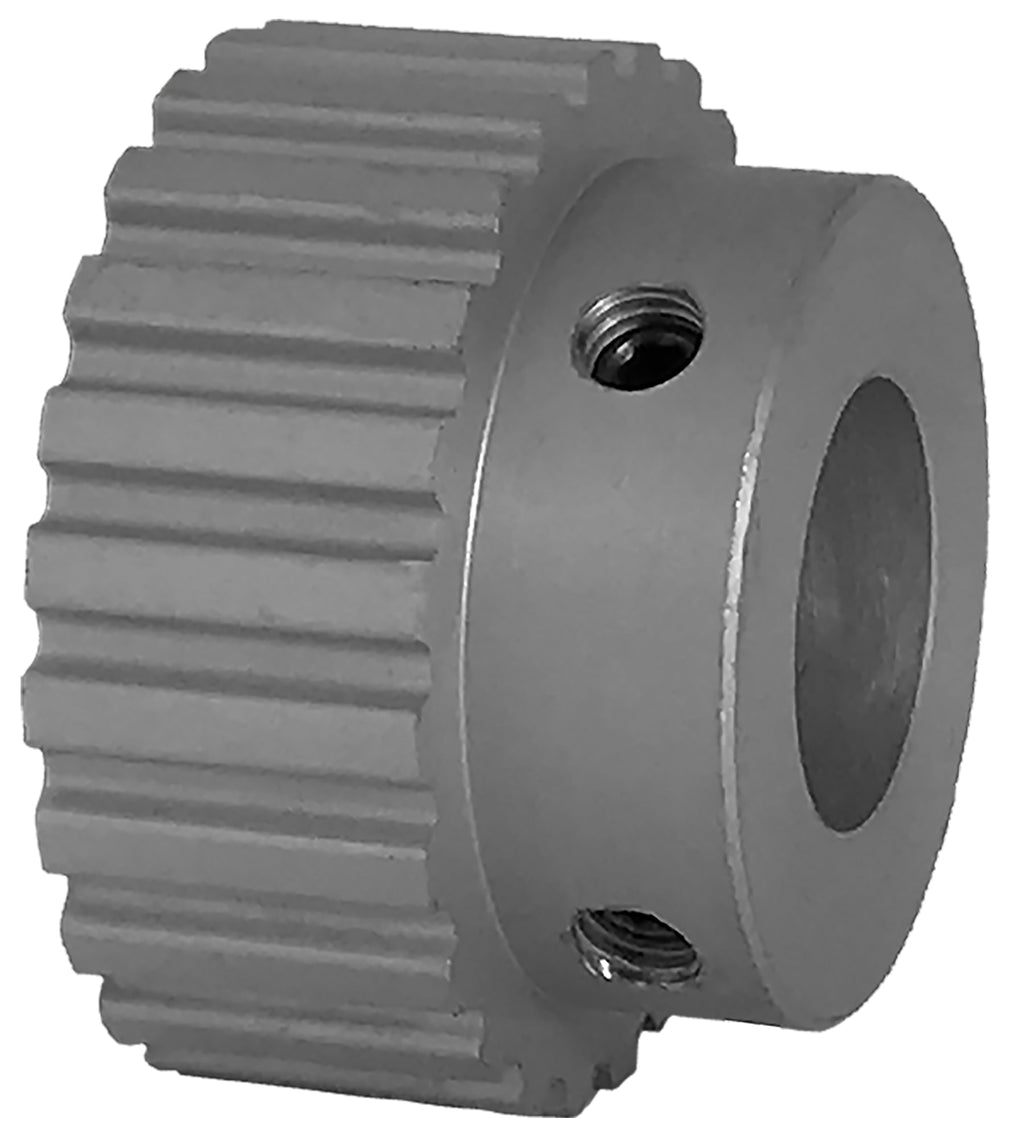

24XL037-6A7 Timing Pulley, 24 Teeth, XL Pitch, 5/8 in Bore
The 24XL037-6A7 is a 24-tooth XL (0.200 in trapezoidal) timing pulley with a 5/8 in finished bore, machined from aluminum with a clear anodized finish, built for 0.375 in wide belts. Machined from solid stock, never sintered or powdered metal.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 24XL037-6A7 |
| Teeth | 24 |
| Pitch | XL (0.200 in trapezoidal) |
| For Belt Width | 0.375 in |
| Pitch Diameter | 1.5279 in |
| Outside Diameter | 1.5079 in |
| Bore | 5/8 in finished bore |
| Face Width | 0.563 in |
| Overall Length | 0.937 in |
| Hub Diameter | 1.188 in |
| Construction | Standard Hub |
| Set Screws | 2 x 1/4-20 |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.1134 lb |
| Country of Origin | India |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 24XL037-6A7 runs XL (0.200 in trapezoidal) belts in 0.375 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 24XL037-6A7 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Mitsuboshi | 24XL037-6A7 |
| Powerdrive | 24XL037-6A7 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 24XL037-6A7 pulley?
XL (0.200 in trapezoidal) timing belts in 0.375 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 24XL037-6A7 replace the Mitsuboshi 24XL037-6A7?
Yes. Published interchange data crosses the 24XL037-6A7 directly to the Mitsuboshi 24XL037-6A7, as well as Powerdrive 24XL037-6A7. Verify dimensions and bore before ordering.
Does the 24XL037-6A7 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
