24XXHR500 Timing Pulley, 24 Teeth, XXH Pitch


Price:
$ 939.21

Description

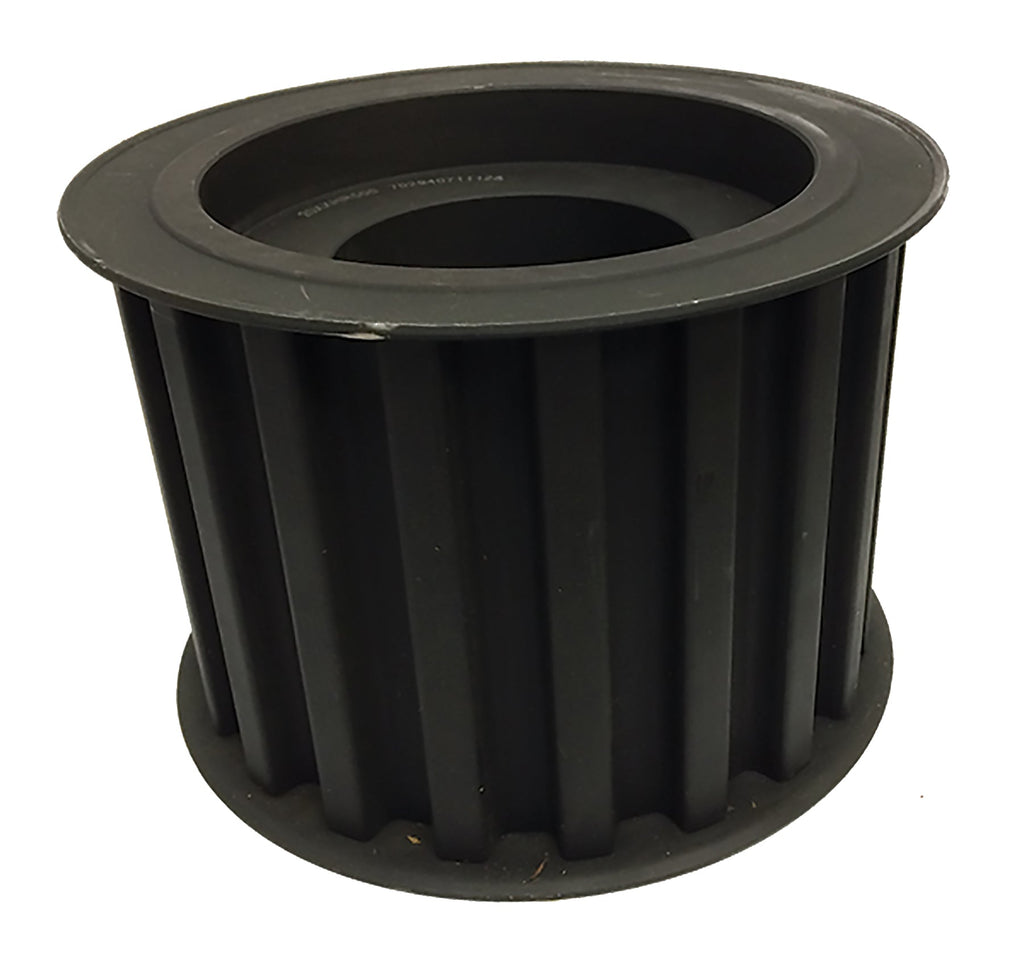

24XXHR500 Timing Pulley, 24 Teeth, XXH Pitch

The 24XXHR500 is a 24-tooth XXH (1.250 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 5 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 12 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 24XXHR500
Teeth 24
Pitch XXH (1.250 in trapezoidal)
For Belt Width 5 in
Pitch Diameter 9.5493 in
Outside Diameter 9.4293 in
Flange Diameter 10.313 in
Bore Accepts R2 bushing (not included)
Face Width 5.813 in
Overall Length 6.094 in
Construction Split Taper Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Weight 61.5 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 24XXHR500 runs XXH (1.250 in trapezoidal) belts in 5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 24XXHR500 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 24XXHR500
Powerdrive 24XXHR500

Always verify dimensions and bore size before substituting part numbers across manufacturers.
