2517X2-1/2SS Taper-Lock® Style Bushing, 2-1/2 Finished in Bore, Stainless steel


Price:
$ 303

Description

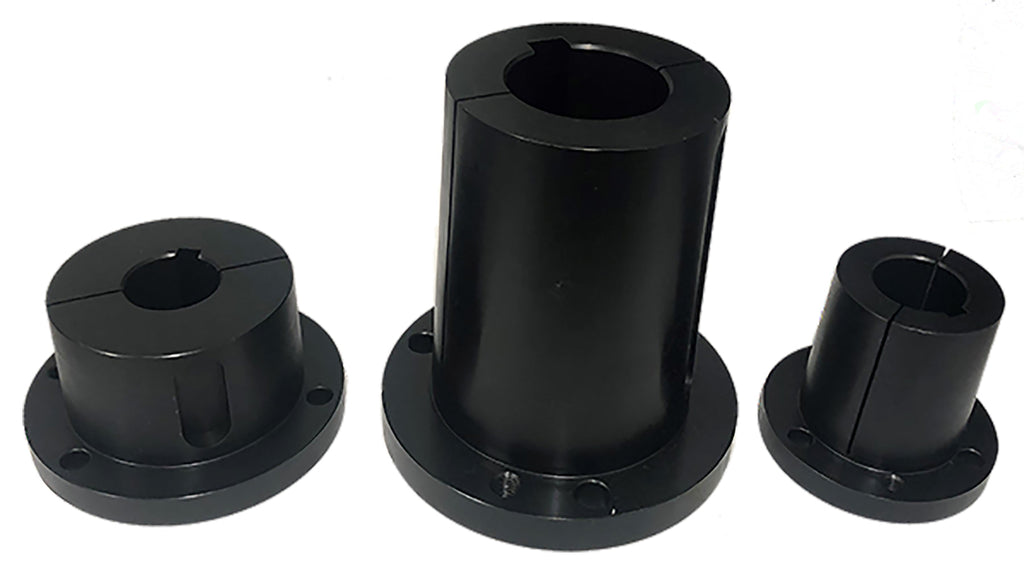

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

2517X2-1/2SS Taper-Lock® Style Bushing, 2-1/2 Finished in Bore, Stainless steel

The 2517X2-1/2SS is a 2517 series Taper-Lock style bushing with a 2-1/2 Finished in bore, machined from solid stainless steel. It mounts any 2517-bushed component, including sheaves, sprockets, and timing pulleys, to a 2-1/2 Finished in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number 2517X2-1/2SS
Bushing System Taper-Lock® style
Series 2517
Bore 2-1/2 Finished in
Material Stainless steel (no sintered or powdered metal)
Weight 4 lb
Country of Origin China

Applications

  • Mounting 2517-bushed V-belt sheaves, sprockets, and timing pulleys to 2-1/2 Finished in shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Wash-down, food processing, and corrosive environments
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The 2517 Taper-Lock style designation is an industry standard. The 2517X2-1/2SS fits any component machined for the same series, with a 2-1/2 Finished in bore.

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the 2517X2-1/2SS bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a 2517 series Taper-Lock style bushing, and mounts that component to a 2-1/2 Finished in shaft. The 2517 size is standardized across manufacturers, so the component brand does not matter.

How does a Taper-Lock style bushing install?

The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.

Why choose a stainless steel bushing like the 2517X2-1/2SS?

Stainless resists corrosion in wash-down, food processing, chemical, and outdoor service where standard black oxide steel bushings rust. Dimensions match the standard series, so stainless swaps in without changing the component.

Does the 2517X2-1/2SS ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 2517X2-1/2SS?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Taper-Lock® is a registered trademark of its respective owner. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
