Description

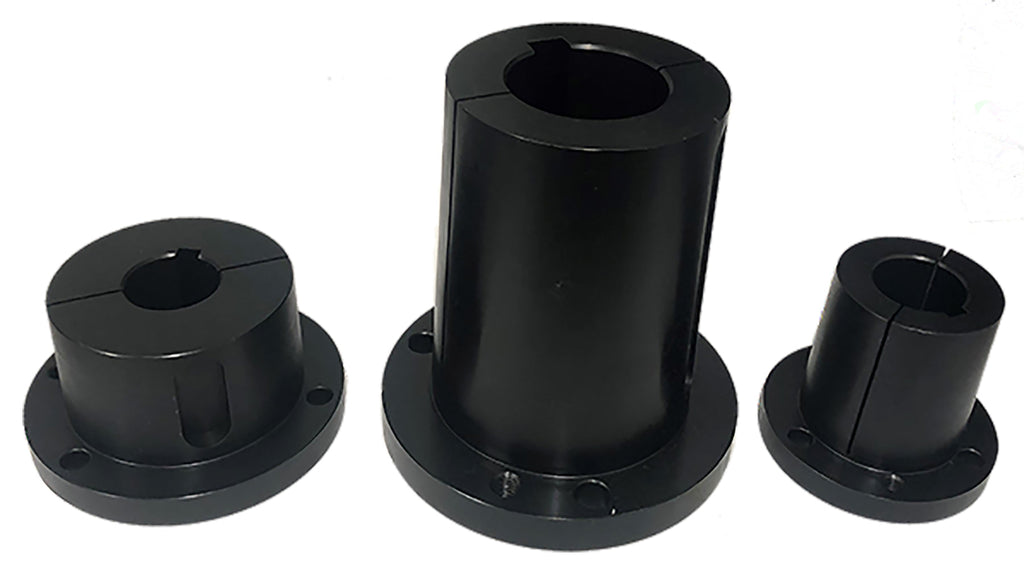

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.
2517X60MMSS Taper-Lock® Style Bushing, 60mm Bore, Stainless steel
The 2517X60MMSS is a 2517 series Taper-Lock style bushing with a 60mm bore, machined from solid stainless steel. It mounts any 2517-bushed component, including sheaves, sprockets, and timing pulleys, to a 60mm shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.
Specifications
| Specification | Value |
|---|---|
| Part Number | 2517X60MMSS |
| Bushing System | Taper-Lock® style |
| Series | 2517 |
| Bore | 60mm |
| Material | Stainless steel (no sintered or powdered metal) |
| Weight | 4 lb |
| Country of Origin | China |
Applications
- Mounting 2517-bushed V-belt sheaves, sprockets, and timing pulleys to 60mm shafts
- Drive component replacement where the bushing wears or the shaft size changes
- Conveyor, fan, pump, and general industrial drive assemblies
- Wash-down, food processing, and corrosive environments
- Stocking standard bushing sizes for plant maintenance inventories
Cross Reference
The 2517 Taper-Lock style designation is an industry standard. The 2517X60MMSS fits any component machined for the same series, with a 60mm bore.
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What does the 2517X60MMSS bushing fit?
It fits any sheave, sprocket, pulley, or coupling machined for a 2517 series Taper-Lock style bushing, and mounts that component to a 60mm shaft. The 2517 size is standardized across manufacturers, so the component brand does not matter.
How does a Taper-Lock style bushing install?
The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.
Why choose a stainless steel bushing like the 2517X60MMSS?
Stainless resists corrosion in wash-down, food processing, chemical, and outdoor service where standard black oxide steel bushings rust. Dimensions match the standard series, so stainless swaps in without changing the component.
Does the 2517X60MMSS ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
