25H-PS10A Timing Pulley Bar Stock, 25 Teeth, H Pitch


Price:
$ 230.14

Description

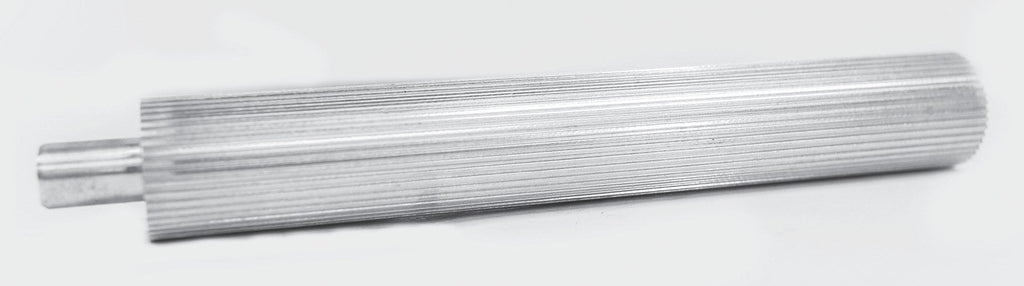

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

25H-PS10A Timing Pulley Bar Stock, 25 Teeth, H Pitch

The 25H-PS10A is machine-ready timing pulley bar stock with 25 teeth in H (0.500 in trapezoidal) pitch, aluminum. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

Specifications

Specification Value
Part Number 25H-PS10A
Teeth 25
Pitch H (0.500 in trapezoidal)
Maximum Usable Length 1 in
Shank Length 1 in
Material Aluminum (no sintered or powdered metal)
Weight 11.7 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 25H-PS10A interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Ametric H 25
Powerdrive 25H-PS10A

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 25H-PS10A used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 25H-PS10A replace the Ametric H 25?

Yes. Published interchange data crosses the 25H-PS10A directly to the Ametric H 25, as well as Powerdrive 25H-PS10A. Verify dimensions and bore before ordering.

Does the 25H-PS10A ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 25H-PS10A?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
