26-5P09M6FA10 Powerhouse® Timing Pulley, 26 Teeth, 5P Pitch, 10 mm Bore


Price:
$ 15.64

Description

26-5P09M6FA10 Powerhouse® Timing Pulley, 26 Teeth, 5P Pitch, 10 mm Bore

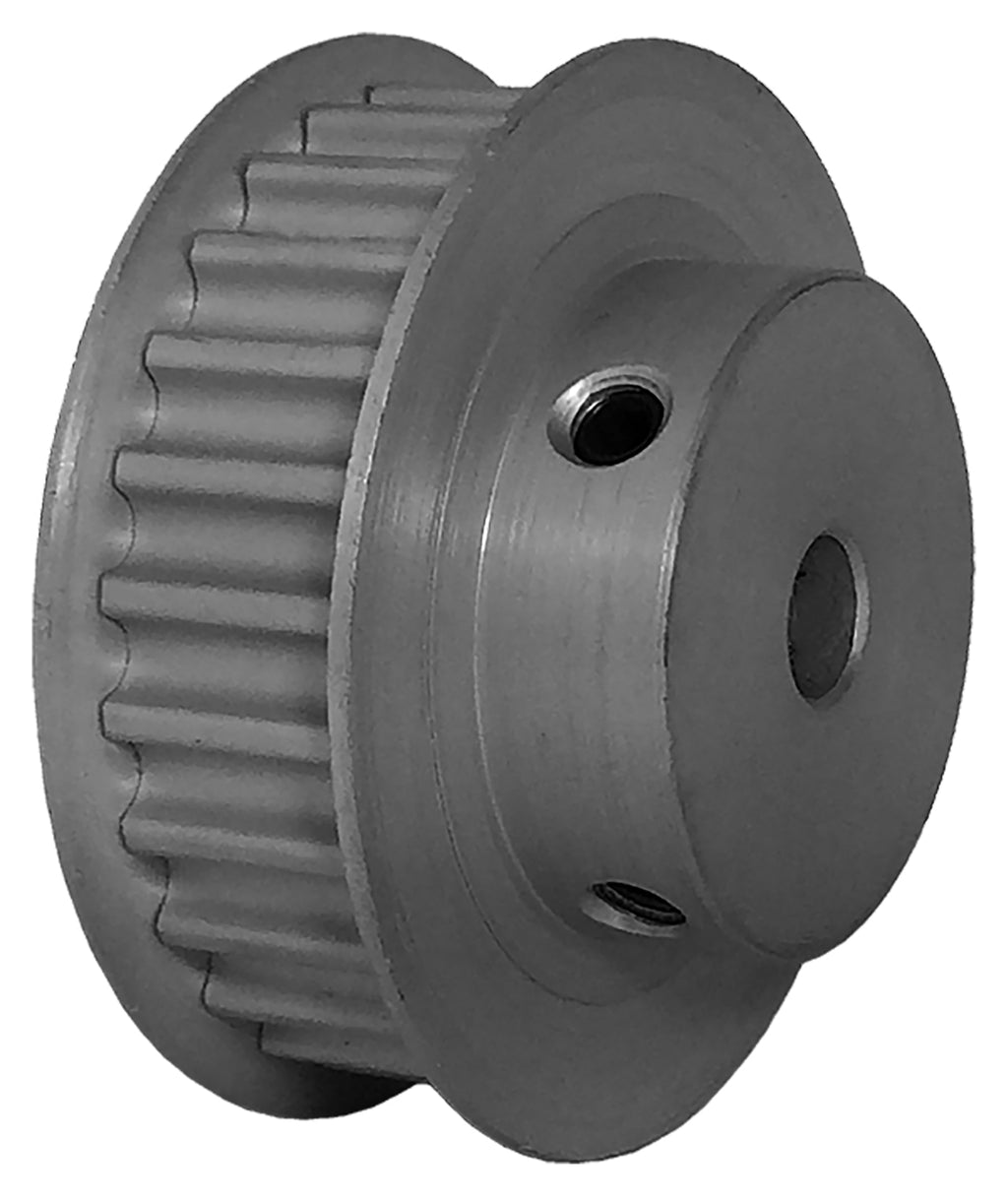

The 26-5P09M6FA10 is a 26-tooth 5 mm Powerhouse® curvilinear timing pulley with a 10 mm finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 26-5P09M6FA10
Teeth 26
Pitch 5 mm Powerhouse® curvilinear
For Belt Width 9mm
Pitch Diameter 1.6291 in
Outside Diameter 1.5841 in
Flange Diameter 1.75 in
Bore 10 mm finished bore
Face Width 0.546 in
Overall Length 0.859 in
Hub Diameter 1.063 in
Construction Standard Hub
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.1279 lb
Country of Origin India

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 26-5P09M6FA10 runs 5 mm Powerhouse® curvilinear belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 26-5P09M6FA10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A55M026DF0910

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 26-5P09M6FA10 pulley?

5 mm Powerhouse® curvilinear timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 26-5P09M6FA10 replace the Stock Drive Products A 6A55M026DF0910?

Yes. Published interchange data crosses the 26-5P09M6FA10 directly to the Stock Drive Products A 6A55M026DF0910. Verify dimensions and bore before ordering.

Does the 26-5P09M6FA10 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 26-5P09M6FA10?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
