Description

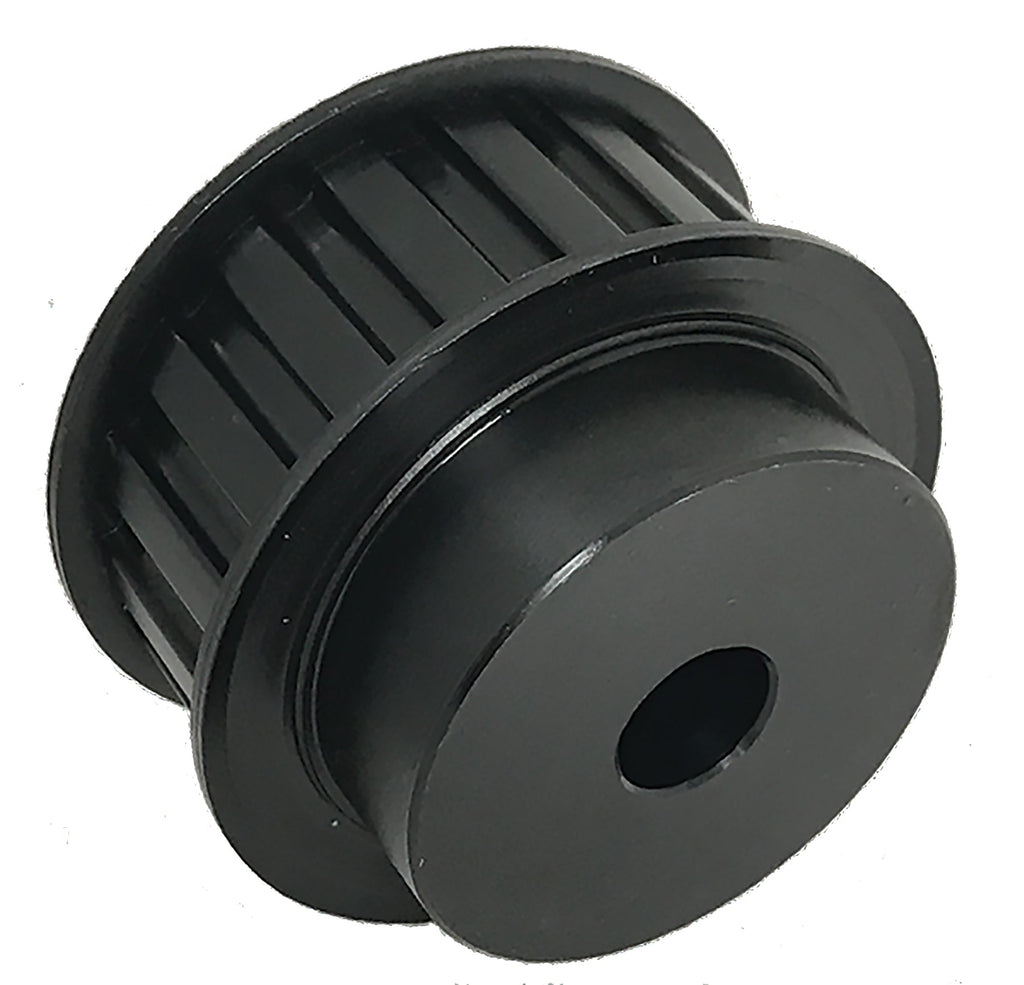

26H100-6FS8 Timing Pulley, 26 Teeth, H Pitch
The 26H100-6FS8 is a 26-tooth H (0.500 in trapezoidal) timing pulley with a 3/4 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 26H100-6FS8 |
| Teeth | 26 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 1 in |
| Pitch Diameter | 4.138 in |
| Outside Diameter | 4.084 in |
| Flange Diameter | 4.369 in |
| Bore | 3/4 in minimum plain bore |
| Face Width | 1.312 in |
| Overall Length | 2.375 in |
| Hub Diameter | 3.375 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 6.654 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 26H100-6FS8 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 26H100-6FS8 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 26H100-MPB |
| Martin | 26H100 |
| Regal Rexnord (Browning®) | 26HB100 |
| Mitsuboshi | 26H100-6FS8 |
| McMaster-Carr | 6495K93 |
| Grainger | 809V85 |
| Powerdrive | 26H100-6FS8 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 26H100-6FS8 pulley?
H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 26H100-6FS8 replace the Dodge 26H100-MPB?
Yes. Published interchange data crosses the 26H100-6FS8 directly to the Dodge 26H100-MPB, as well as Martin 26H100, Regal Rexnord 26HB100, Mitsuboshi 26H100-6FS8. Verify dimensions and bore before ordering.
Does the 26H100-6FS8 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
