26H200-6FS10 Timing Pulley, 26 Teeth, H Pitch


Price:
$ 122.29

Description

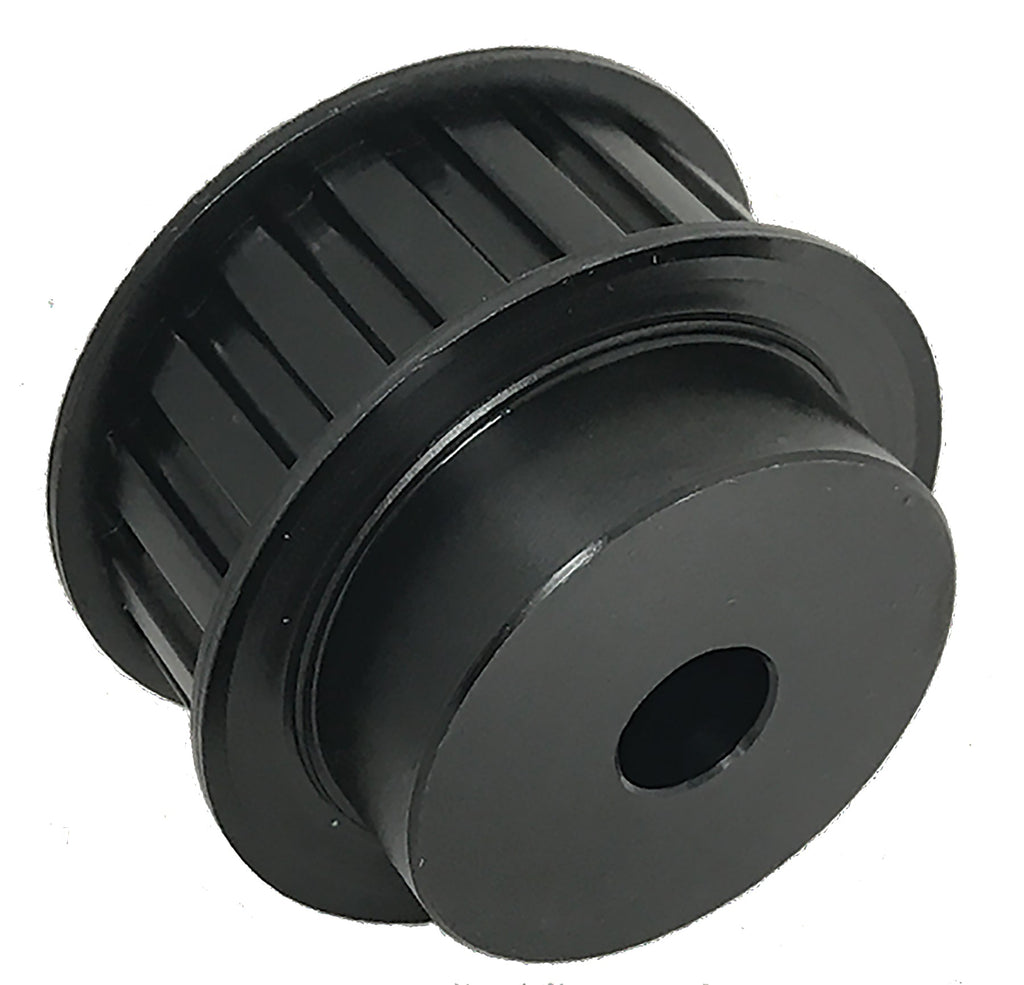

26H200-6FS10 Timing Pulley, 26 Teeth, H Pitch

The 26H200-6FS10 is a 26-tooth H (0.500 in trapezoidal) timing pulley with a 1 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 26H200-6FS10
Teeth 26
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 4.138 in
Outside Diameter 4.084 in
Flange Diameter 4.369 in
Bore 1 in minimum plain bore
Face Width 2.344 in
Overall Length 3.406 in
Hub Diameter 3.375 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 9.555 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 26H200-6FS10 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 26H200-6FS10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 26H200-MPB
Martin 26H200
Regal Rexnord (Browning®) 26HB200
Mitsuboshi 26H200-6FS10
McMaster-Carr 6495K172
Grainger 809V87
Powerdrive 26H200-6FS10

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 26H200-6FS10 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 26H200-6FS10 replace the Dodge 26H200-MPB?

Yes. Published interchange data crosses the 26H200-6FS10 directly to the Dodge 26H200-MPB, as well as Martin 26H200, Regal Rexnord 26HB200, Mitsuboshi 26H200-6FS10. Verify dimensions and bore before ordering.

Does the 26H200-6FS10 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 26H200-6FS10?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
