26H300-6FS11 Timing Pulley, 26 Teeth, H Pitch


Price:
$ 150.07

Description

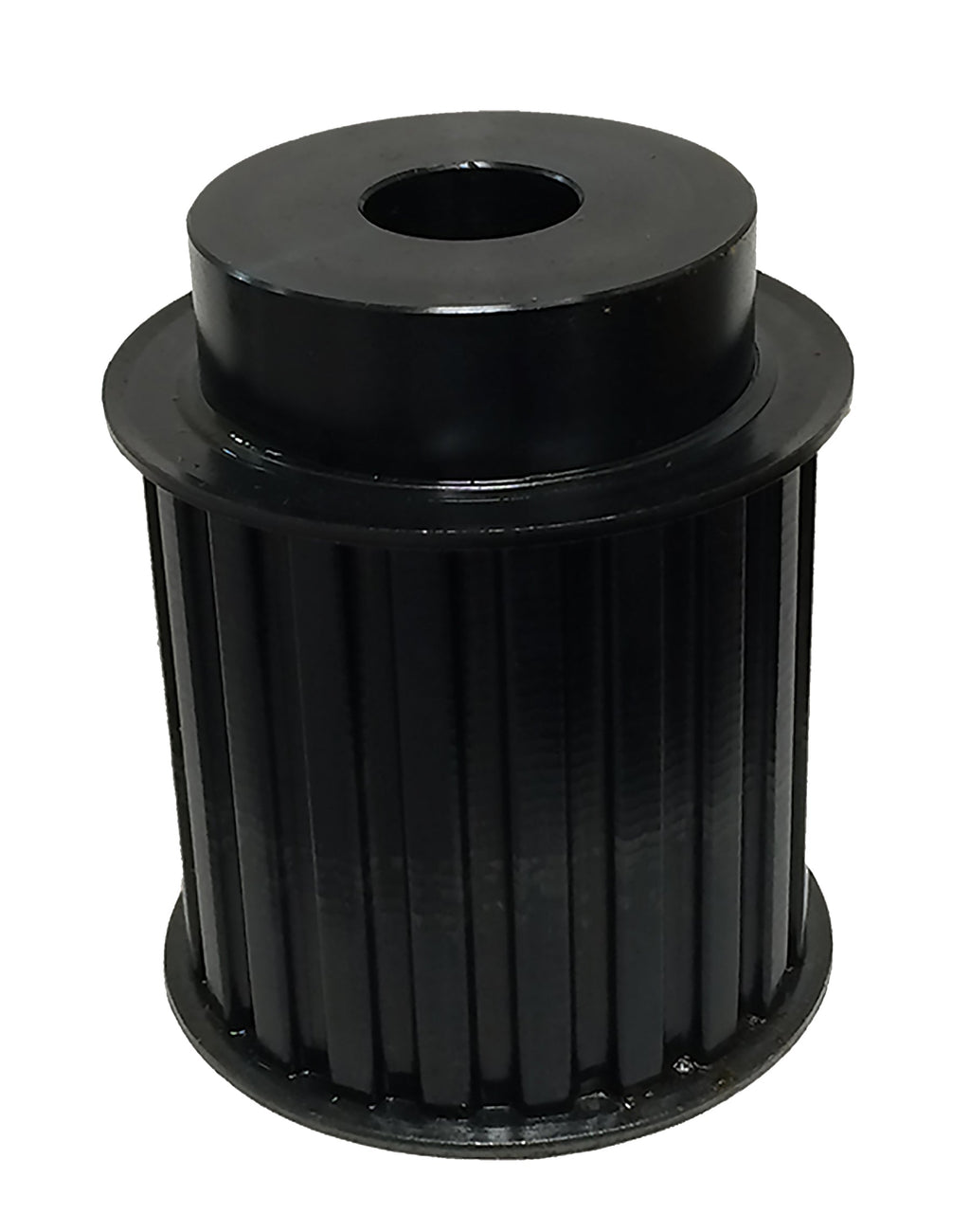

26H300-6FS11 Timing Pulley, 26 Teeth, H Pitch

The 26H300-6FS11 is a 26-tooth H (0.500 in trapezoidal) timing pulley with a 1-1/8 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 26H300-6FS11
Teeth 26
Pitch H (0.500 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 4.138 in
Outside Diameter 4.084 in
Flange Diameter 4.369 in
Bore 1-1/8 in minimum plain bore
Face Width 3.375 in
Overall Length 4.437 in
Hub Diameter 3.375 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 12.494 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 26H300-6FS11 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 26H300-6FS11 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 26H300-MPB
Martin 26H300
Regal Rexnord (Browning®) 26HB300
Mitsuboshi 26H300-6FS11
Grainger 809V88
Powerdrive 26H300-6FS11

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 26H300-6FS11 pulley?

H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 26H300-6FS11 replace the Dodge 26H300-MPB?

Yes. Published interchange data crosses the 26H300-6FS11 directly to the Dodge 26H300-MPB, as well as Martin 26H300, Regal Rexnord 26HB300, Mitsuboshi 26H300-6FS11. Verify dimensions and bore before ordering.

Does the 26H300-6FS11 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 26H300-6FS11?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
