26XL025-6FA6 Timing Pulley, 26 Teeth, XL Pitch, 1/2 in Bore

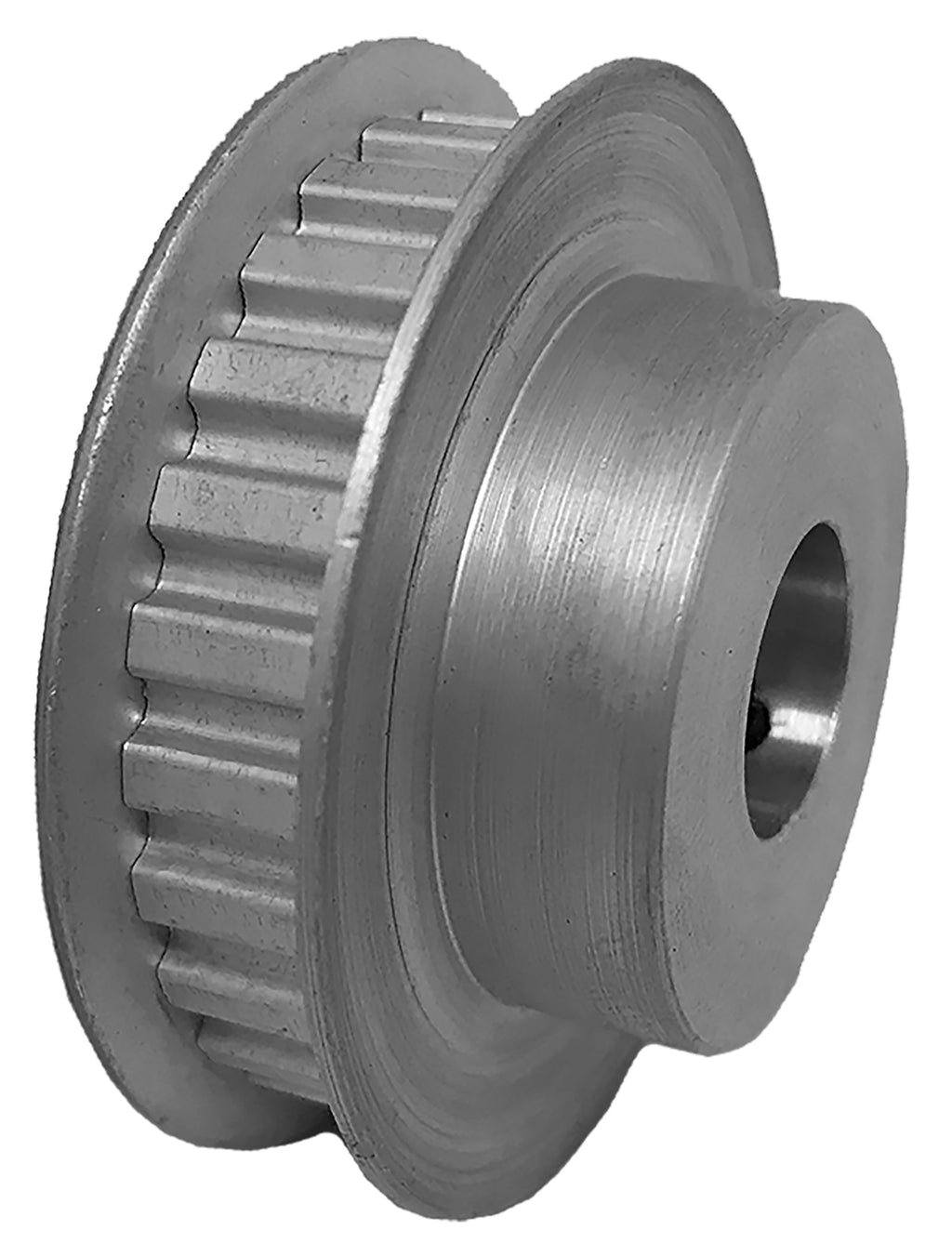

The 26XL025-6FA6 is a 26-tooth XL (0.200 in trapezoidal) timing pulley with a 1/2 in finished bore, machined from aluminum with a clear anodized finish, built for 0.25 in wide belts. Machined from solid stock, never sintered or powdered metal.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 26XL025-6FA6 |
| Teeth | 26 |
| Pitch | XL (0.200 in trapezoidal) |
| For Belt Width | 0.25 in |
| Pitch Diameter | 1.6552 in |
| Outside Diameter | 1.6352 in |
| Flange Diameter | 1.875 in |
| Bore | 1/2 in finished bore |
| Face Width | 0.438 in |
| Overall Length | 0.781 in |
| Hub Diameter | 1.188 in |
| Construction | Standard Hub |
| Set Screws | 2 x 10-32 |
| Flange Material | Aluminum |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.1287 lb |
| Country of Origin | India |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 26XL025-6FA6 runs XL (0.200 in trapezoidal) belts in 0.25 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 26XL025-6FA6 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Mitsuboshi | 26XL025-6FA6 |
| York | 26XL025-1A X 1/2 |
| W.M. Berg | TP20A6W4-26 |
| Powerdrive | 26XL025-6FA6 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 26XL025-6FA6 pulley?
XL (0.200 in trapezoidal) timing belts in 0.25 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 26XL025-6FA6 replace the Mitsuboshi 26XL025-6FA6?
Yes. Published interchange data crosses the 26XL025-6FA6 directly to the Mitsuboshi 26XL025-6FA6, as well as York 26XL025-1A X 1/2, W.M. Berg TP20A6W4-26, Powerdrive 26XL025-6FA6. Verify dimensions and bore before ordering.
Does the 26XL025-6FA6 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
