27AT5/60-0 Timing Pulley, 6 Teeth, AT5 Pitch


Price:
$ 56.67

Description

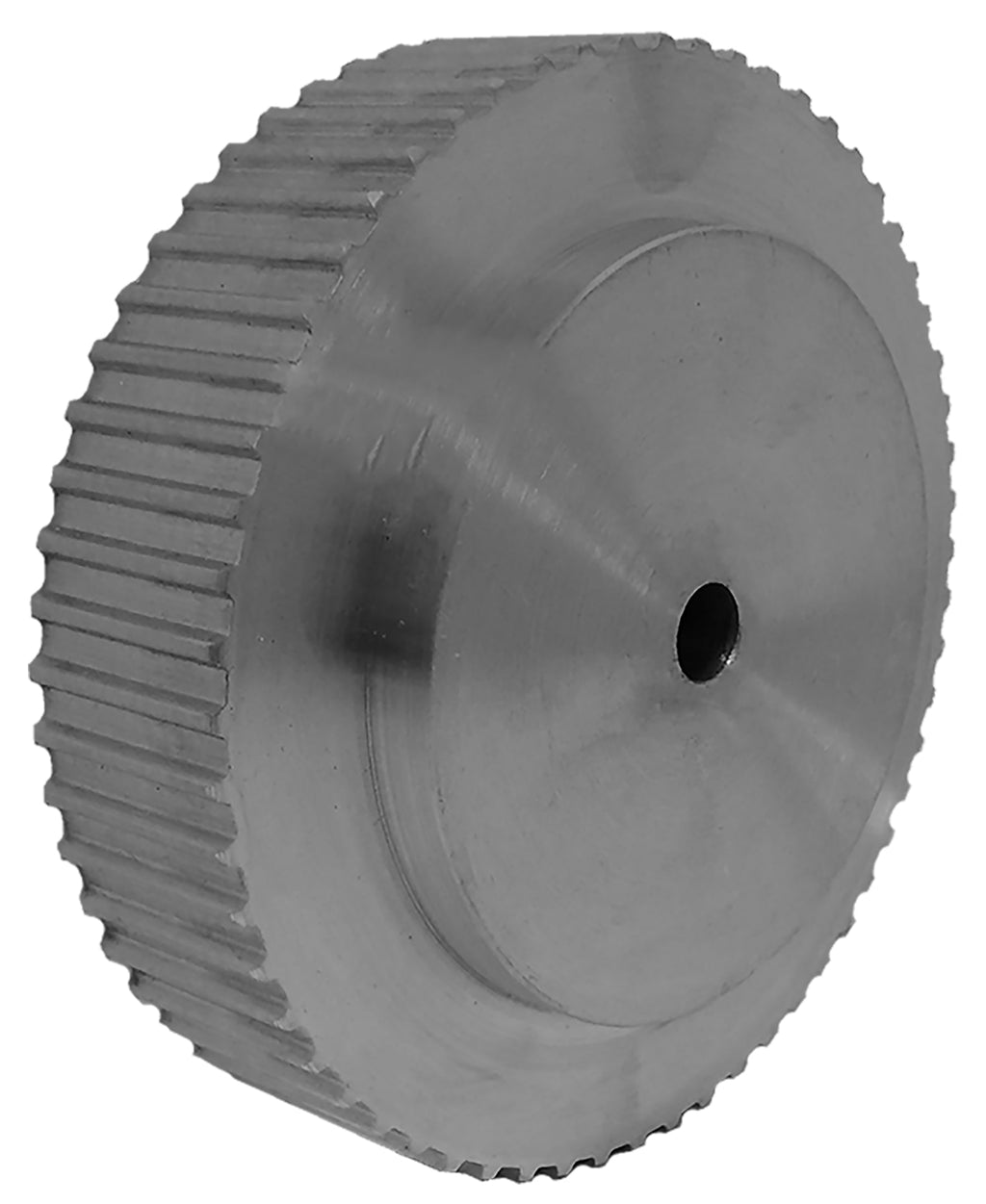

27AT5/60-0 Timing Pulley, 6 Teeth, AT5 Pitch

The 27AT5/60-0 is a 6-tooth AT5 (5 mm metric) timing pulley with a 8 mm minimum plain bore, machined from aluminum, built for 16mm wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6NOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 27AT5/60-0
Teeth 6
Pitch AT5 (5 mm metric)
For Belt Width 16mm
Pitch Diameter 3.7596 in
Outside Diameter 3.7084 in
Bore 8 mm minimum plain bore
Construction Standard Hub
Material Aluminum (no sintered or powdered metal)
Weight 0.994 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 27AT5/60-0 runs AT5 (5 mm metric) belts in 16mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 27AT5/60-0 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Mitsuboshi 27AT5/60-0
Jason Industrial 27AT5/60-0
Optibelt 27AT5/60-0
Ametric 27AT5/60 0
Powerdrive 27AT5/60-0

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 27AT5/60-0 pulley?

AT5 (5 mm metric) timing belts in 16mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 27AT5/60-0 replace the Mitsuboshi 27AT5/60-0?

Yes. Published interchange data crosses the 27AT5/60-0 directly to the Mitsuboshi 27AT5/60-0, as well as Jason Industrial 27AT5/60-0, Optibelt 27AT5/60-0, Ametric 27AT5/60 0. Verify dimensions and bore before ordering.

Does the 27AT5/60-0 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 27AT5/60-0?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
