28-14MX68-6FS10 Powerhouse® MX Timing Pulley, 28 Teeth, 14MX Pitch


Price:
$ 324.97

Description

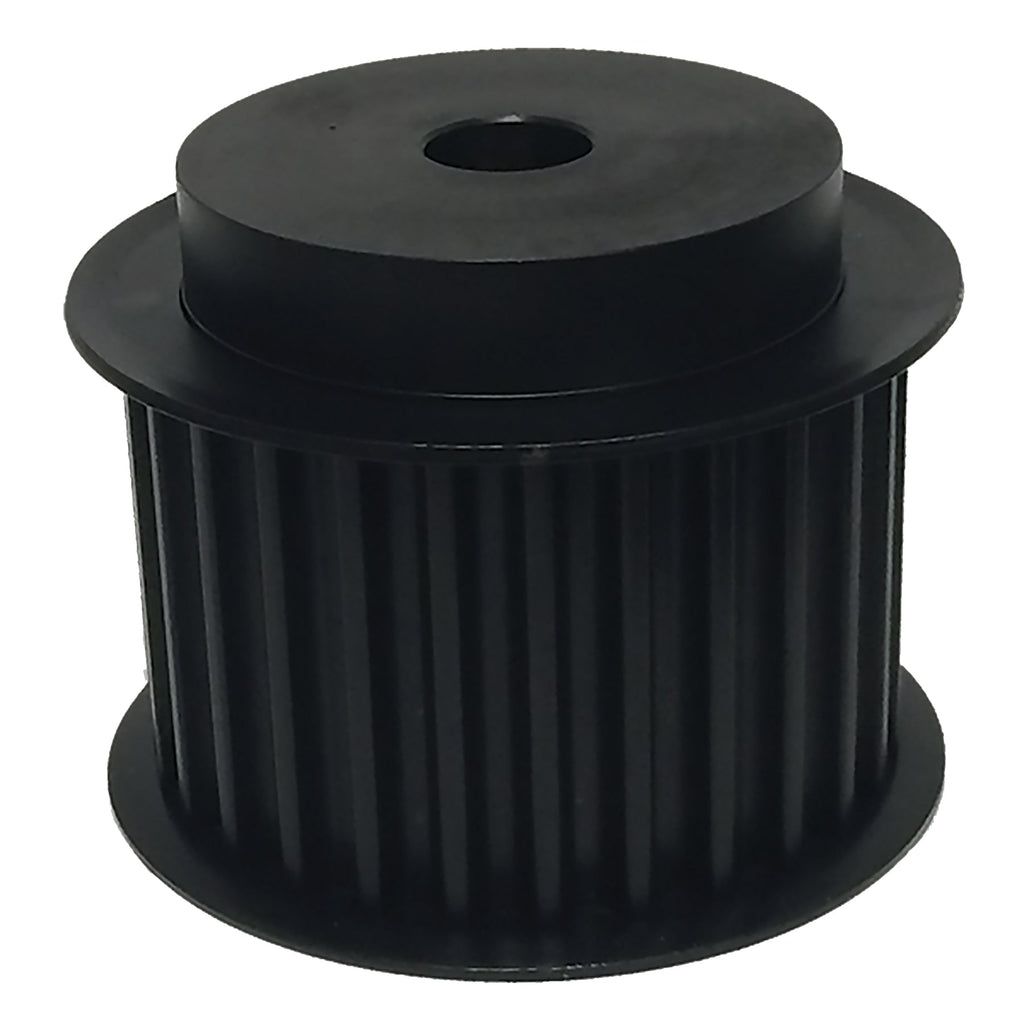

28-14MX68-6FS10 Powerhouse® MX Timing Pulley, 28 Teeth, 14MX Pitch

The 28-14MX68-6FS10 is a 28-tooth 14 mm MX high torque timing pulley with a 1 in minimum plain bore, machined from ductile iron with a black oxide finish, built for 68mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 28-14MX68-6FS10
Teeth 28
Pitch 14 mm MX high torque
For Belt Width 68mm
Pitch Diameter 4.9125 in
Outside Diameter 4.8025 in
Flange Diameter 5.562 in
Bore 1 in minimum plain bore
Face Width 3.328 in
Overall Length 4.125 in
Hub Diameter 3.97 in
Construction Standard Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 15.922 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 28-14MX68-6FS10 runs 14 mm MX high torque belts in 68mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 28-14MX68-6FS10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-28S-68-MPB
Martin PB14MX28S68
Gates® PB14MX-28S-68
TB Woods® 14MPC28S68MPB
Regal Rexnord (Browning®) PB14MCS-28-68
Mitsuboshi 28-14MX68-6FS10
Grainger 809RL4
Powerdrive 28-14MX68-6FS10
Continental (ContiTech) 28G-14M-68-MPB

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 28-14MX68-6FS10 pulley?

14 mm MX high torque timing belts in 68mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 28-14MX68-6FS10 replace the Dodge 14MX-28S-68-MPB?

Yes. Published interchange data crosses the 28-14MX68-6FS10 directly to the Dodge 14MX-28S-68-MPB, as well as Martin PB14MX28S68, Gates PB14MX-28S-68, TB Woods 14MPC28S68MPB. Verify dimensions and bore before ordering.

Does the 28-14MX68-6FS10 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 28-14MX68-6FS10?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
