28-3M-PS6A Timing Pulley Bar Stock, 28 Teeth, 3M Pitch


Price:
$ 39.89

Description

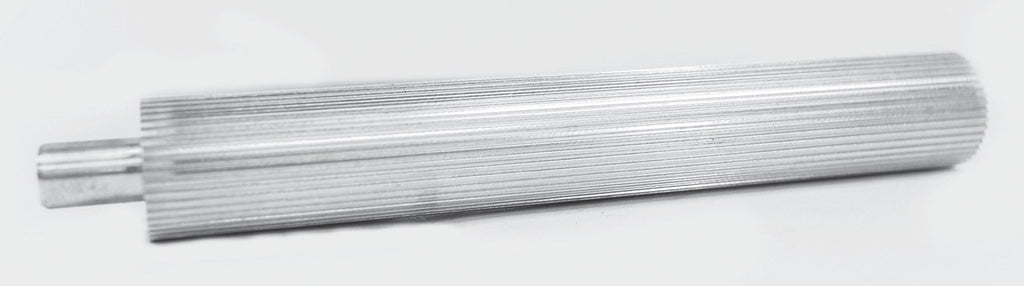

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

28-3M-PS6A Timing Pulley Bar Stock, 28 Teeth, 3M Pitch

The 28-3M-PS6A is machine-ready timing pulley bar stock with 28 teeth in 3 mm HTD® compatible pitch, aluminum. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 28-3M-PS6A
Teeth 28
Pitch 3 mm HTD® compatible
Maximum Usable Length 6 in
Shank Length 0.75 in
Material Aluminum (no sintered or powdered metal)
Weight 0.456 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 28-3M-PS6A interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A22M028TM15
Neuman 28-3M-PS-6A
York 28-3M-P-6A
On Drives 3HTD-6PA-028
Ametric 3M 28
Powerdrive 28-3M-PS6A

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 28-3M-PS6A used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 28-3M-PS6A replace the Stock Drive Products A 6A22M028TM15?

Yes. Published interchange data crosses the 28-3M-PS6A directly to the Stock Drive Products A 6A22M028TM15, as well as Neuman 28-3M-PS-6A, York 28-3M-P-6A, On Drives 3HTD-6PA-028. Verify dimensions and bore before ordering.

Does the 28-3M-PS6A ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 28-3M-PS6A?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
