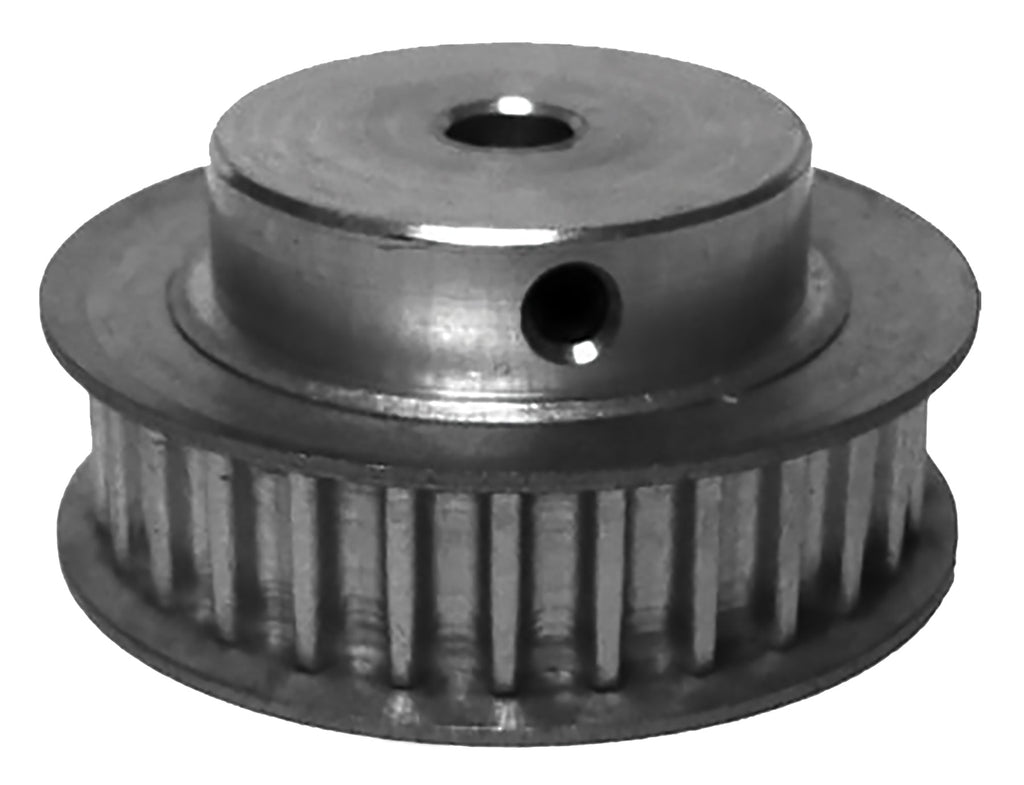

28-5M09-6FA3 Powerhouse® HTD Timing Pulley, 28 Teeth, 5M Pitch, 1/4 in Bore
The 28-5M09-6FA3 is a 28-tooth 5 mm HTD® compatible timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 28-5M09-6FA3 |
| Teeth | 28 |
| Pitch | 5 mm HTD® compatible |
| For Belt Width | 9mm |
| Pitch Diameter | 1.7545 in |
| Outside Diameter | 1.7095 in |
| Flange Diameter | 1.875 in |
| Bore | 1/4 in finished bore |
| Face Width | 0.54 in |
| Overall Length | 0.852 in |
| Hub Diameter | 1.187 in |
| Construction | Standard Hub |
| Set Screws | 2 x 8-32 |
| Flange Material | Aluminum |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.151 lb |
| Country of Origin | India |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The 28-5M09-6FA3 runs 5 mm HTD® compatible belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 28-5M09-6FA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Gates® | P28-5M-09AL |
| Stock Drive Products (SDP/SI) | A 6A25-028DF0908 |
| Neuman | 28M5-L09M-6F |
| York | 28-5M-09 X 1/4 |
| Powerdrive | 28-5M09-6FA3 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 28-5M09-6FA3 pulley?
5 mm HTD® compatible timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 28-5M09-6FA3 replace the Gates P28-5M-09AL?
Yes. Published interchange data crosses the 28-5M09-6FA3 directly to the Gates P28-5M-09AL, as well as Stock Drive Products A 6A25-028DF0908, Neuman 28M5-L09M-6F, York 28-5M-09 X 1/4. Verify dimensions and bore before ordering.
Does the 28-5M09-6FA3 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
