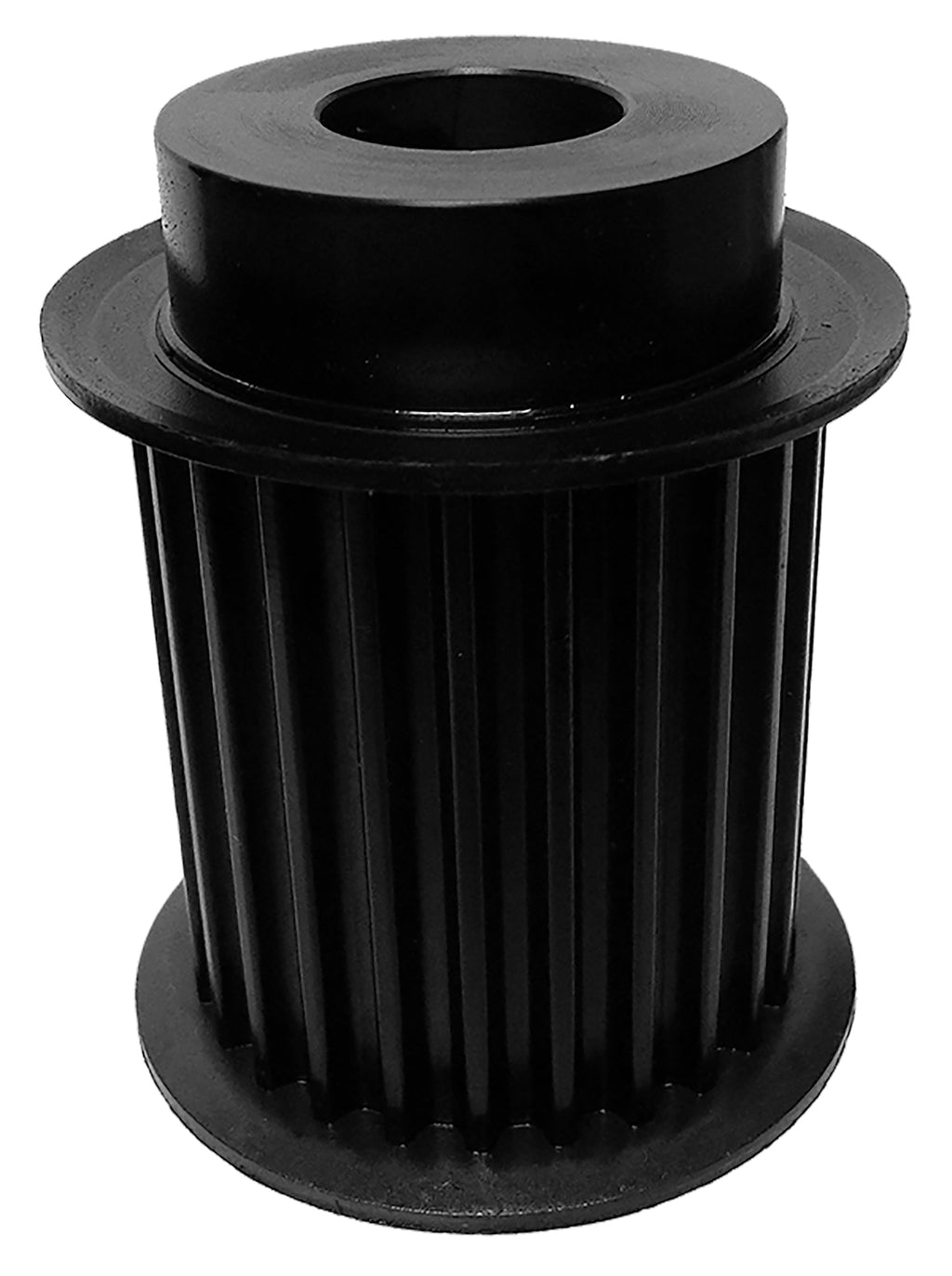

28-8MX62-6FS10 Powerhouse® MX Timing Pulley, 28 Teeth, 8MX Pitch
The 28-8MX62-6FS10 is a 28-tooth 8 mm MX high torque timing pulley with a 1 in minimum plain bore, machined from steel with a black oxide finish, built for 62mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 28-8MX62-6FS10 |
| Teeth | 28 |
| Pitch | 8 mm MX high torque |
| For Belt Width | 62mm |
| Pitch Diameter | 2.8071 in |
| Outside Diameter | 2.7441 in |
| Flange Diameter | 3.15 in |
| Bore | 1 in minimum plain bore |
| Face Width | 2.906 in |
| Overall Length | 3.563 in |
| Hub Diameter | 2.344 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 4.524 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 28-8MX62-6FS10 runs 8 mm MX high torque belts in 62mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 28-8MX62-6FS10 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 8MX-28S-62-MPB |
| Martin | PB8MX28S62 |
| Gates® | PB8MX-28S-62 |
| TB Woods® | 8MPC28S62MPB |
| Regal Rexnord (Browning®) | PB8MCS-28-62 |
| Mitsuboshi | 28-8M62-6FS10 |
| Grainger | 809RM0 |
| Powerdrive | 28-8MX62-6FS10 |
| Continental (ContiTech) | 28G-8M-62-MPB |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 28-8MX62-6FS10 pulley?
8 mm MX high torque timing belts in 62mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 28-8MX62-6FS10 replace the Dodge 8MX-28S-62-MPB?
Yes. Published interchange data crosses the 28-8MX62-6FS10 directly to the Dodge 8MX-28S-62-MPB, as well as Martin PB8MX28S62, Gates PB8MX-28S-62, TB Woods 8MPC28S62MPB. Verify dimensions and bore before ordering.
