29-14M115-6FS13 Powerhouse® HTD Timing Pulley, 29 Teeth, 14M Pitch


Price:
$ 205.60

Description

29-14M115-6FS13 Powerhouse® HTD Timing Pulley, 29 Teeth, 14M Pitch

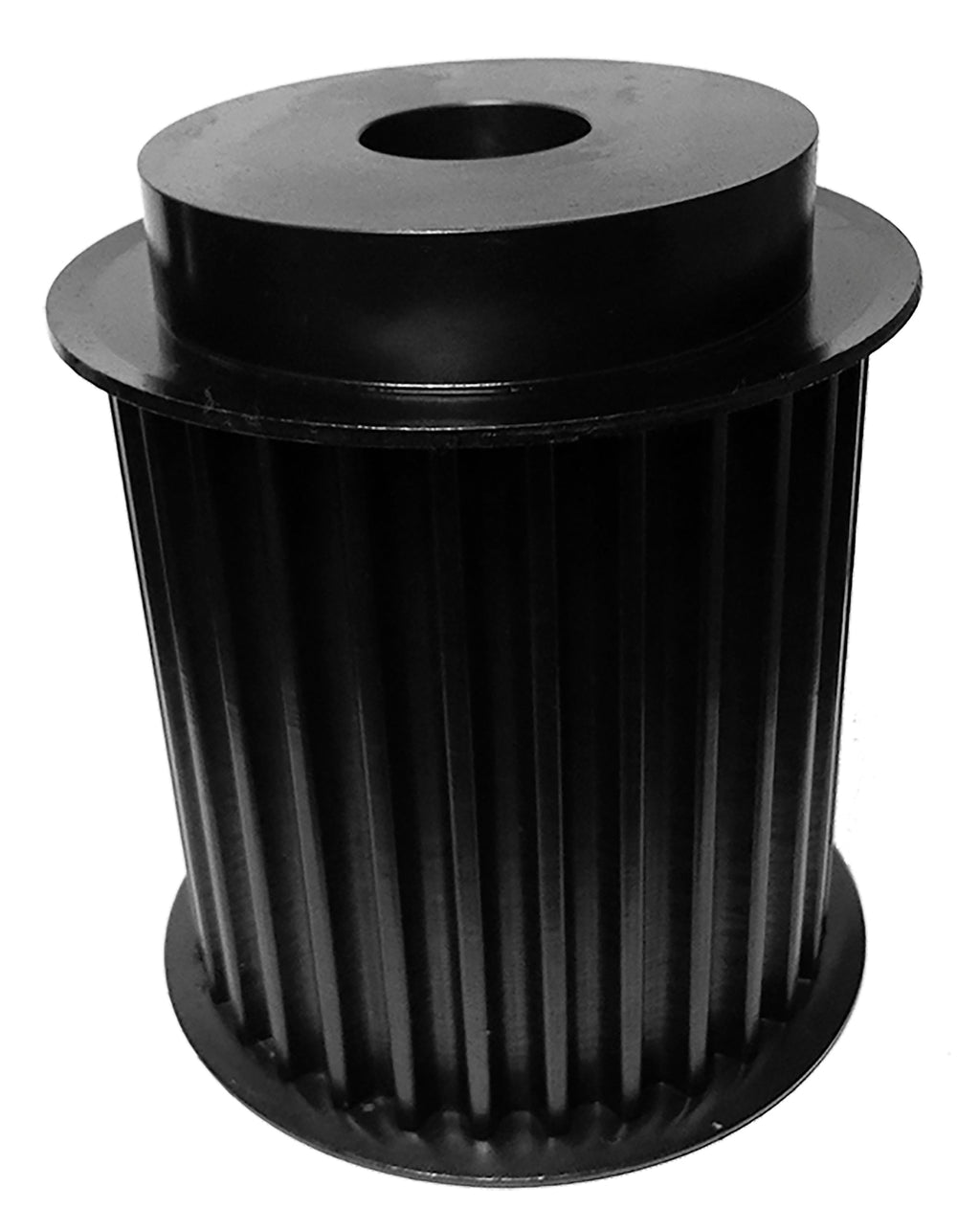

The 29-14M115-6FS13 is a 29-tooth 14 mm HTD® compatible timing pulley with a 1-1/4 in minimum plain bore, machined from steel with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 29-14M115-6FS13
Teeth 29
Pitch 14 mm HTD® compatible
For Belt Width 115mm
Pitch Diameter 5.0879 in
Outside Diameter 4.9779 in
Flange Diameter 5.56 in
Bore 1-1/4 in minimum plain bore
Face Width 5.25 in
Overall Length 5.25 in
Hub Diameter 3.69 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 22.8 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The 29-14M115-6FS13 runs 14 mm HTD® compatible belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 29-14M115-6FS13 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P29-14M-115-MPB
Martin P2914M115-MPB
Gates® P29-14M-115
Regal Rexnord (Browning®) B2914M115B
Masterdrive P29-14M-115-PB
Ametric 14M29X115
Powerdrive 29-14M115-6FS13

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 29-14M115-6FS13 pulley?

14 mm HTD® compatible timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 29-14M115-6FS13 replace the Dodge P29-14M-115-MPB?

Yes. Published interchange data crosses the 29-14M115-6FS13 directly to the Dodge P29-14M-115-MPB, as well as Martin P2914M115-MPB, Gates P29-14M-115, Regal Rexnord B2914M115B. Verify dimensions and bore before ordering.

Does the 29-14M115-6FS13 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 29-14M115-6FS13?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
