29-14MX125-6FS16 Powerhouse® MX Timing Pulley, 29 Teeth, 14MX Pitch


Price:
$ 540.46

Description

29-14MX125-6FS16 Powerhouse® MX Timing Pulley, 29 Teeth, 14MX Pitch

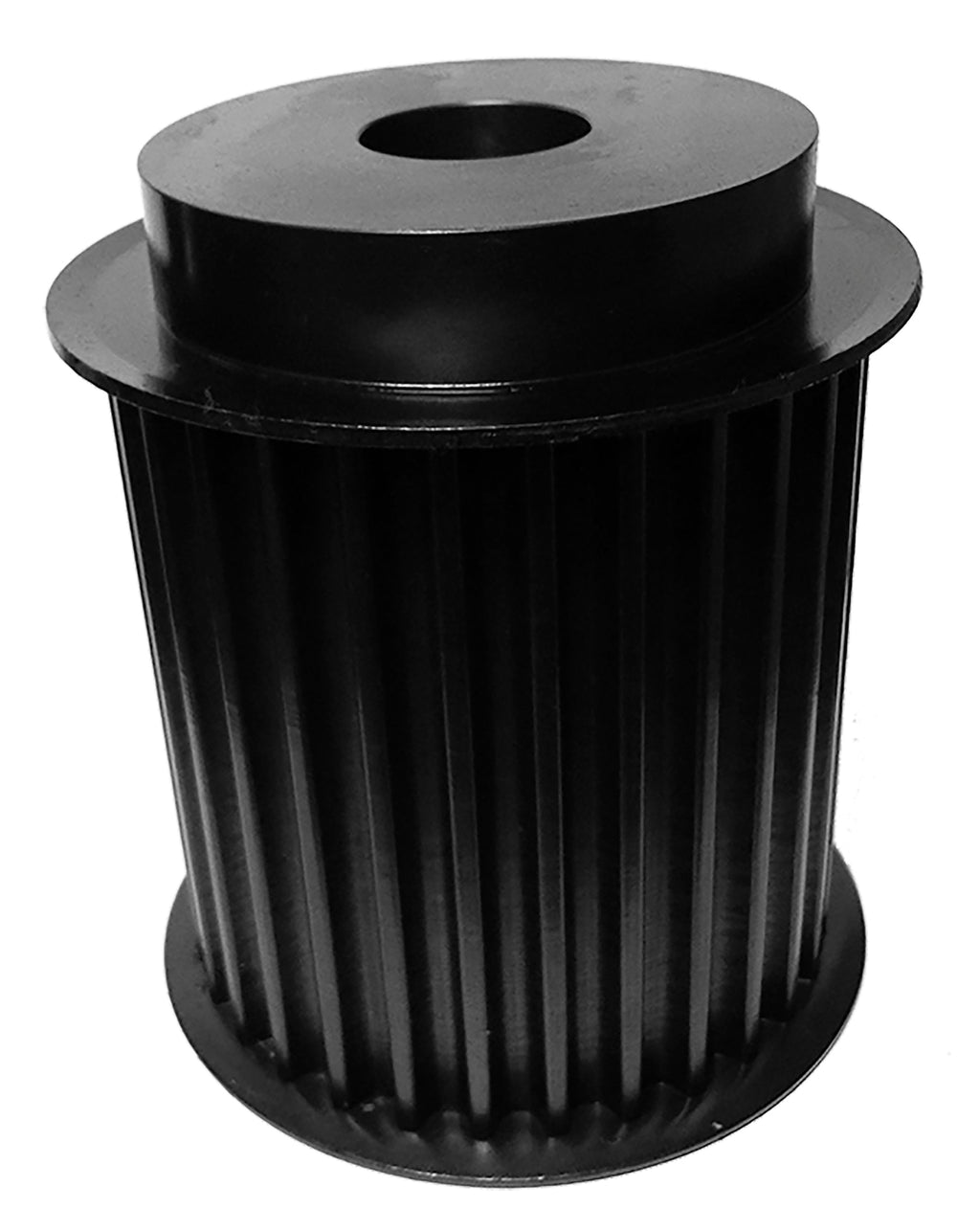

The 29-14MX125-6FS16 is a 29-tooth 14 mm MX high torque timing pulley with a 1-1/2 in minimum plain bore, machined from steel with a black oxide finish, built for 125mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 29-14MX125-6FS16
Teeth 29
Pitch 14 mm MX high torque
For Belt Width 125mm
Pitch Diameter 5.0879 in
Outside Diameter 4.9779 in
Flange Diameter 5.562 in
Bore 1-1/2 in minimum plain bore
Face Width 5.609 in
Overall Length 6.5 in
Hub Diameter 4.35 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 26.491 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 29-14MX125-6FS16 runs 14 mm MX high torque belts in 125mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 29-14MX125-6FS16 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-29S-125-MPB
Martin PB14MX29S125
Gates® PB14MX-29S-125
TB Woods® 14MPC29S125MPB
Regal Rexnord (Browning®) PB14MCS-29-125
Mitsuboshi 29-14MX125-6FS16
Powerdrive 29-14MX125-6FS16
Continental (ContiTech) 29G-14M-125-MPB

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 29-14MX125-6FS16 pulley?

14 mm MX high torque timing belts in 125mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 29-14MX125-6FS16 replace the Dodge 14MX-29S-125-MPB?

Yes. Published interchange data crosses the 29-14MX125-6FS16 directly to the Dodge 14MX-29S-125-MPB, as well as Martin PB14MX29S125, Gates PB14MX-29S-125, TB Woods 14MPC29S125MPB. Verify dimensions and bore before ordering.

Does the 29-14MX125-6FS16 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 29-14MX125-6FS16?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
