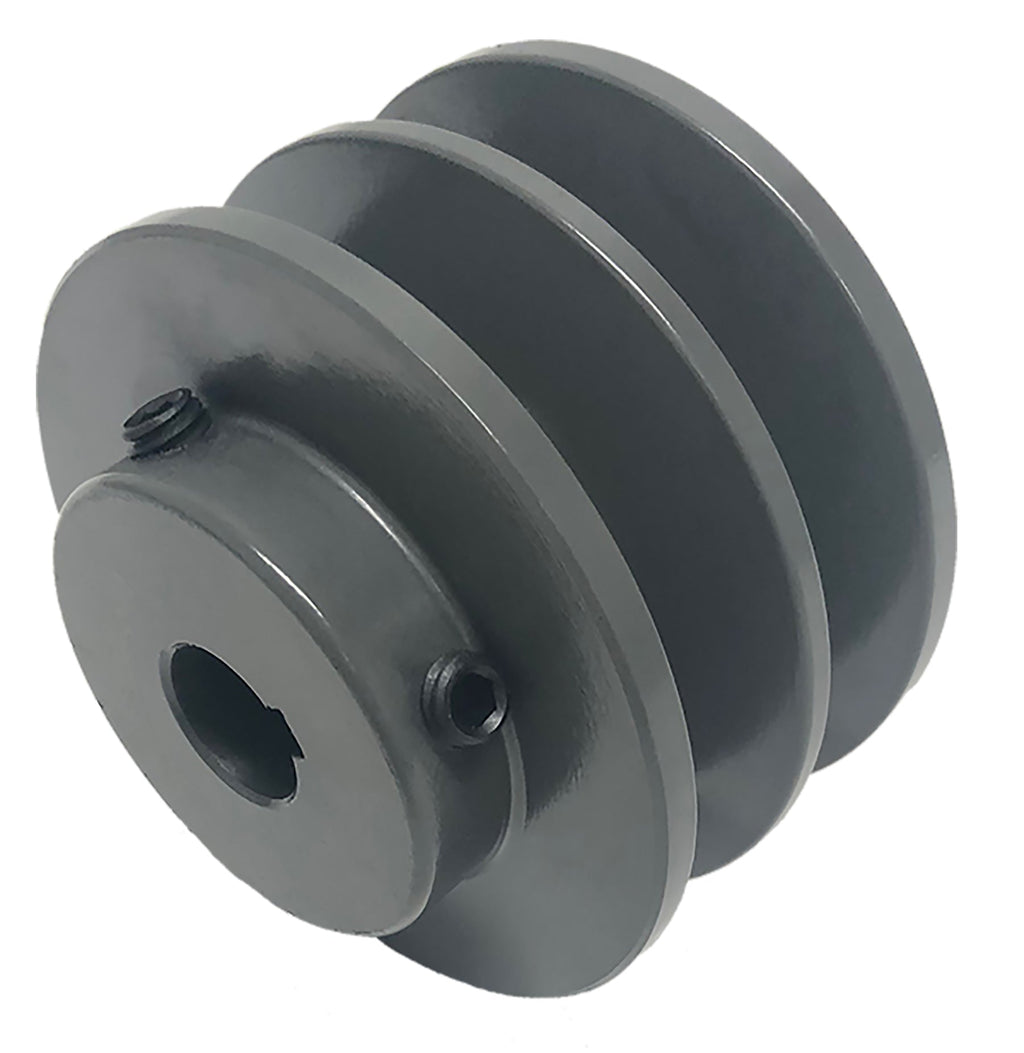

2BK34x1 Light Duty V-Belt Sheave, 2 Grooves, 3.55 in OD, 1 in Bore


Price:
$ 46.95

Description

2BK34x1 Light Duty V-Belt Sheave, 2 Grooves, 3.55 in OD, 1 in Bore

The 2BK34x1 is a 2-groove light duty V-belt sheave with a 3.55 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 1 in finished bore. It runs 4L, 5L, A, and B section V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 2BK34x1
Belt Section BK
Grooves 2
Outside Diameter 3.55 in
Pitch Diameter (A / B belts) 2.8 in / 3.2 in
Face Width 1.75 in
Bore 1 in finished bore
Keyway / Set Screw 1 x 5/16-18 UNC
Material Cast Iron, fully machined, statically balanced
Weight 3.04 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The 2BK34x1 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 2BK34 X 1
Martin 2BK34 1
Gates® 2BK34 1
TB Woods® 2BK341
Regal Rexnord (Browning®) 2BK34x1
Carlisle 2-BK-34-1
Masterdrive 2BK34-1
Maurey 2BK34 X 1
Jason Industrial 2BK34-1
Optibelt 2BK34-1

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 2BK34x1?

4L, 5L, A, and B section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 2BK34x1 replace the Dodge 2BK34 X 1 sheave?

Yes. Published interchange data crosses the 2BK34x1 directly to the Dodge 2BK34 X 1, as well as Martin 2BK34 1, Gates 2BK34 1, TB Woods 2BK341. Verify groove count, diameter, and bore or bushing before ordering.

Why does the 2BK34x1 list two pitch diameters?

Combination sheaves run more than one belt section, and each section rides at a different depth in the groove. The 2BK34x1 has a 2.8 in pitch diameter with A or 4L belts and 3.2 in with B or 5L belts.

Does the 2BK34x1 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 2BK34x1?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
