30-14P115-2517 Powerhouse® Timing Pulley, 3 Teeth, 14P Pitch


Price:
$ 295.46

Description

30-14P115-2517 Powerhouse® Timing Pulley, 3 Teeth, 14P Pitch

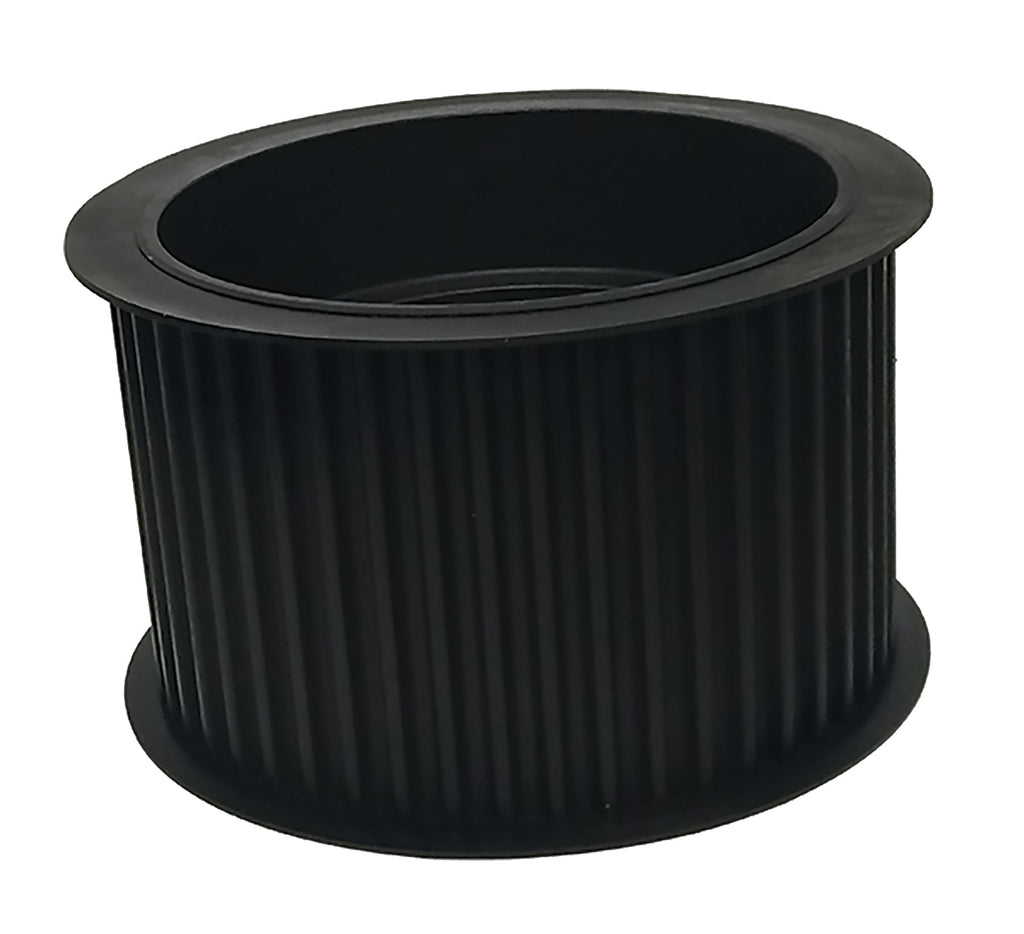

The 30-14P115-2517 is a 3-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 30-14P115-2517
Teeth 3
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 115mm
Pitch Diameter 5.2634 in
Outside Diameter 5.1534 in
Flange Diameter 5.763 in
Bore Accepts 2517 bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 12.386 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 30-14P115-2517 runs 14 mm Powerhouse® curvilinear belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 30-14P115-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P30-14M-115-2517
Martin P3014M115-2517
Gates® P30-14MGT-115
TB Woods® P3014M115TL
Regal Rexnord (Browning®) B3014M115TL
Ametric 14M30TL115.2517
Powerdrive 30-14P115-2517
Continental (ContiTech) P30-14M-115-2517

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 30-14P115-2517 pulley?

14 mm Powerhouse® curvilinear timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 30-14P115-2517 replace the Dodge P30-14M-115-2517?

Yes. Published interchange data crosses the 30-14P115-2517 directly to the Dodge P30-14M-115-2517, as well as Martin P3014M115-2517, Gates P30-14MGT-115, TB Woods P3014M115TL. Verify dimensions and bore before ordering.

Does the 30-14P115-2517 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 30-14P115-2517?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
