Description

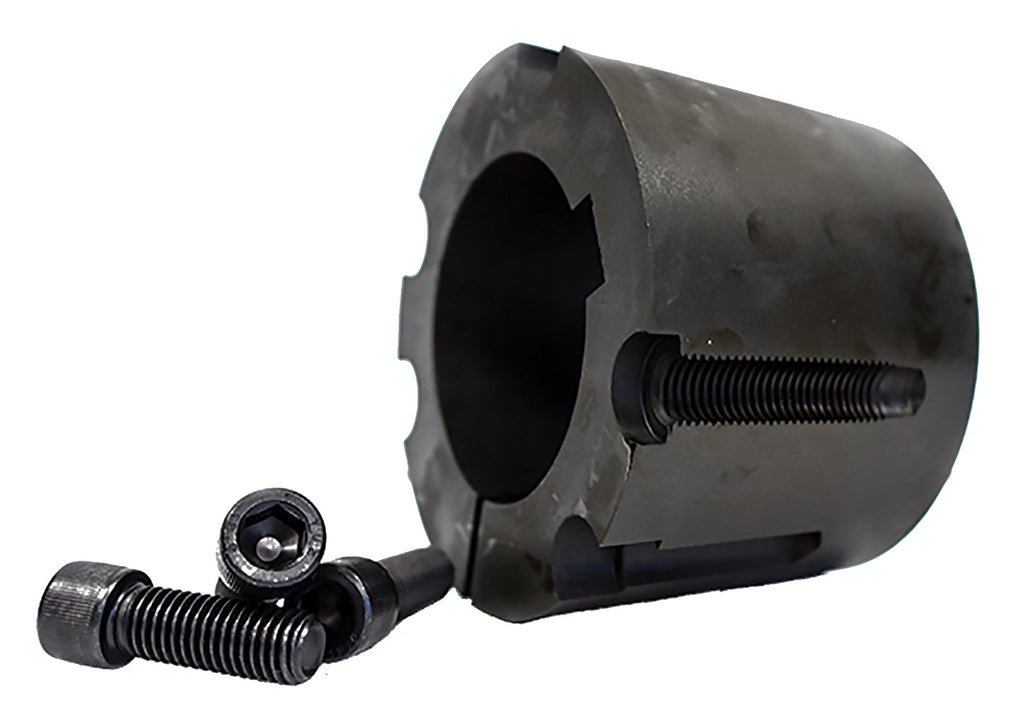

3030x2-1/8 Taper-Lock® Style Bushing, 2-1/8 in Bore, Steel
The 3030x2-1/8 is a 3030 series Taper-Lock style bushing with a 2-1/8 in bore, machined from solid steel with a black oxide finish. It mounts any 3030-bushed component, including sheaves, sprockets, and timing pulleys, to a 2-1/8 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.
Specifications
| Specification | Value |
|---|---|
| Part Number | 3030x2-1/8 |
| Bushing System | Taper-Lock® style |
| Series | 3030 |
| Bore | 2-1/8 in |
| Torque Capacity | 24000 in-lb |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 7.132 lb |
| Country of Origin | China |
| Bolt Circle | 4 |
Applications
- Mounting 3030-bushed V-belt sheaves, sprockets, and timing pulleys to 2-1/8 in shafts
- Drive component replacement where the bushing wears or the shaft size changes
- Conveyor, fan, pump, and general industrial drive assemblies
- Stocking standard bushing sizes for plant maintenance inventories
Cross Reference
The 3030x2-1/8 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 3030 X 2-1/8 |
| Martin | 3030 2 1/8 |
| Gates® | 3030 2.1/8 |
| TB Woods® | TL3030218 |
| US Tsubaki | 3030-2B |
| Regal Rexnord (Browning®) | 3030X2-1/8 |
| Masterdrive | 3030-2.1/8 |
| Optibelt | 3030-2 1/8 |
| Jason Industrial | 3030-2-1/8 |
| Grainger | 813AF1 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What does the 3030x2-1/8 bushing fit?
It fits any sheave, sprocket, pulley, or coupling machined for a 3030 series Taper-Lock style bushing, and mounts that component to a 2-1/8 in shaft. The 3030 size is standardized across manufacturers, so the component brand does not matter.
Does the 3030x2-1/8 replace the Dodge 3030 X 2-1/8 bushing?
Yes. The 3030 series dimensions are an industry standard, and published interchange data crosses the 3030x2-1/8 directly to the Dodge 3030 X 2-1/8, as well as Martin 3030 2 1/8, Gates 3030 2.1/8, TB Woods TL3030218. Verify bore size before ordering.
How does a Taper-Lock style bushing install?
The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.
Does the 3030x2-1/8 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
