Description

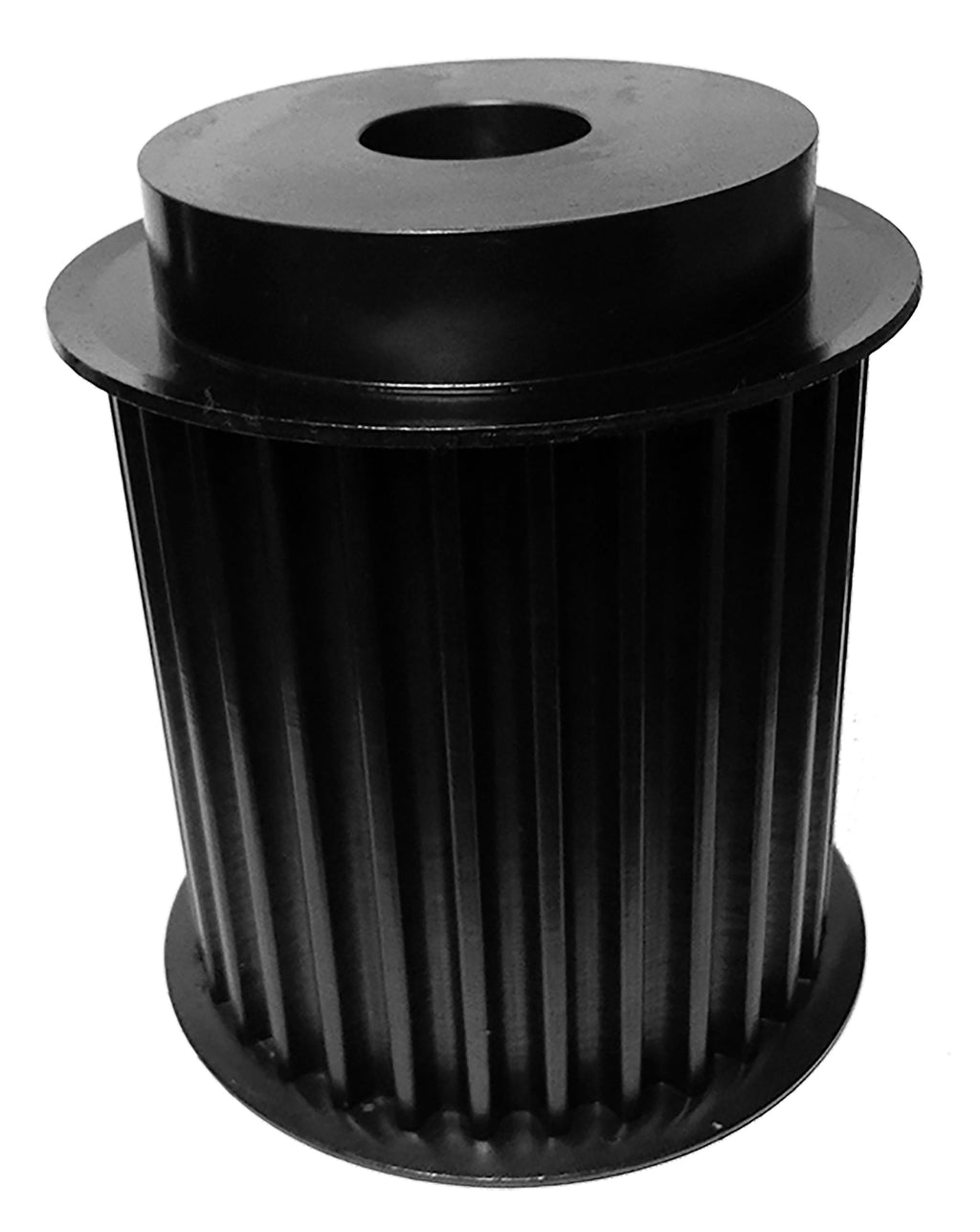

32-14M115-6FS13 Powerhouse® HTD Timing Pulley, 32 Teeth, 14M Pitch
The 32-14M115-6FS13 is a 32-tooth 14 mm HTD® compatible timing pulley with a 1-1/4 in minimum plain bore, machined from steel with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 32-14M115-6FS13 |
| Teeth | 32 |
| Pitch | 14 mm HTD® compatible |
| For Belt Width | 115mm |
| Pitch Diameter | 5.6143 in |
| Outside Diameter | 5.5043 in |
| Flange Diameter | 6.13 in |
| Bore | 1-1/4 in minimum plain bore |
| Face Width | 5.25 in |
| Overall Length | 5.25 in |
| Hub Diameter | 4.57 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 44.4 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The 32-14M115-6FS13 runs 14 mm HTD® compatible belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 32-14M115-6FS13 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | P3214M115-MPB |
| Gates® | P32-14M-115 |
| Regal Rexnord (Browning®) | B3214M115B |
| Ametric | 14M32X115 |
| Powerdrive | 32-14M115-6FS13 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 32-14M115-6FS13 pulley?
14 mm HTD® compatible timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 32-14M115-6FS13 replace the Martin P3214M115-MPB?
Yes. Published interchange data crosses the 32-14M115-6FS13 directly to the Martin P3214M115-MPB, as well as Gates P32-14M-115, Regal Rexnord B3214M115B, Ametric 14M32X115. Verify dimensions and bore before ordering.
Does the 32-14M115-6FS13 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 32-14M115-6FS13?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
