32-14P55-2517 Powerhouse® Timing Pulley, 32 Teeth, 14P Pitch


Price:
$ 226.15

Description

32-14P55-2517 Powerhouse® Timing Pulley, 32 Teeth, 14P Pitch

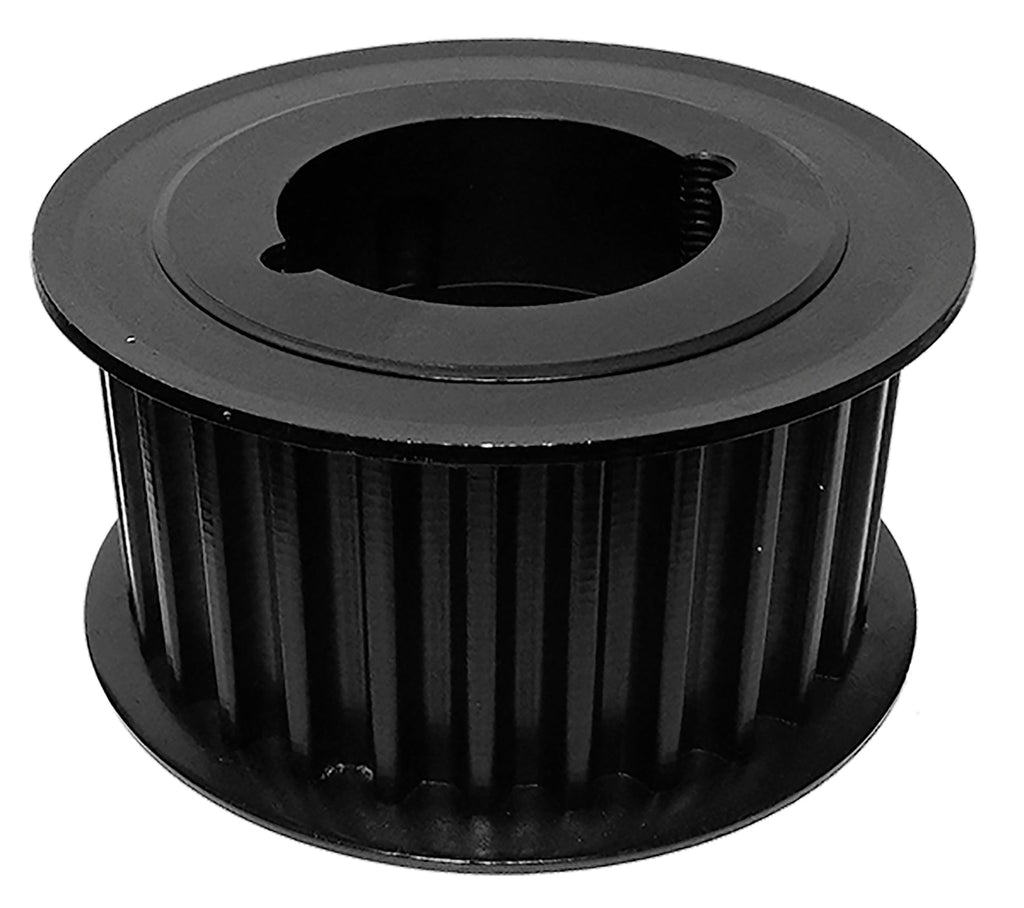

The 32-14P55-2517 is a 32-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 55mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 32-14P55-2517
Teeth 32
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 55mm
Pitch Diameter 5.6143 in
Outside Diameter 5.5043 in
Flange Diameter 6.124 in
Bore Accepts 2517 bushing (not included)
Face Width 2.75 in
Overall Length 2.75 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 8.918 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 32-14P55-2517 runs 14 mm Powerhouse® curvilinear belts in 55mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 32-14P55-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P32-14M-55-2517
Martin P3214M55-2517
Gates® P32-14MGT-55
TB Woods® P3214M55TL
Regal Rexnord (Browning®) B3214M55TL
Ametric 14M32TL55.2517
Grainger 809TJ0
Powerdrive 32-14P55-2517
Continental (ContiTech) P32-14M-55-2517

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 32-14P55-2517 pulley?

14 mm Powerhouse® curvilinear timing belts in 55mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 32-14P55-2517 replace the Dodge P32-14M-55-2517?

Yes. Published interchange data crosses the 32-14P55-2517 directly to the Dodge P32-14M-55-2517, as well as Martin P3214M55-2517, Gates P32-14MGT-55, TB Woods P3214M55TL. Verify dimensions and bore before ordering.

Does the 32-14P55-2517 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 32-14P55-2517?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
