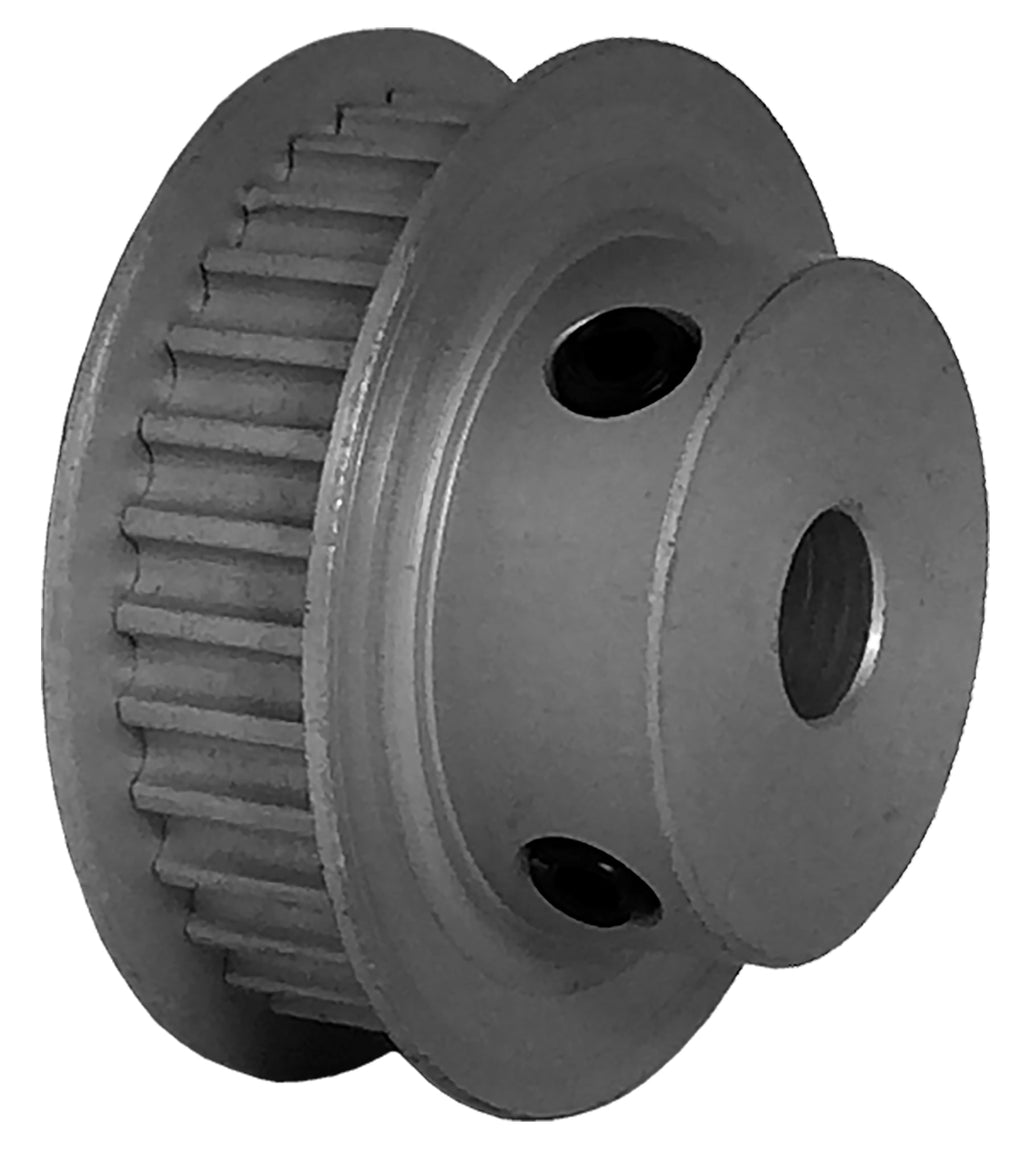

32-3P06-6FA3 Powerhouse® Timing Pulley, 32 Teeth, 3P Pitch, 1/4 in Bore


Price:
$ 11.12

Description

32-3P06-6FA3 Powerhouse® Timing Pulley, 32 Teeth, 3P Pitch, 1/4 in Bore

The 32-3P06-6FA3 is a 32-tooth 3 mm Powerhouse® curvilinear timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 6mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 32-3P06-6FA3
Teeth 32
Pitch 3 mm Powerhouse® curvilinear
For Belt Width 6mm
Pitch Diameter 1.2031 in
Outside Diameter 1.1731 in
Flange Diameter 1.323 in
Bore 1/4 in finished bore
Face Width 0.386 in
Overall Length 0.691 in
Hub Diameter 0.851 in
Construction Standard Hub
Set Screws 2 x 8-32
Flange Material Aluminum
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0575 lb
Country of Origin India

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 32-3P06-6FA3 runs 3 mm Powerhouse® curvilinear belts in 6mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 32-3P06-6FA3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Gates® 3MR-32S-06
Stock Drive Products (SDP/SI) A 6A53-032DF0608
Neuman 3MR-32S-06 6F
Powerdrive 32-3P06-6FA3

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 32-3P06-6FA3 pulley?

3 mm Powerhouse® curvilinear timing belts in 6mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 32-3P06-6FA3 replace the Gates 3MR-32S-06?

Yes. Published interchange data crosses the 32-3P06-6FA3 directly to the Gates 3MR-32S-06, as well as Stock Drive Products A 6A53-032DF0608, Neuman 3MR-32S-06 6F, Powerdrive 32-3P06-6FA3. Verify dimensions and bore before ordering.

Does the 32-3P06-6FA3 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 32-3P06-6FA3?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
