32-8MXF21x1 Powerhouse® MX Timing Pulley, 32 Teeth, 8MX Pitch, 1 in Bore


Price:
$ 178.73

Description

32-8MXF21x1 Powerhouse® MX Timing Pulley, 32 Teeth, 8MX Pitch, 1 in Bore

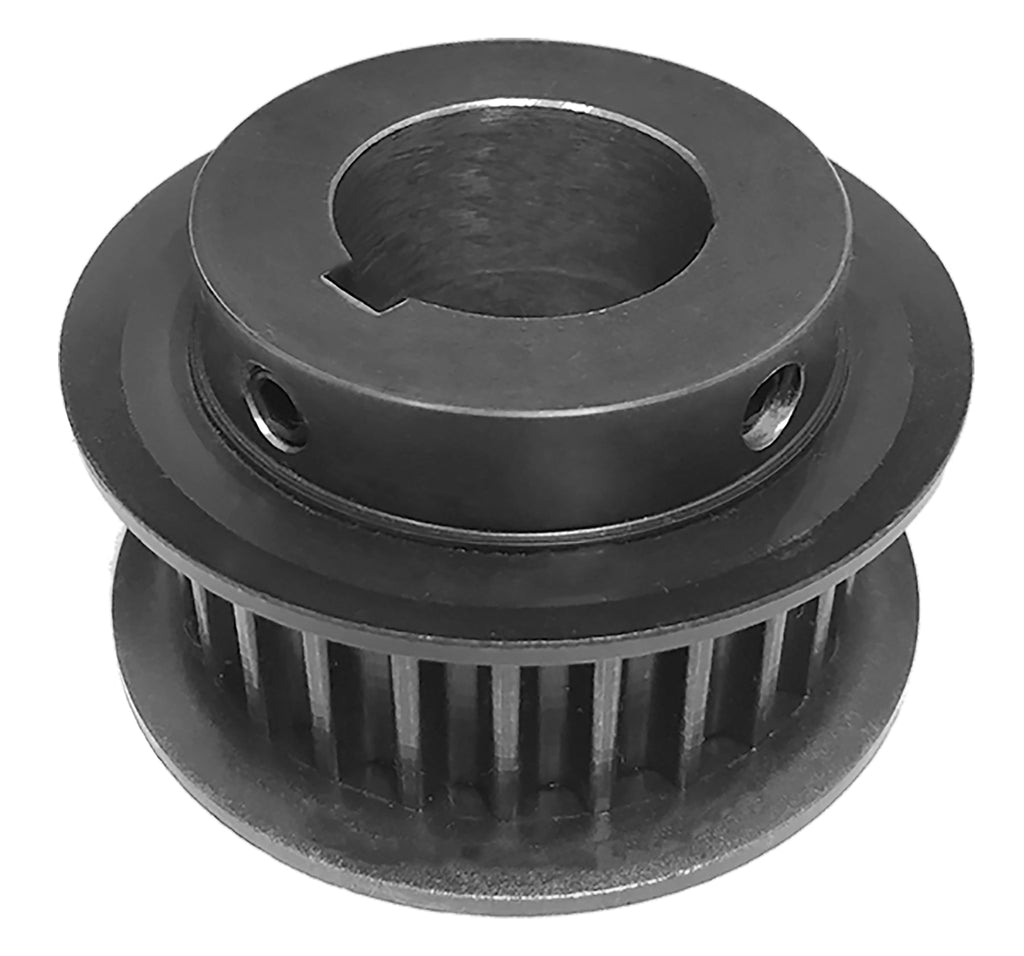

The 32-8MXF21x1 is a 32-tooth 8 mm MX high torque timing pulley with a 1 in finished bore, machined from ductile iron with a black oxide finish, built for 21mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 32-8MXF21x1
Teeth 32
Pitch 8 mm MX high torque
For Belt Width 21mm
Pitch Diameter 3.2082 in
Outside Diameter 3.1452 in
Flange Diameter 3.54 in
Bore 1 in finished bore
Face Width 1.203 in
Overall Length 1.766 in
Construction Standard Hub
Set Screws 2 x 5/16-18
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 1.8 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 32-8MXF21x1 runs 8 mm MX high torque belts in 21mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 32-8MXF21x1 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Powerdrive 32-8MXF21x1

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 32-8MXF21x1 pulley?

8 mm MX high torque timing belts in 21mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 32-8MXF21x1 replace the Powerdrive 32-8MXF21x1?

Yes. Published interchange data crosses the 32-8MXF21x1 directly to the Powerdrive 32-8MXF21x1. Verify dimensions and bore before ordering.
