Description

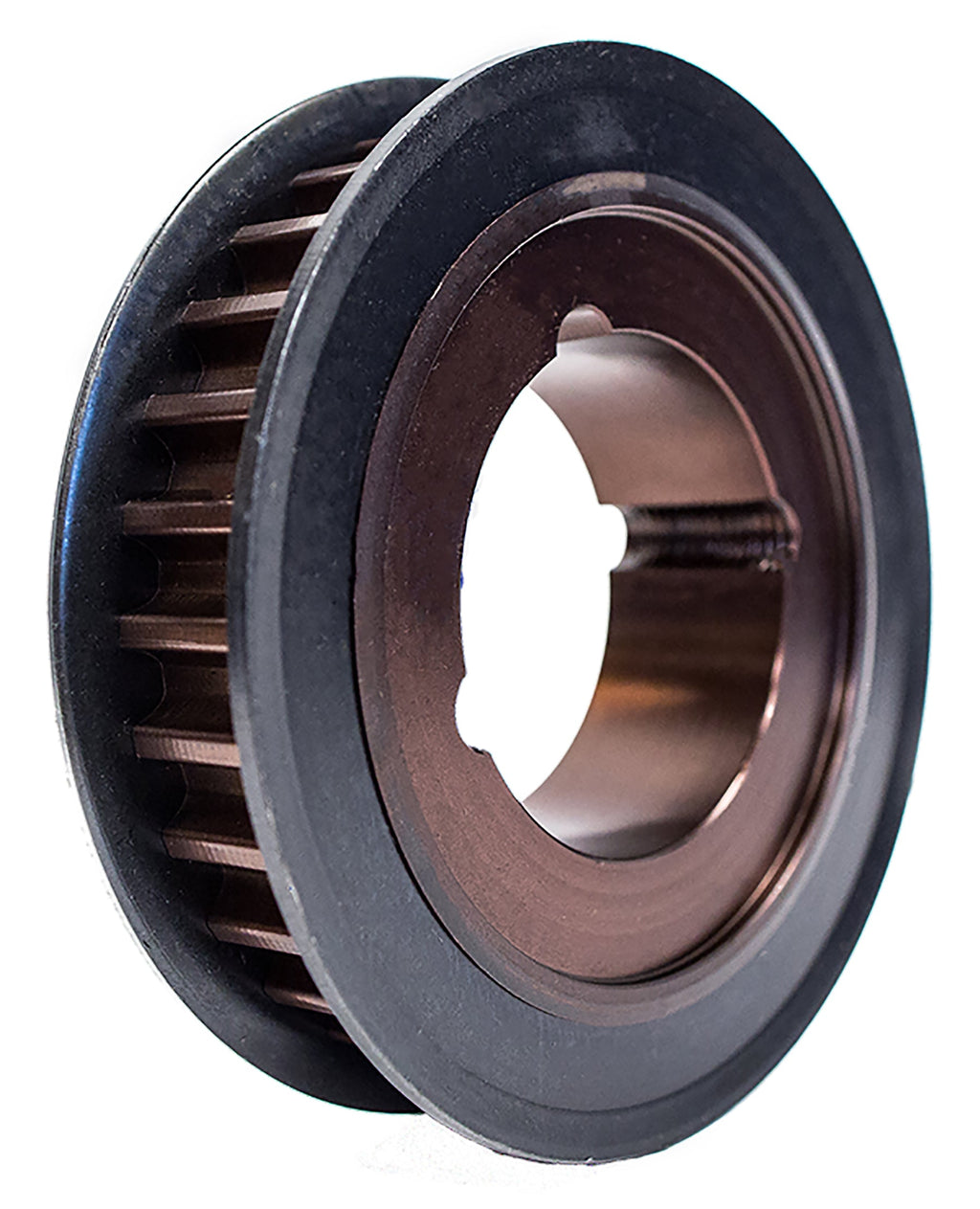

33-14MX20-2012 Powerhouse® MX Timing Pulley, 33 Teeth, 14MX Pitch
The 33-14MX20-2012 is a 33-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 33-14MX20-2012 |
| Teeth | 33 |
| Pitch | 14 mm MX high torque |
| For Belt Width | 2mm |
| Pitch Diameter | 5.7897 in |
| Outside Diameter | 5.6797 in |
| Flange Diameter | 6.465 in |
| Bore | Accepts 2012 bushing (not included) |
| Face Width | 1.359 in |
| Overall Length | 1.359 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 6.572 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 33-14MX20-2012 runs 14 mm MX high torque belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 33-14MX20-2012 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14MX-33S-20-2012 |
| Martin | 14MX33S20-2012 |
| Gates® | 14MX-33S-20 |
| TB Woods® | 14MPC33S20 |
| Regal Rexnord (Browning®) | B14MCS-33-20 |
| Mitsuboshi | 33-14MX125-2012 |
| Grainger | 809RR4 |
| Powerdrive | 33-14MX20-2012 |
| Continental (ContiTech) | 33G-14M-20-2012 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 33-14MX20-2012 pulley?
14 mm MX high torque timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 33-14MX20-2012 replace the Dodge 14MX-33S-20-2012?
Yes. Published interchange data crosses the 33-14MX20-2012 directly to the Dodge 14MX-33S-20-2012, as well as Martin 14MX33S20-2012, Gates 14MX-33S-20, TB Woods 14MPC33S20. Verify dimensions and bore before ordering.
