33V265JA V-Belt Sheave, 3 Grooves, 3V Section, 2.65 in OD, JA Bushing


Price:
$ 48.09

Description

33V265JA V-Belt Sheave, 3 Grooves, 3V Section, 2.65 in OD, JA Bushing

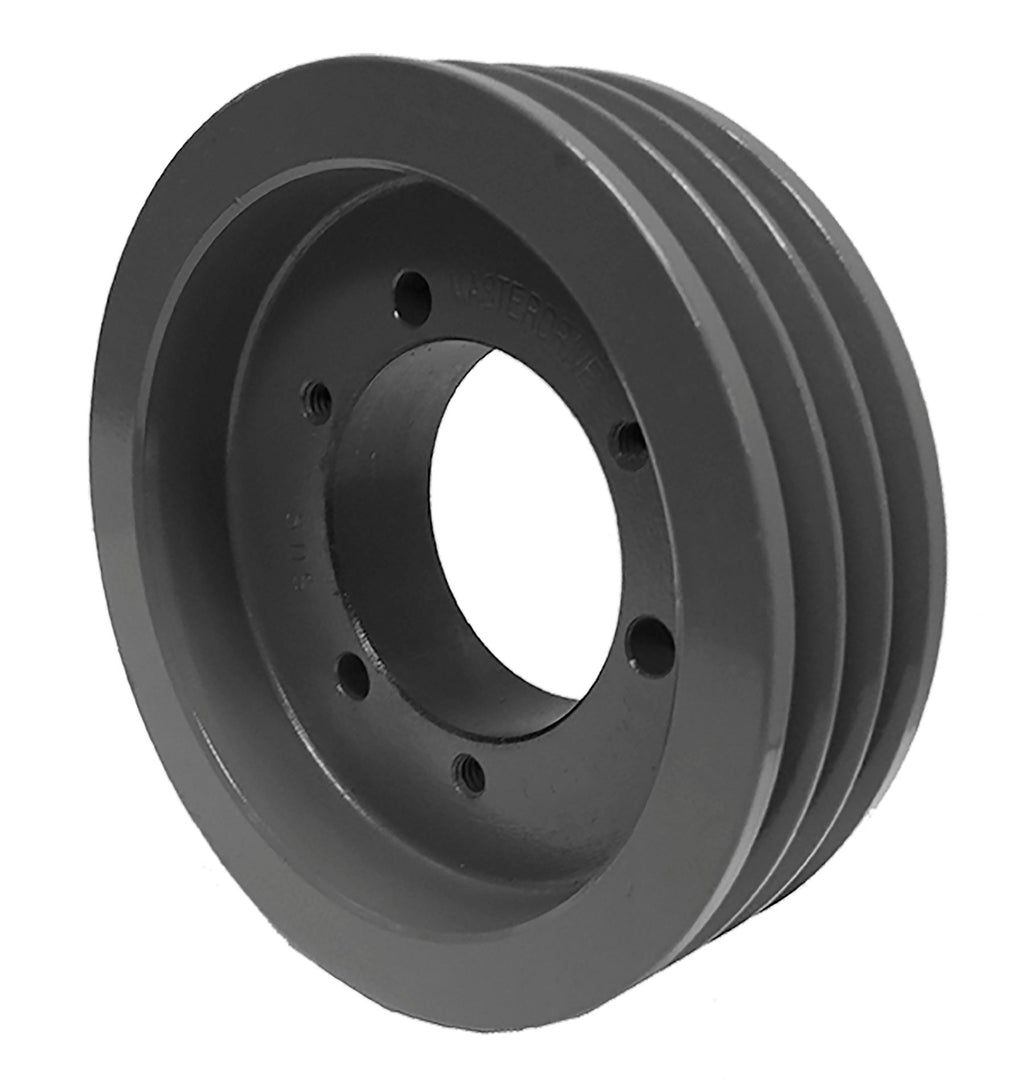

The 33V265JA is a 3-groove 3V section narrow wedge V-belt sheave with a 2.65 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard JA QD® style bushing, sold separately, sized to your shaft. It runs 3V and 3VX narrow wedge V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 33V265JA
Belt Section 3V
Grooves 3
Outside Diameter 2.65 in
Pitch Diameter 2.6 in
Face Width 1.5 in
Bushing JA series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 1 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 33V265JA interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D3-3V265
Martin 3 3V 265 JA
Gates® QD3/3V2.65
TB Woods® 3V25653
Regal Rexnord (Browning®) 33V265JA
Carlisle 3-3V-265-JA
Masterdrive 3/3V265JA
Maurey 33V2.65-JA
Jason Industrial 3/3V265JA
Optibelt QD 3V265/3 JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 33V265JA?

3V and 3VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 33V265JA replace the Dodge D3-3V265 sheave?

Yes. Published interchange data crosses the 33V265JA directly to the Dodge D3-3V265, as well as Martin 3 3V 265 JA, Gates QD3/3V2.65, TB Woods 3V25653. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 33V265JA use?

A JA series QD style bushing, sold separately. JA is an industry-standard bushing size, so any manufacturer's standard JA bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 33V265JA ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 33V265JA?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
