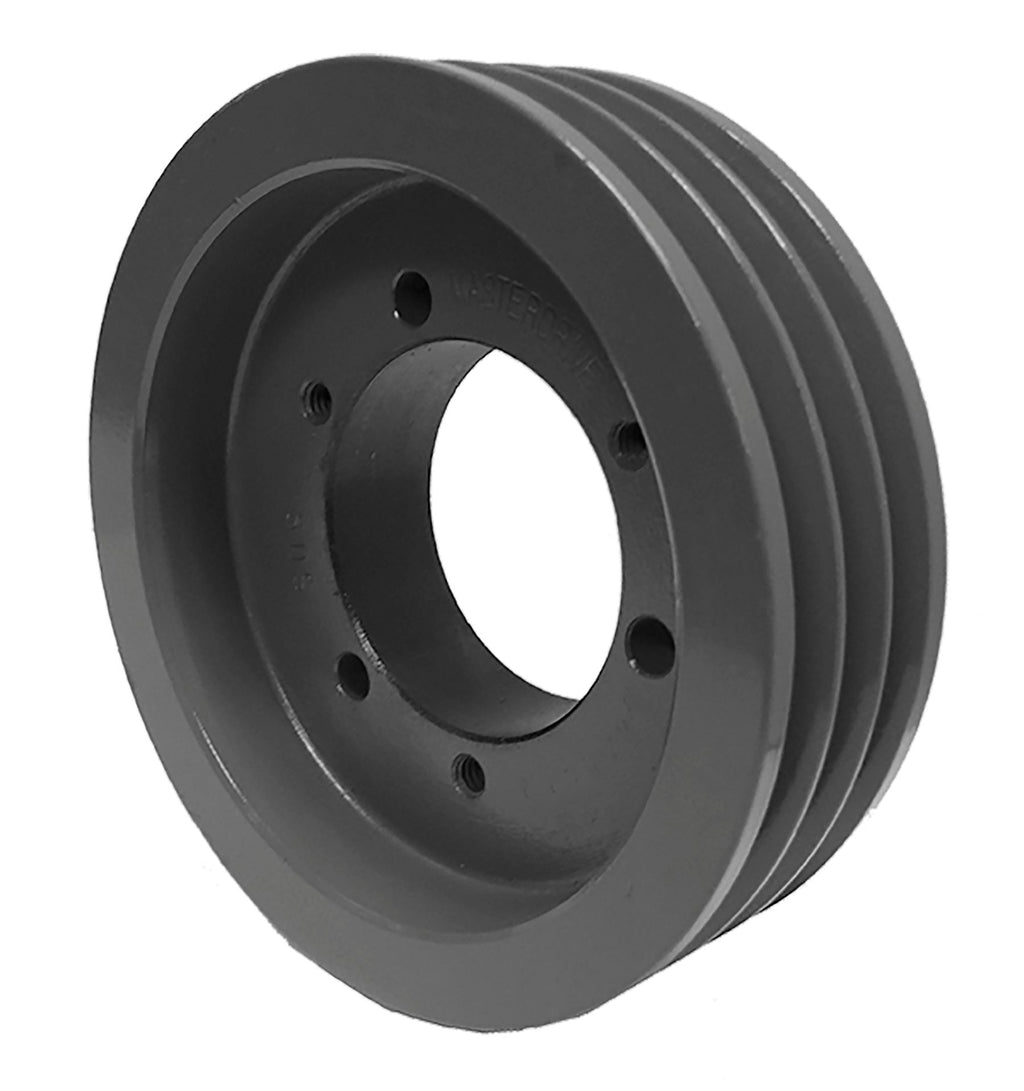

33V560SDS V-Belt Sheave, 3 Grooves, 3V Section, 5.6 in OD, SDS Bushing


Price:
$ 83.50

Description

33V560SDS V-Belt Sheave, 3 Grooves, 3V Section, 5.6 in OD, SDS Bushing

The 33V560SDS is a 3-groove 3V section narrow wedge V-belt sheave with a 5.6 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard SDS QD® style bushing, sold separately, sized to your shaft. It runs 3V and 3VX narrow wedge V-belts.

Specifications

Specification Value
Part Number 33V560SDS
Belt Section 3V
Grooves 3
Outside Diameter 5.6 in
Pitch Diameter 5.55 in
Face Width 1.5 in
Bushing SDS series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 4.9 lb
Country of Origin China

Applications

  • Multi-belt narrow wedge drives on fans, blowers, and pumps
  • HVAC air handlers and cooling tower drives
  • Compressors and industrial process equipment
  • Replacing worn sheaves on existing drives without changing belts or bushings

Cross Reference

The 33V560SDS interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® D3-3V56
Martin 3 3V 560 SDS
Gates® QD3/3V5.60
TB Woods® 3V563
Regal Rexnord (Browning®) 33V560SDS
Carlisle 3-3V-560-SDS
Masterdrive 3/3V560SDS
Maurey 33V5.6-SDS
Jason Industrial 3/3V560SDS
Optibelt QD 3V560/3 SDS

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the 33V560SDS?

3V and 3VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the 33V560SDS replace the Dodge D3-3V56 sheave?

Yes. Published interchange data crosses the 33V560SDS directly to the Dodge D3-3V56, as well as Martin 3 3V 560 SDS, Gates QD3/3V5.60, TB Woods 3V563. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the 33V560SDS use?

A SDS series QD style bushing, sold separately. SDS is an industry-standard bushing size, so any manufacturer's standard SDS bushing fits. Order the bushing bore that matches your shaft diameter.

Does the 33V560SDS ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 33V560SDS?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
