34-3P06-6A3 Powerhouse® Timing Pulley, 34 Teeth, 3P Pitch, 1/4 in Bore


Price:
$ 19.04

Description

34-3P06-6A3 Powerhouse® Timing Pulley, 34 Teeth, 3P Pitch, 1/4 in Bore

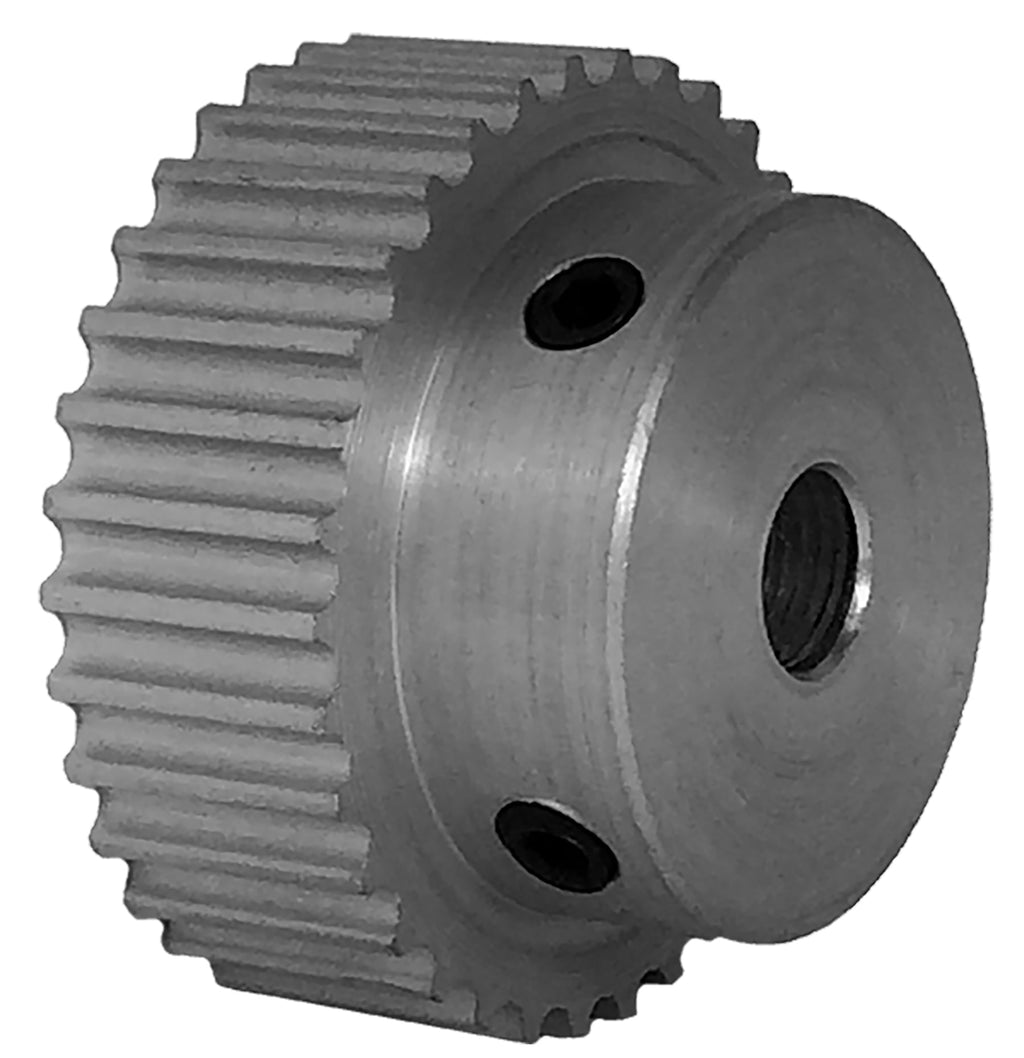

The 34-3P06-6A3 is a 34-tooth 3 mm Powerhouse® curvilinear timing pulley with a 1/4 in finished bore, machined from aluminum with a clear anodized finish, built for 6mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 34-3P06-6A3
Teeth 34
Pitch 3 mm Powerhouse® curvilinear
For Belt Width 6mm
Pitch Diameter 1.2783 in
Outside Diameter 1.2483 in
Bore 1/4 in finished bore
Face Width 0.407 in
Overall Length 0.713 in
Hub Diameter 0.921 in
Construction Standard Hub
Set Screws 2 x 8-32
Material Aluminum (no sintered or powdered metal)
Finish Clear Anodized
Weight 0.0664 lb
Country of Origin India

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 34-3P06-6A3 runs 3 mm Powerhouse® curvilinear belts in 6mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 34-3P06-6A3 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A53-034NF0608
Neuman 3MR-34S-06 6
Powerdrive 34-3P06-6A3

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 34-3P06-6A3 pulley?

3 mm Powerhouse® curvilinear timing belts in 6mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 34-3P06-6A3 replace the Stock Drive Products A 6A53-034NF0608?

Yes. Published interchange data crosses the 34-3P06-6A3 directly to the Stock Drive Products A 6A53-034NF0608, as well as Neuman 3MR-34S-06 6, Powerdrive 34-3P06-6A3. Verify dimensions and bore before ordering.

Does the 34-3P06-6A3 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 34-3P06-6A3?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
