Description

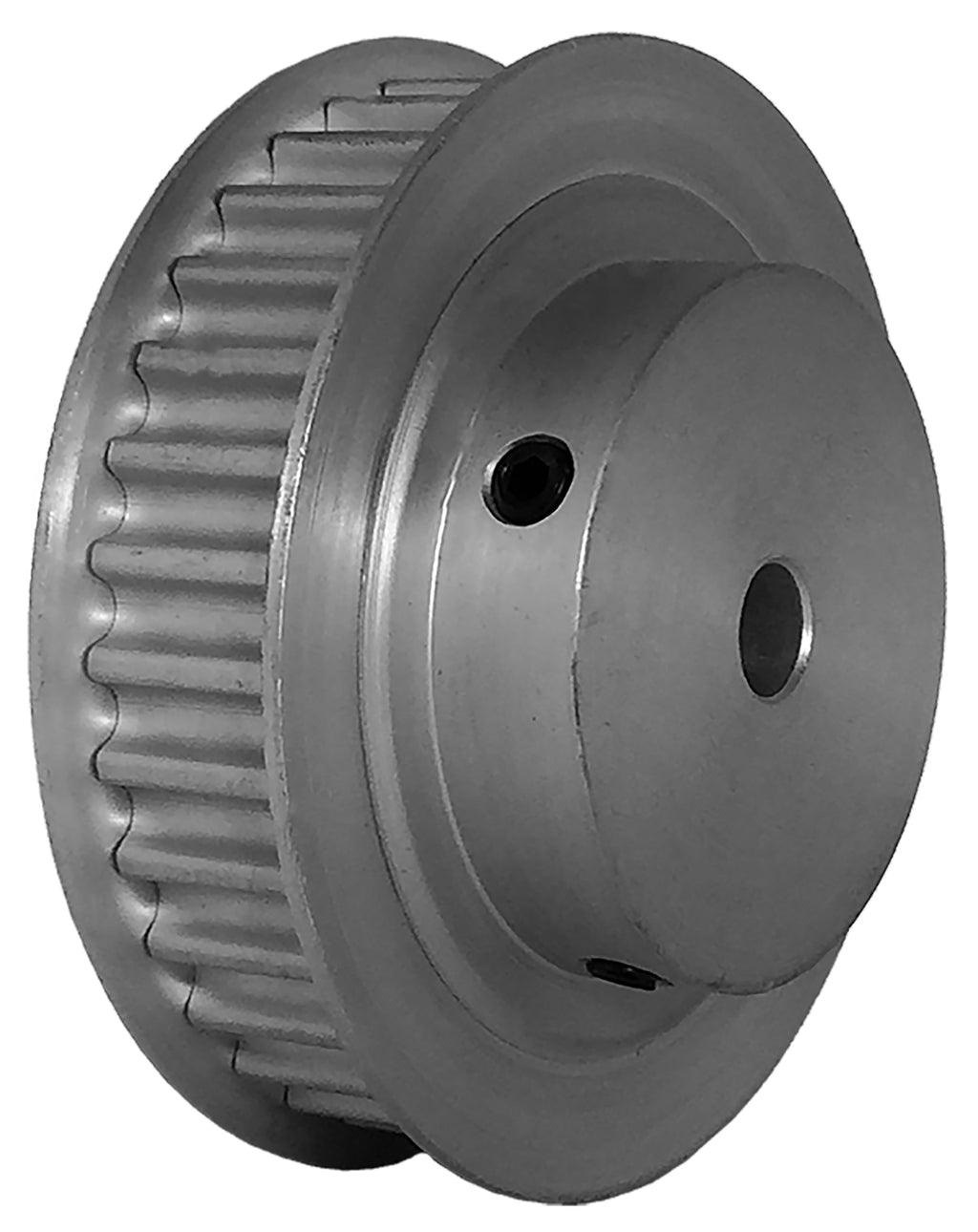

34-5P09-6FA6 Powerhouse® Timing Pulley, 34 Teeth, 5P Pitch, 1/2 in Bore
The 34-5P09-6FA6 is a 34-tooth 5 mm Powerhouse® curvilinear timing pulley with a 1/2 in finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 34-5P09-6FA6 |
| Teeth | 34 |
| Pitch | 5 mm Powerhouse® curvilinear |
| For Belt Width | 9mm |
| Pitch Diameter | 2.1304 in |
| Outside Diameter | 2.085 in |
| Flange Diameter | 2.25 in |
| Bore | 1/2 in finished bore |
| Face Width | 0.546 in |
| Overall Length | 0.859 in |
| Hub Diameter | 1.375 in |
| Construction | Standard Hub |
| Set Screws | 2 x 8-32 |
| Flange Material | Aluminum |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.245 lb |
| Country of Origin | India |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 34-5P09-6FA6 runs 5 mm Powerhouse® curvilinear belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
Match the specifications above, including size, pitch or section, and bore, to cross-reference this part against other manufacturers.
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 34-5P09-6FA6 pulley?
5 mm Powerhouse® curvilinear timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 34-5P09-6FA6 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 34-5P09-6FA6?
Houston warehouse, same-day shipping on stock items.
