34-8MX12-1610SS Powerhouse® MX Timing Pulley, 34 Teeth, 8MX Pitch


Price:
$ 169.71

Description

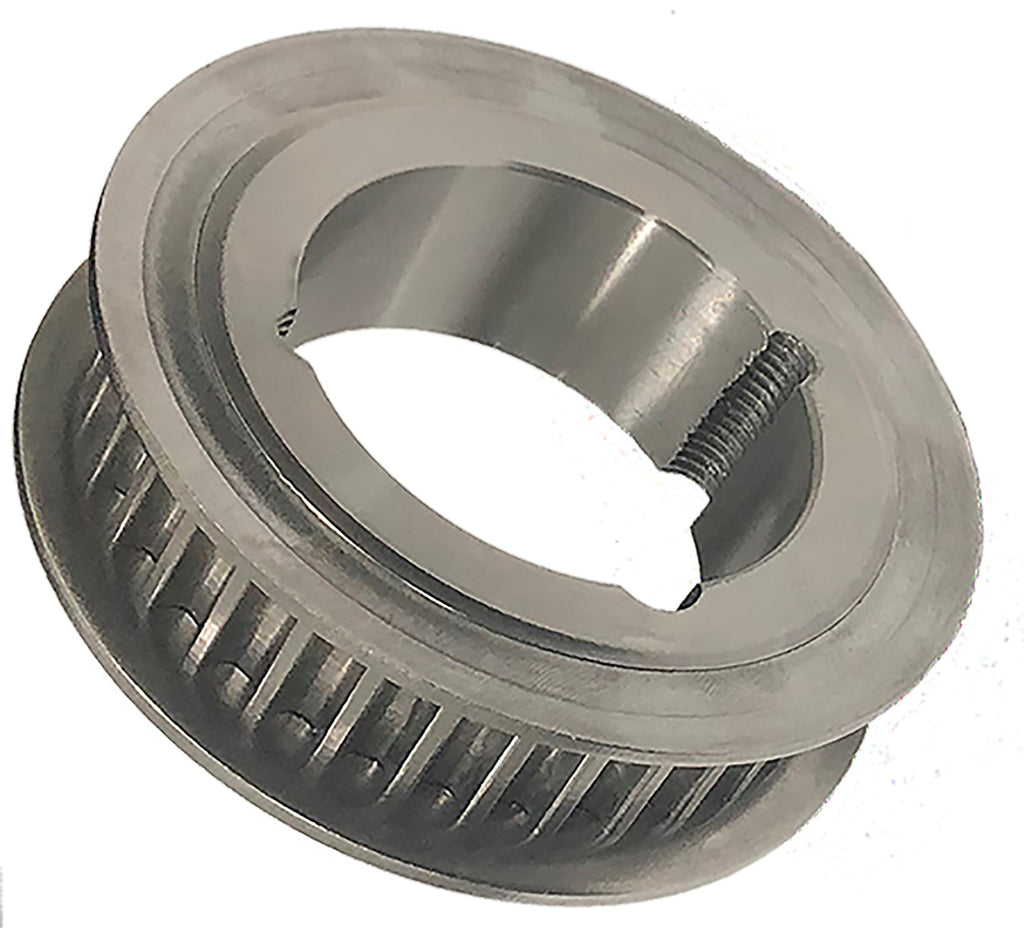

34-8MX12-1610SS Powerhouse® MX Timing Pulley, 34 Teeth, 8MX Pitch

The 34-8MX12-1610SS is a 34-tooth 8 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from stainless steel, built for 12mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 34-8MX12-1610SS
Teeth 34
Pitch 8 mm MX high torque
For Belt Width 12mm
Pitch Diameter 3.4087 in
Outside Diameter 3.3457 in
Flange Diameter 3.819 in
Bore Accepts 1610 bushing (not included)
Face Width 1 in
Overall Length 1 in
Flange Material Stainless Steel
Material Stainless Steel (no sintered or powdered metal)
Weight 1.3168 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 34-8MX12-1610SS runs 8 mm MX high torque belts in 12mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 34-8MX12-1610SS interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Gates® SS 8MX-34S-12 1610
Powerdrive 34-8MX12-1610SS
Continental (ContiTech) SS 34G-8M-12-1610 STAINLESS STEEL QTE

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 34-8MX12-1610SS pulley?

8 mm MX high torque timing belts in 12mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 34-8MX12-1610SS replace the Gates SS 8MX-34S-12 1610?

Yes. Published interchange data crosses the 34-8MX12-1610SS directly to the Gates SS 8MX-34S-12 1610, as well as Powerdrive 34-8MX12-1610SS, Continental SS 34G-8M-12-1610 STAINLESS STEEL QTE. Verify dimensions and bore before ordering.

Does the 34-8MX12-1610SS ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
