34XXHR200 Timing Pulley, 34 Teeth, XXH Pitch


Price:
$ 937.83

Description

34XXHR200 Timing Pulley, 34 Teeth, XXH Pitch

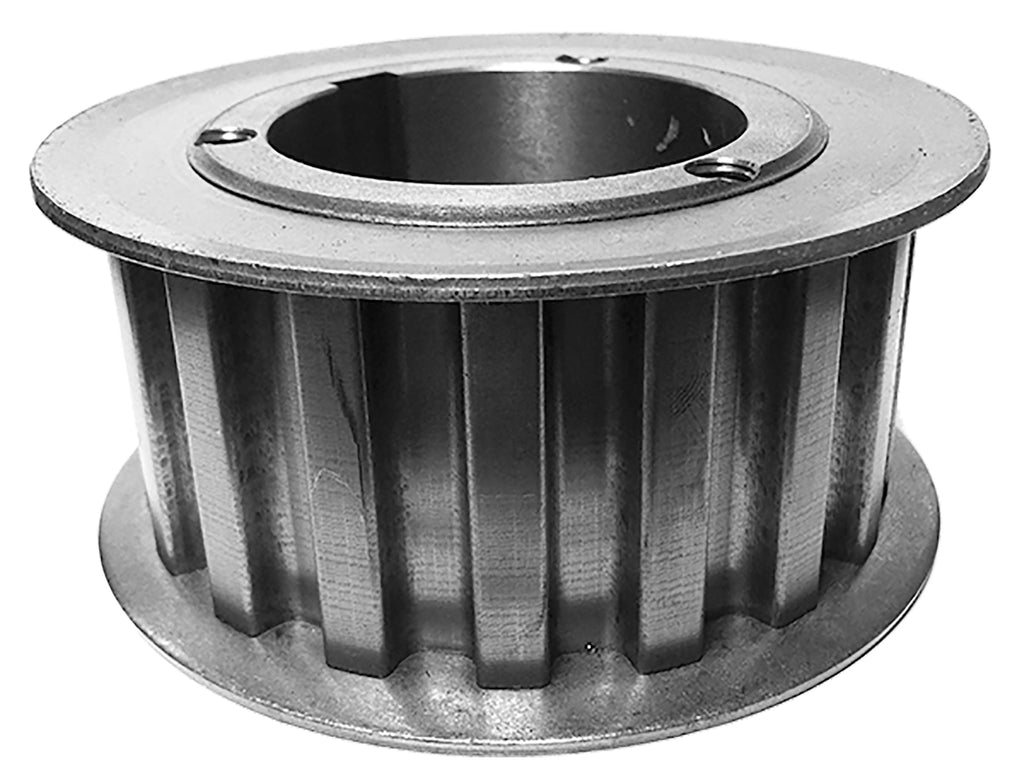

The 34XXHR200 is a 34-tooth XXH (1.250 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 12 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 34XXHR200
Teeth 34
Pitch XXH (1.250 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 13.5282 in
Outside Diameter 13.4082 in
Flange Diameter 14.25 in
Bore Accepts R1 bushing (not included)
Face Width 2.625 in
Overall Length 3.156 in
Construction Split Taper Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Weight 40.3 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 34XXHR200 runs XXH (1.250 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 34XXHR200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 34XXHR200
Powerdrive 34XXHR200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 34XXHR200 pulley?

XXH (1.250 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 34XXHR200 replace the Regal Rexnord 34XXHR200?

Yes. Published interchange data crosses the 34XXHR200 directly to the Regal Rexnord 34XXHR200, as well as Powerdrive 34XXHR200. Verify dimensions and bore before ordering.

Does the 34XXHR200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 34XXHR200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
