35-14MX20-2012 Powerhouse® MX Timing Pulley, 35 Teeth, 14MX Pitch


Price:
$ 210.78

Description

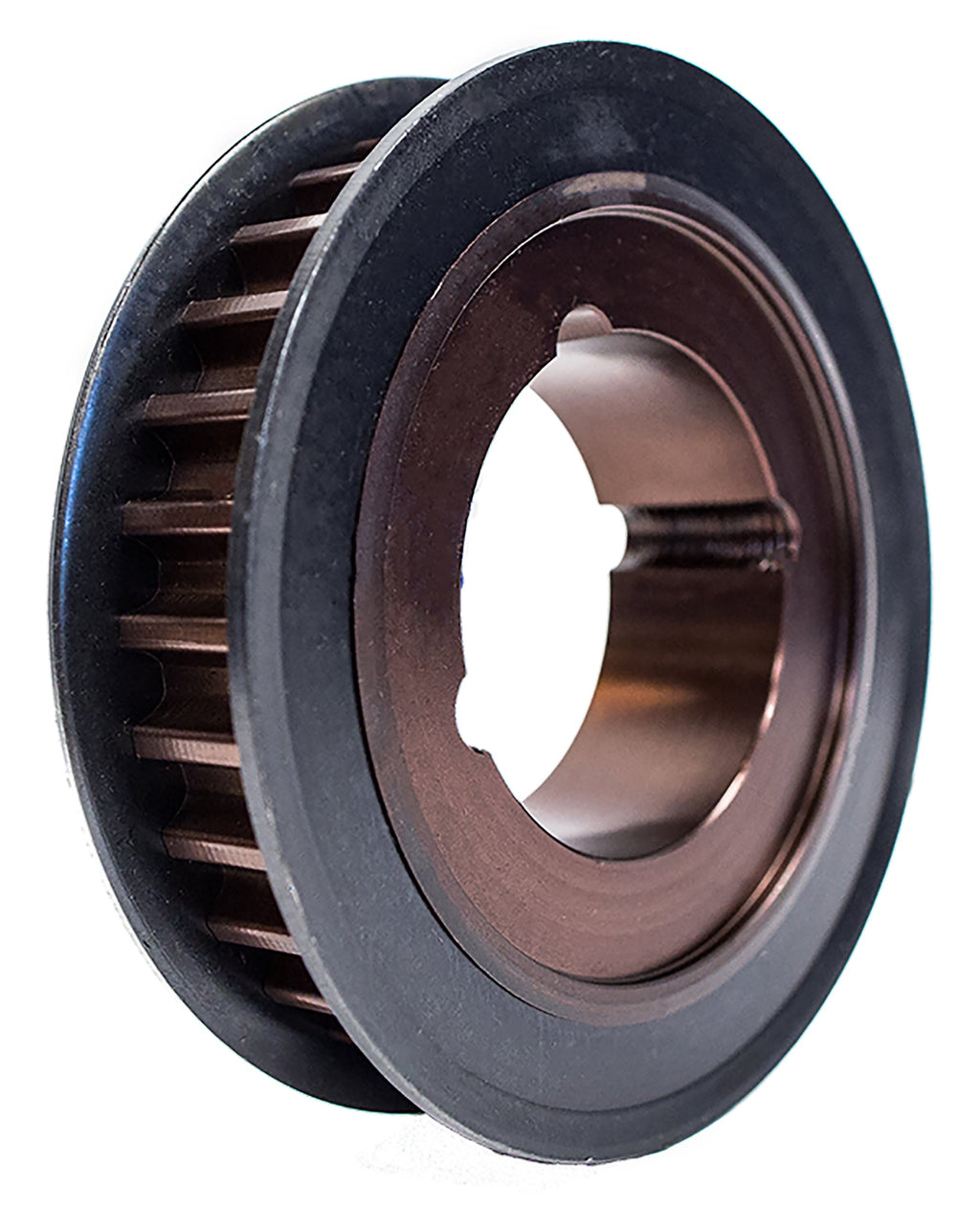

35-14MX20-2012 Powerhouse® MX Timing Pulley, 35 Teeth, 14MX Pitch

The 35-14MX20-2012 is a 35-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 35-14MX20-2012
Teeth 35
Pitch 14 mm MX high torque
For Belt Width 2mm
Pitch Diameter 6.1406 in
Outside Diameter 6.0306 in
Flange Diameter 6.816 in
Bore Accepts 2012 bushing (not included)
Face Width 1.359 in
Overall Length 1.359 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 7.5 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The 35-14MX20-2012 runs 14 mm MX high torque belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 35-14MX20-2012 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-35S-20-2012
Martin 14MX35S20-2012
Gates® 14MX-35S-20
TB Woods® 14MPC35S20
Regal Rexnord (Browning®) B14MCS-35-20
Mitsuboshi 35-14MX20-2012
Grainger 809RU0
Powerdrive 35-14MX20-2012
Continental (ContiTech) 35G-14M-20-2012

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 35-14MX20-2012 pulley?

14 mm MX high torque timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 35-14MX20-2012 replace the Dodge 14MX-35S-20-2012?

Yes. Published interchange data crosses the 35-14MX20-2012 directly to the Dodge 14MX-35S-20-2012, as well as Martin 14MX35S20-2012, Gates 14MX-35S-20, TB Woods 14MPC35S20. Verify dimensions and bore before ordering.

Does the 35-14MX20-2012 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 35-14MX20-2012?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
